NSN 3110-00-279-4185 ABR4F5012WL, ABR4F5012WP, ST4M122W4F48
Product Details | ROD END BALL BEARING
3110-00-279-4185 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: ABR4F5012WL, ABR4F5012WP, ST4M122W4F48, ST4M122W4F4-8, REP4F48FS464, REP4F4-8FS464, 10107373 , 3110-00-279-4185, 00-279-4185, 3110002794185, 002794185
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 12 AUG 1973 | 00-279-4185 | 00049 ( BEARING, BALL, ROD END ) |

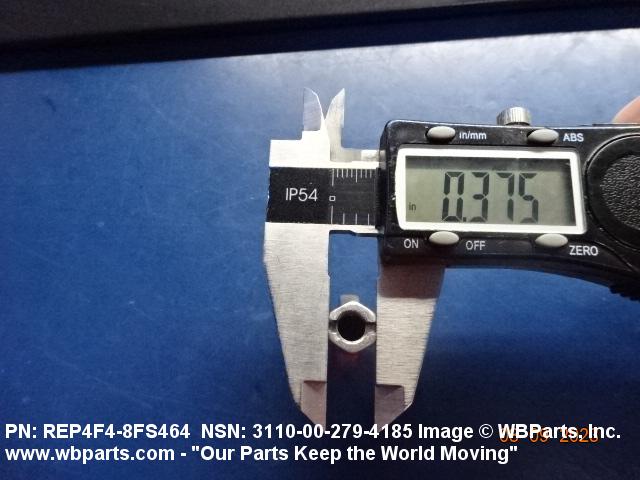

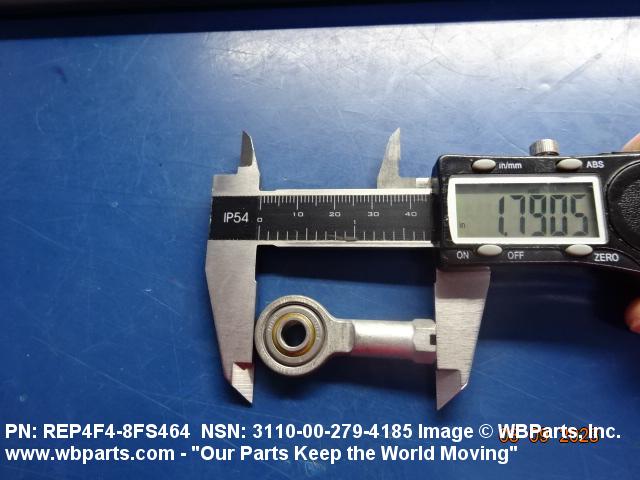

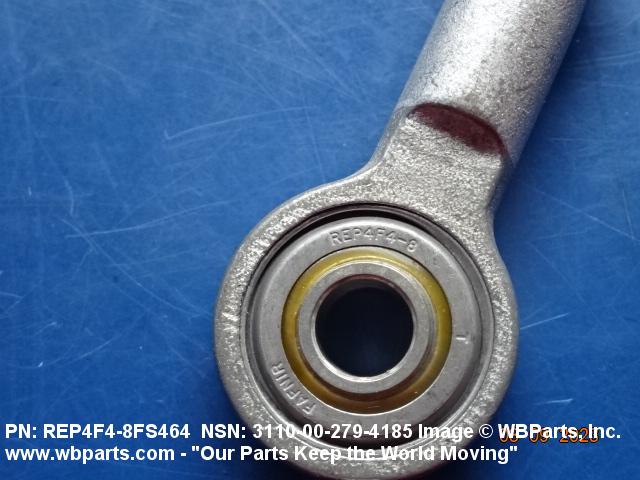

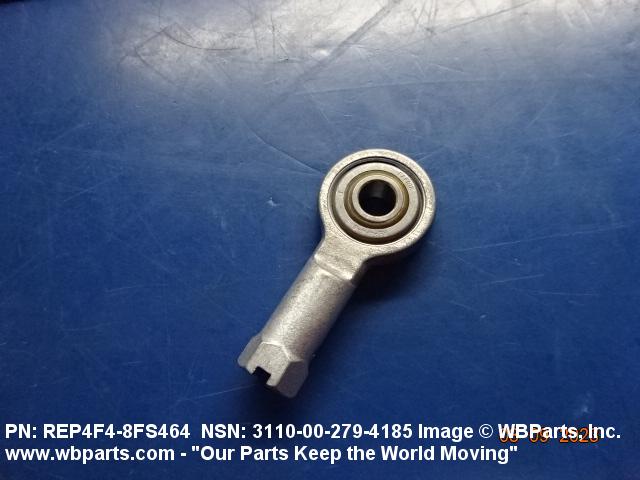

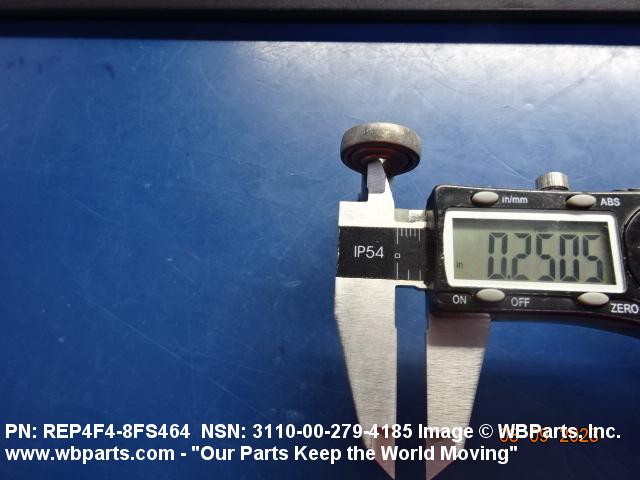

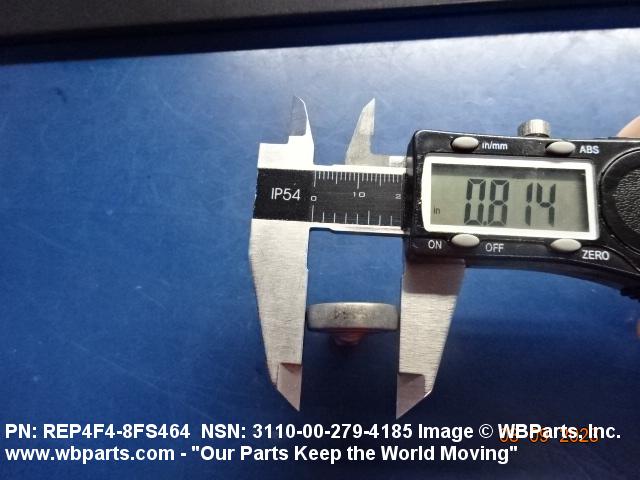

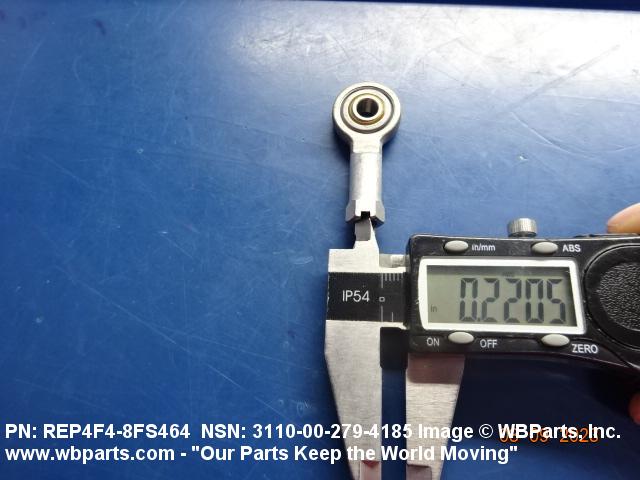

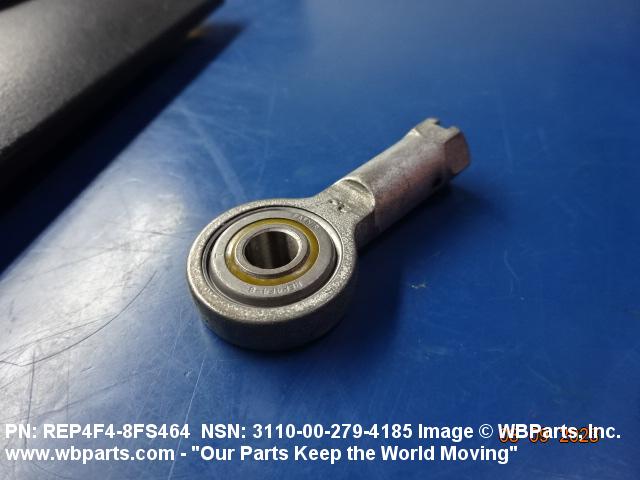

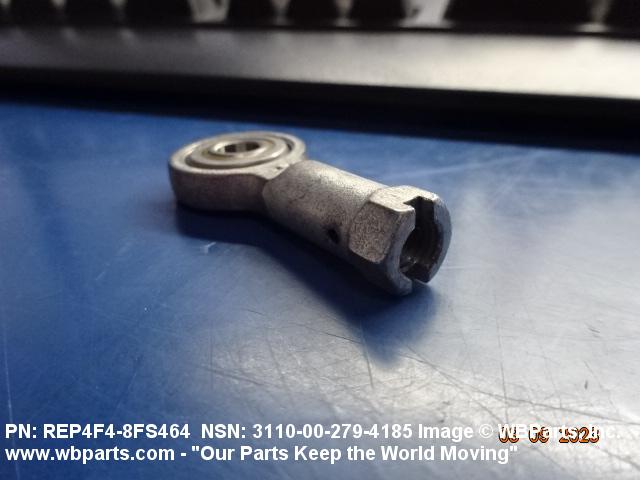

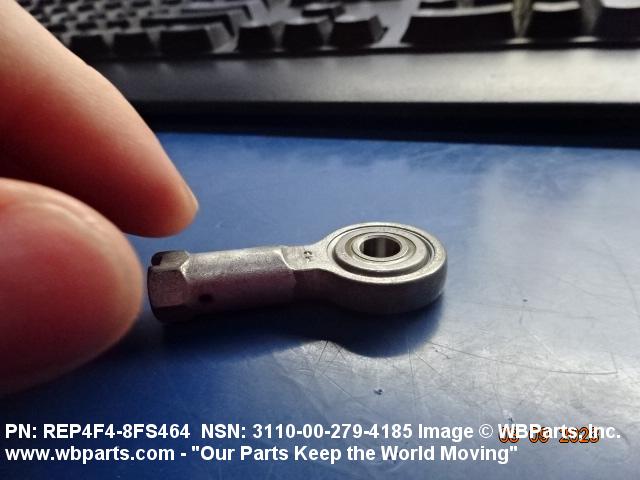

Drawings & Photos | NSN 3110-00-279-4185
Demand History | NSN 3110-00-279-4185
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-279-4185 | 2023-03-60 | 1 | United States |
| 3110-00-279-4185 | 2023-02-48 | 1 | US |
| 3110-00-279-4185 | 2022-11-306 | 1 | us |
| 3110-00-279-4185 | 2021-05-139 | 1 | us |
| 3110-00-279-4185 | 2020-06-177 | 15 | SA |
| ST4M122W4F48 | 2019-06-168 | 8 | US |
| 3110-00-279-4185 | 2019-01-22 | 1 | DIBBS-RFPs |
| 3110-00-279-4185 | 2019-01-02 | 166 | DIBBS |
| 3110-00-279-4185 | 2018-12-359 | 166 | DIBBS |
| 3110-00-279-4185 | 2018-12-336 | 50 | DIBBS |
| 3110-00-279-4185 | 2018-11-319 | 1 | DIBBS-RFPs |
| 3110-00-279-4185 | 2018-05-141 | 96 | UK |
| 3110-00-279-4185 | 2018-04-114 | 90 | UK |
| 3110-00-279-4185 | 2015-12-341 | 4 | United States |
| 3110-00-279-4185 | 2014-01-10 | 1 | DIBBS-RFPs |
| ABR4F5012WL | 2008-10-283 | 12 | US |
Cross Reference | NSN 3110-00-279-4185
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ABR4F-5012W(L) | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| ABR4F-5012W(P) | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
| REP4F4-8FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4F4-8FS464 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| ST4M122W4F4-8 | 15860 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA ASTRO DIVISION |
| ST4M122W4F4-8 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| ST4M122W4F4-8 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-279-4185
Related Products | NSN 3110-00-279-4185
Technical Data | NSN 3110-00-279-4185
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE OR STEEL CORROSION RESISTING SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE BALL 66 FED STD SINGLE MATERIAL RESPONSE INNER RING 66 FED STD SINGLE MATERIAL RESPONSE ROD END BODY AMS 3652 ASSN STD 1ST MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | 80 PCT FULL OF SPECIFIED GREASE |
Restrictions/Controls & Freight Information | NSN 3110-00-279-4185
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-279-4185
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
