Product Details | AIRFRAME ROLLER BEARING

3110-00-275-0110 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened ROLLER, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, ROLLER, CYLINDRICAL.

Part Alternates: DSRP8, DSRP8FS160, DSRP8FS428, DSRP8MILG3278, GB520P8, 3110-00-275-0110, 00-275-0110, 3110002750110, 002750110

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 01 JAN 1963 00-275-0110

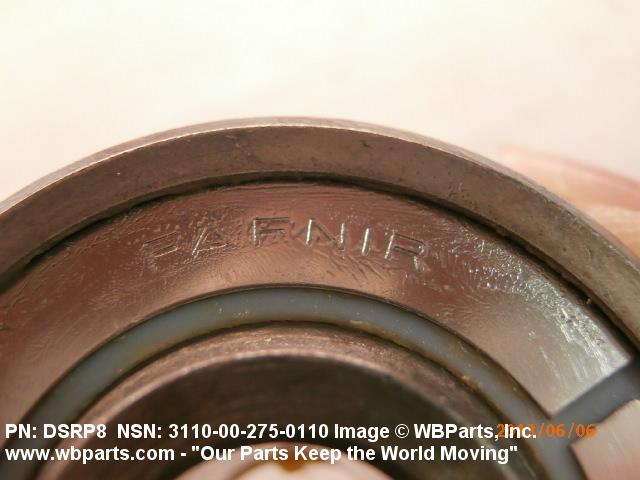

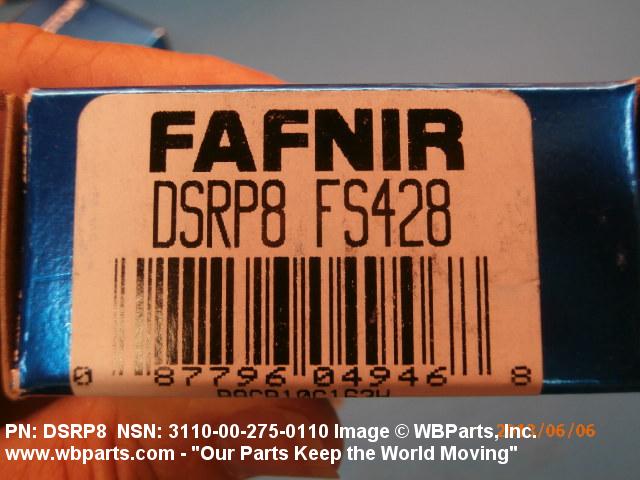

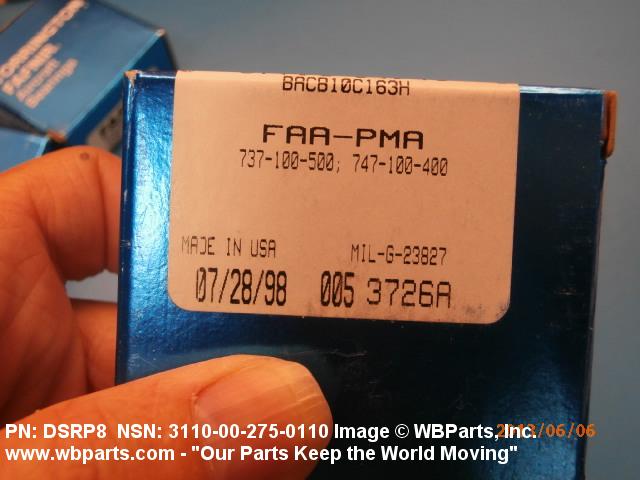

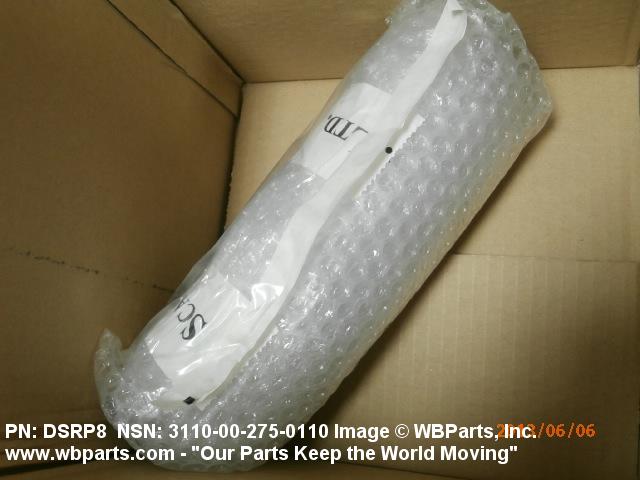

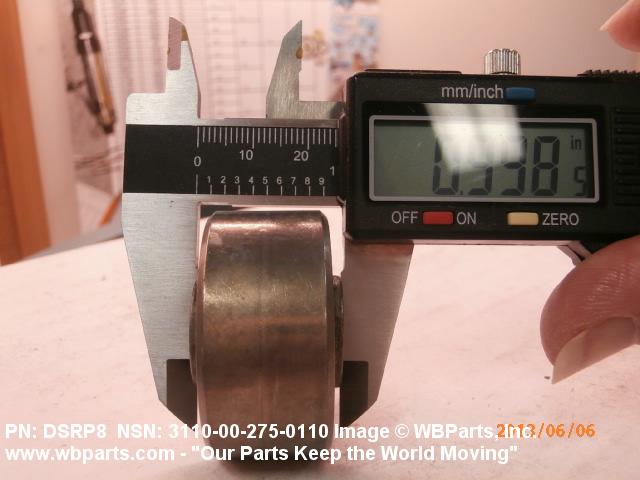

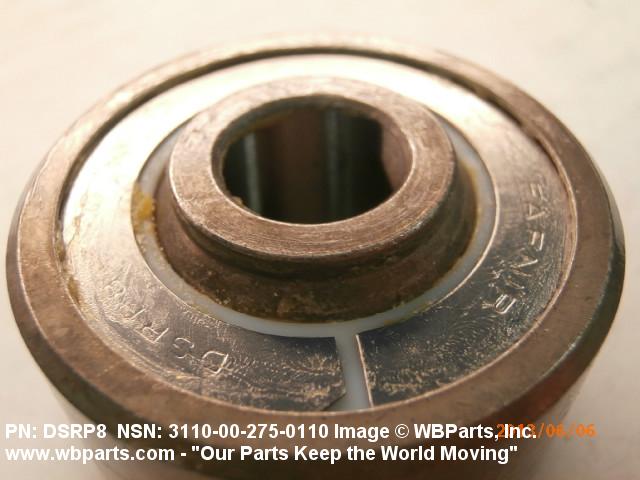

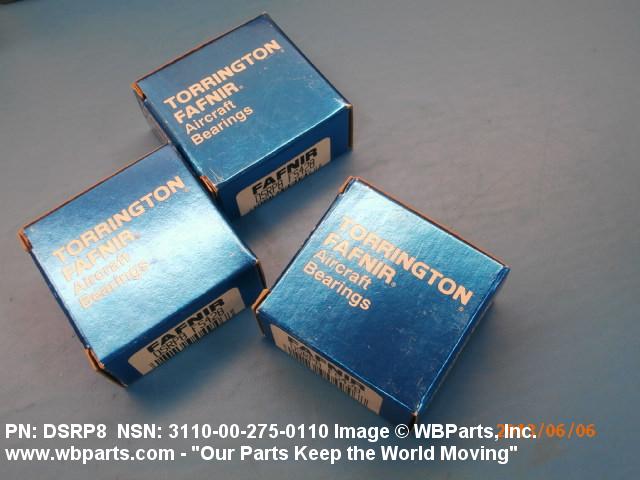

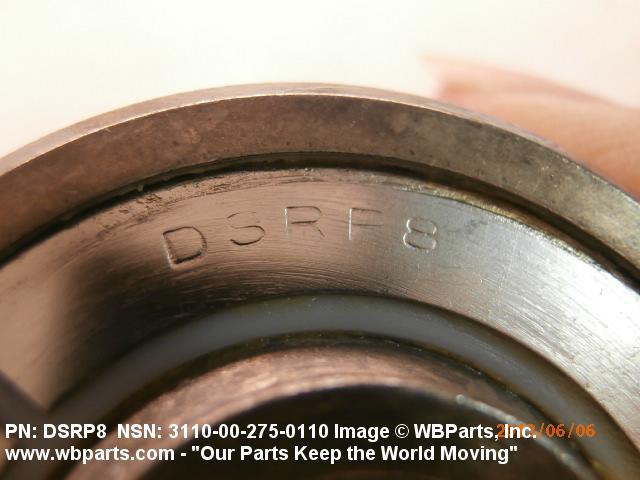

Drawings & Photos | NSN 3110-00-275-0110


Demand History | NSN 3110-00-275-0110

Part Number Request Date QTY Origin
3110-00-275-0110 2013-05-143 3 United States
3110-00-275-0110 2012-08-218 425 DIBBS
3110-00-275-0110 2012-01-10 254 DIBBS
3110-00-275-0110 2010-01-12 48 us
3110-00-275-0110 2009-12-350 110 Singapore
DSRP8 2009-07-197 158 us
3110-00-275-0110 2009-04-112 208 Singapore
3110-00-275-0110 2008-11-325 529 DIBBS
3110-00-275-0110 2008-11-317 529 DIBBS
3110-00-275-0110 2008-09-250 5 PK
3110-00-275-0110 2008-09-246 611 DIBBS
3110-00-275-0110 2008-06-169 80 DIBBS
3110-00-275-0110 2007-03-67 58 DIBBS

Cross Reference | NSN 3110-00-275-0110

Part Number Cage Code Manufacturer
DSRP8 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
DSRP8FS160 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
DSRP8FS160 3NPS1 RBC AIRCRAFT PRODUCTS, INC.
DSRP8FS428 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
DSRP8FS428 3NPS1 RBC AIRCRAFT PRODUCTS, INC.
DSRP8MILG3278 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GB520P8 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GB520P8 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
GB520P8 3NPS1 RBC AIRCRAFT PRODUCTS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-275-0110

Technical Data | NSN 3110-00-275-0110

Characteristic Specifications
MATERIAL STEEL INNER RING STEEL OUTER RING STEEL ROLLER RUBBER SYNTHETIC SEAL
SURFACE TREATMENT CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR 272 CONCAVE ROLLER, DOUBLE CLOSURE, SELF ALIGNING

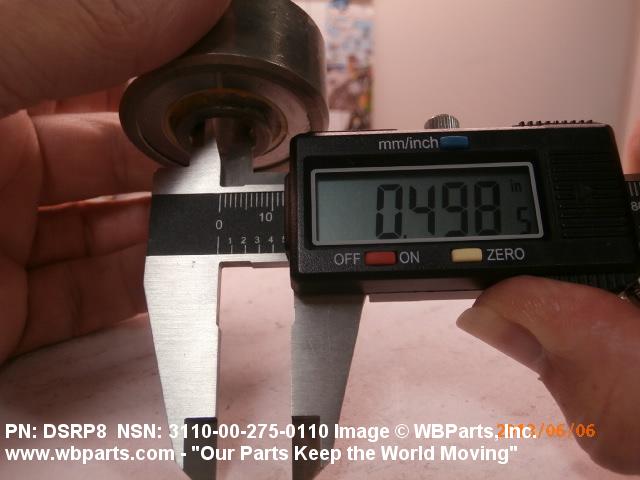

BORE DIAMETER 0.5000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER 1.6875 INCHES NOMINAL

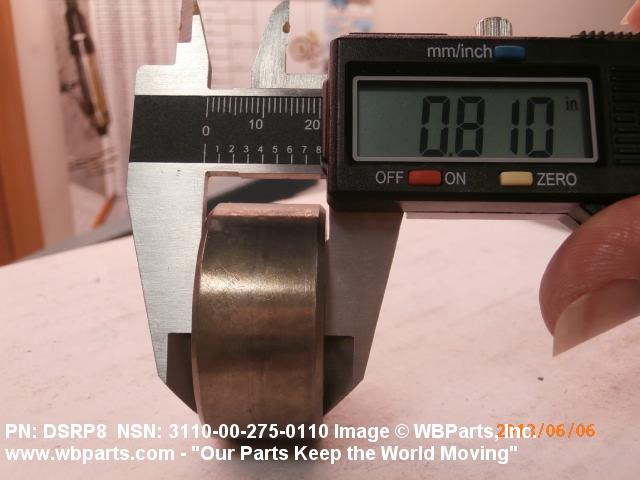

OUTER RING WIDTH 0.8120 INCHES NOMINAL
INNER RING WIDTH 1.0000 INCHES NOMINAL
LUBRICATION MATERIAL GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY 2
BEARING SEAL TYPE CONTACT
SPECIAL FEATURES 10 DEG SELF ALIGNMENT IN EITHER DIRECTION

Restrictions/Controls & Freight Information | NSN 3110-00-275-0110

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 114820 BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 742 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3110-00-275-0110

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
