NSN 3110-00-263-8705 MS211516, MS21151-6, AS21151
Product Details | ROD END BALL BEARING
3110-00-263-8705 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS211516, MS21151-6, AS21151, RAP3M42FS210, RAP3M4-2FS210, RAP3M42FS428, RAP3M4-2FS428, REP3M42, REP3M4-2, REP3M46F, REP3M4-6F, 3110-00-263-8705, 00-263-8705, 3110002638705, 002638705
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 JUL 1973 | 00-263-8705 | 00049 ( BEARING, BALL, ROD END ) |

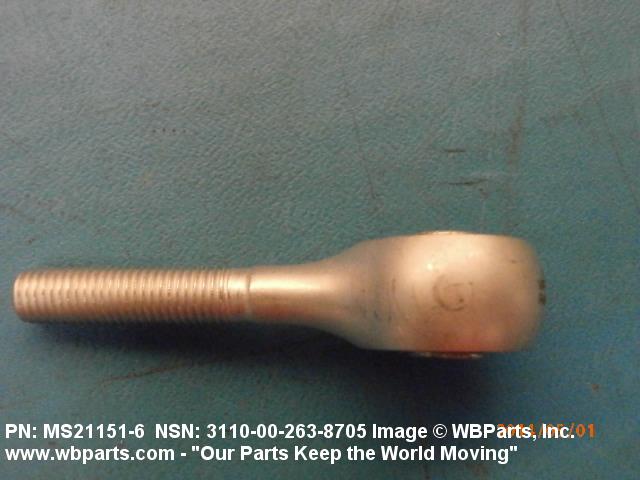

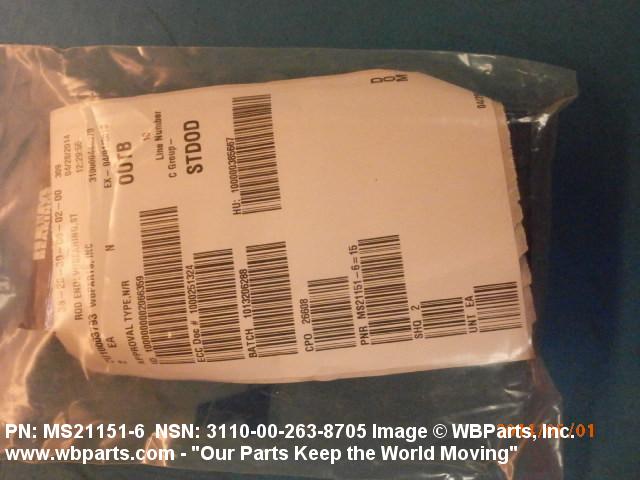

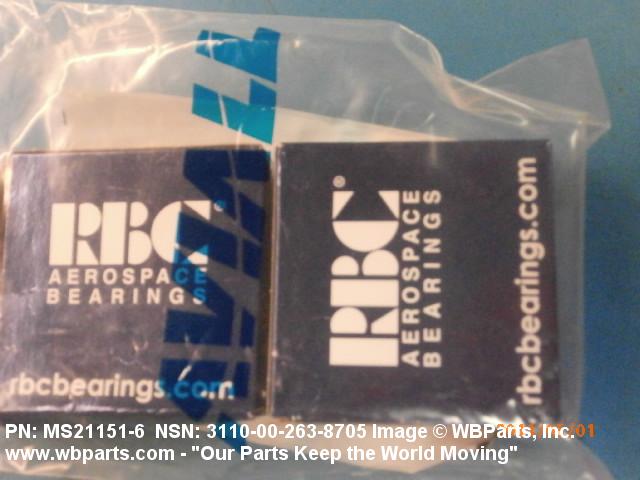

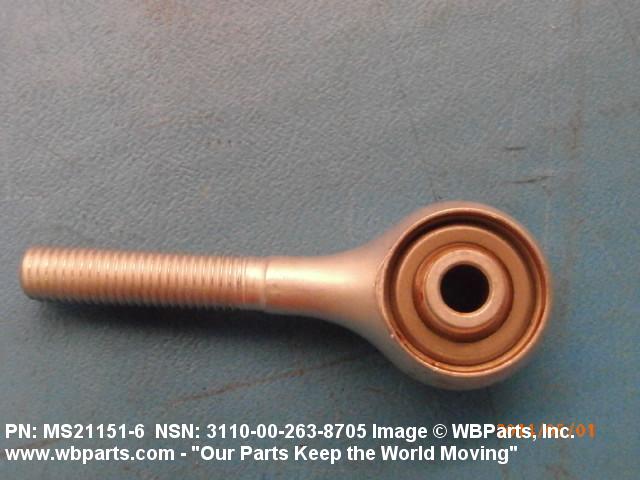

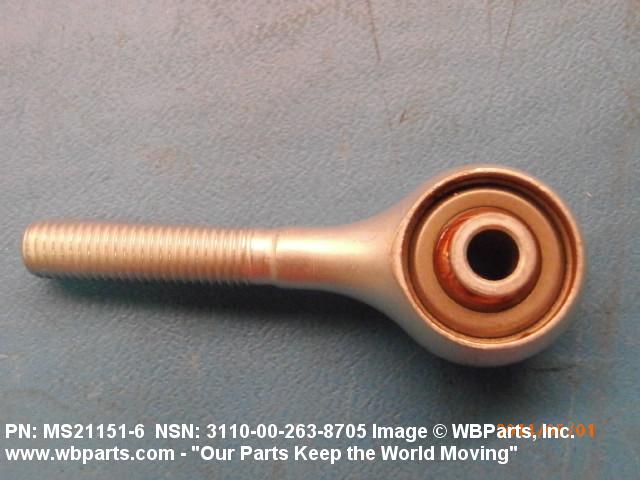

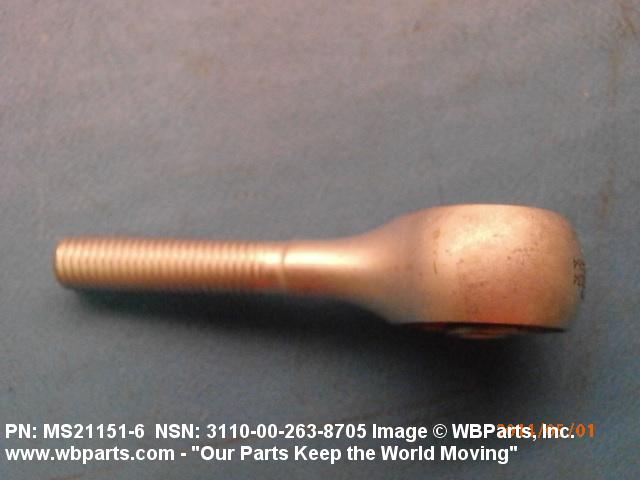

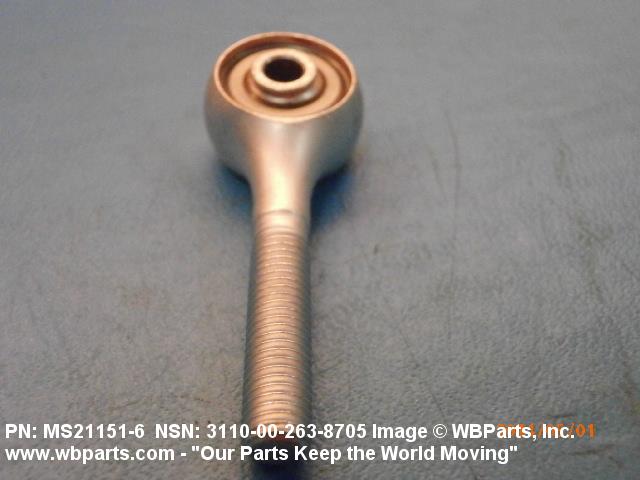

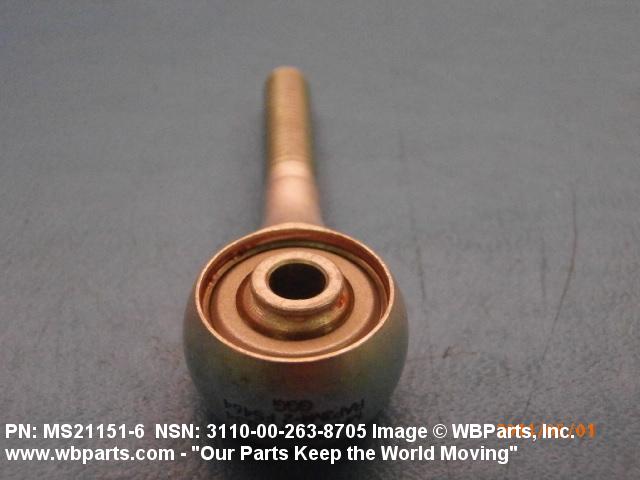

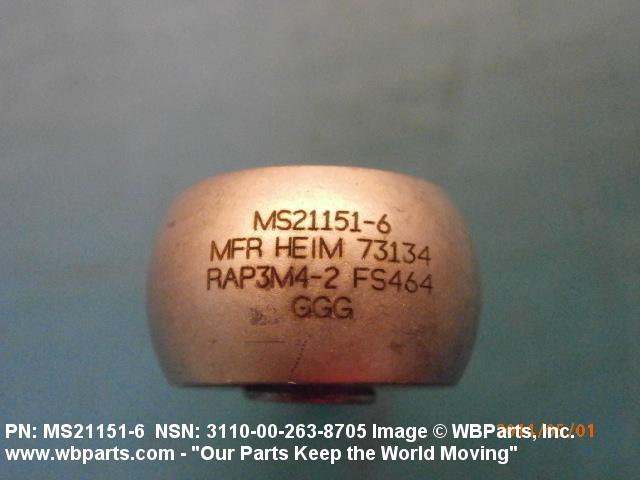

Drawings & Photos | NSN 3110-00-263-8705
Demand History | NSN 3110-00-263-8705
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-263-8705 | 2024-08-233 | 2 | VN |
| MS211516 | 2024-07-206 | 50 | us |
| MS211516 | 2024-03-89 | 2 | VN |
| MS211516 | 2023-07-201 | 50 | United States |
| MS211516 | 2022-11-321 | 20 | United States |
| 3110-00-263-8705 | 2022-04-118 | 10 | US |
| 3110-00-263-8705 | 2021-02-48 | 49 | DIBBS |
| 3110-00-263-8705 | 2020-12-356 | 31 | DIBBS |
| MS211516 | 2020-05-150 | 30 | United States |
| 3110-00-263-8705 | 2018-09-249 | 6 | DIBBS |
| MS211516 | 2018-08-213 | 100 | United States |
| 3110-00-263-8705 | 2018-02-37 | 56 | DIBBS |
| 3110-00-263-8705 | 2017-11-311 | 18 | DIBBS |
| 3110-00-263-8705 | 2016-10-286 | 67 | DIBBS |
| MS211516 | 2016-09-270 | 200 | United States |
| 3110-00-263-8705 | 2016-09-265 | 1 | DIBBS |
| 3110-00-263-8705 | 2016-08-231 | 140 | DIBBS |
| 3110-00-263-8705 | 2016-01-14 | 48 | DIBBS |
| 3110-00-263-8705 | 2015-12-351 | 32 | DIBBS |
| MS211516 | 2015-06-167 | 10 | United States |
| 3110-00-263-8705 | 2014-04-115 | 2 | United States |
| MS211516 | 2014-03-84 | 2 | United States |
| 3110-00-263-8705 | 2014-02-34 | 11 | DIBBS |
| 3110-00-263-8705 | 2013-08-241 | 18 | TR |
| 3110-00-263-8705 | 2012-12-346 | 4 | CA |
| MS211516 | 2012-07-205 | 20 | TR |
| RAP3M42FS210 | 2012-01-23 | 1 | Italy |
| RAP3M42FS428 | 2012-01-23 | 1 | Italy |
| RAP3M42FS210 | 2012-01-16 | 1 | Italy |
| RAP3M42FS428 | 2012-01-16 | 1 | Italy |
| MS211516 | 2011-08-213 | 3 | US |
| 3110-00-263-8705 | 2010-05-146 | 27 | DIBBS |
| REP3M42 | 2010-01-12 | 40 | us |
| 3110-00-263-8705 | 2009-03-68 | 12 | United Kingdom |
Cross Reference | NSN 3110-00-263-8705
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS21151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-6 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RAP3M4-2FS210 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| RAP3M4-2FS428 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP3M4-2 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| REP3M4-6F | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-263-8705
Related Products | NSN 3110-00-263-8705
Technical Data | NSN 3110-00-263-8705
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY AMS3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM OUTER RING CADMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |

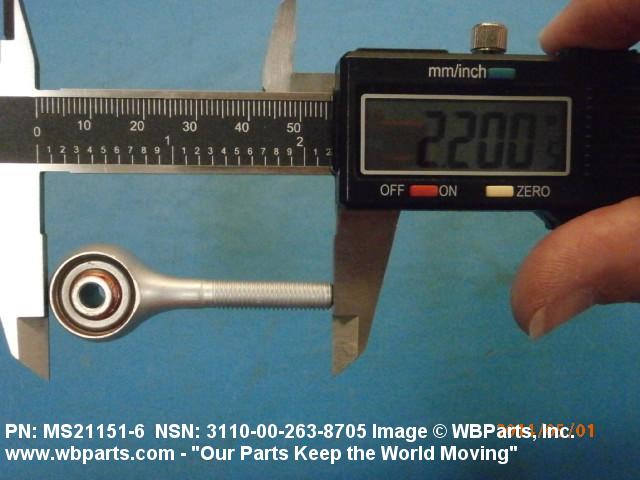

| OVERALL LENGTH | 2.1875 INCHES MINIMUM AND 2.2175 INCHES MAXIMUM |

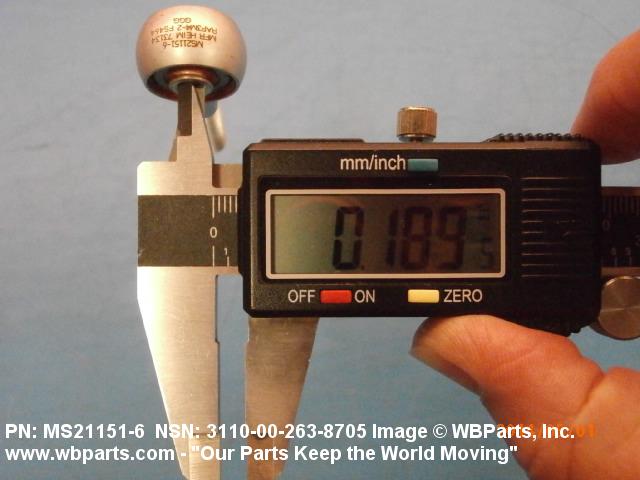

| BORE DIAMETER | 0.1897 INCHES MINIMUM AND 0.1900 INCHES MAXIMUM |

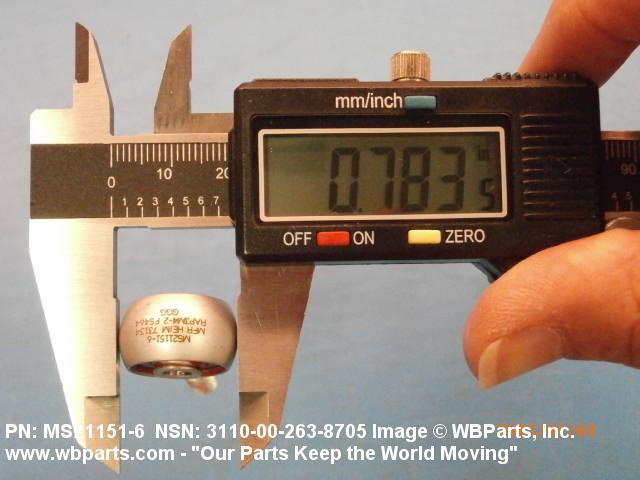

| OVERALL OUTSIDE DIAMETER | 0.7710 INCHES MINIMUM AND 0.7910 INCHES MAXIMUM |

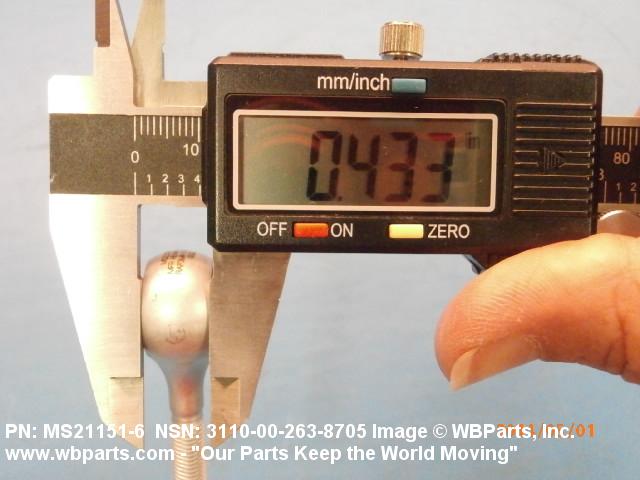

| OUTER RING WIDTH | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |

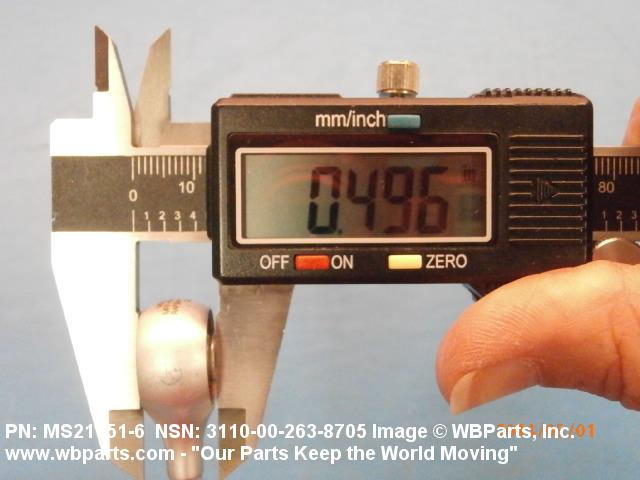

| INNER RING WIDTH | 0.4950 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |

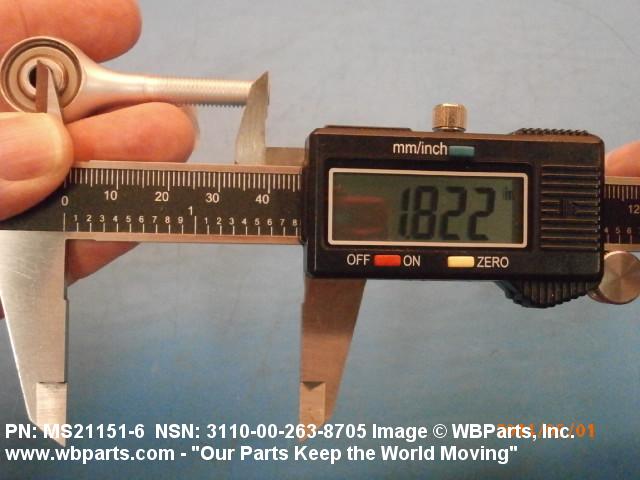

| LENGTH FROM BORE CENTER TO SHANK END | 1.8020 INCHES MINIMUM AND 1.8220 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |

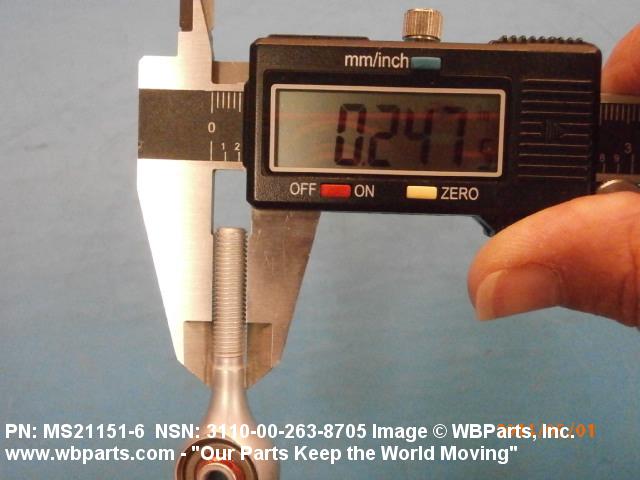

| SHANK DIAMETER | 0.2500 INCHES NOMINAL |

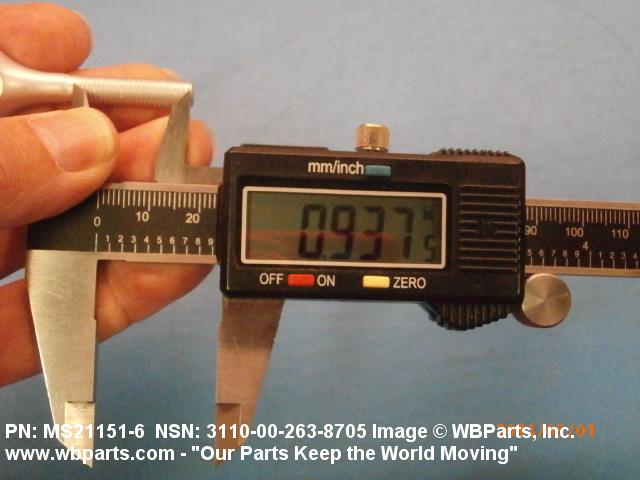

| SHANK THREAD LENGTH | 0.9070 INCHES MINIMUM AND 0.9690 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
Restrictions/Controls & Freight Information | NSN 3110-00-263-8705
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
