NSN 3110-00-227-2821 MS24465 , MS244653, MS24465-3

Product Details | NEEDLE ROLLER BEARING

3110-00-227-2821 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.

Part Alternates: MS24465 , MS244653, MS24465-3, NAS5023MILG3278, NAS502-3MILG3278, A1003X1, AN123469, BACB10B130, 195081, 2049991, 244653, 24465-3, 3NBF512YJ, 3NBF512YJ2C, 3NBF512YJANG25, 3NBF512YJMILG3278A, 5023, 502-3, 867668, 3110-00-227-2821, 00-227-2821, 3110002272821, 002272821

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-227-2821	00051 ( BEARING, ROLLER, NEEDLE )

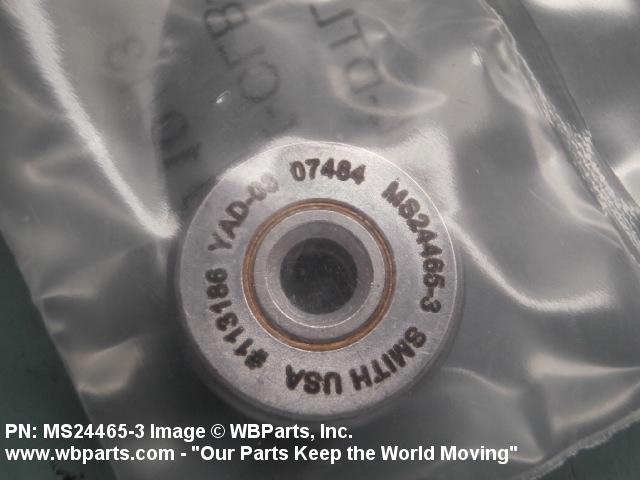

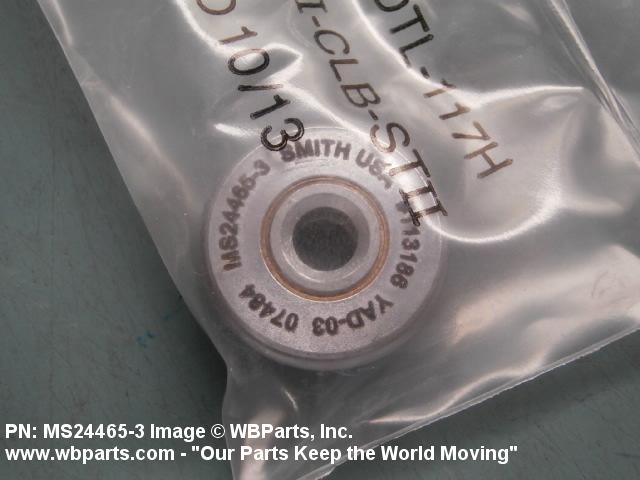

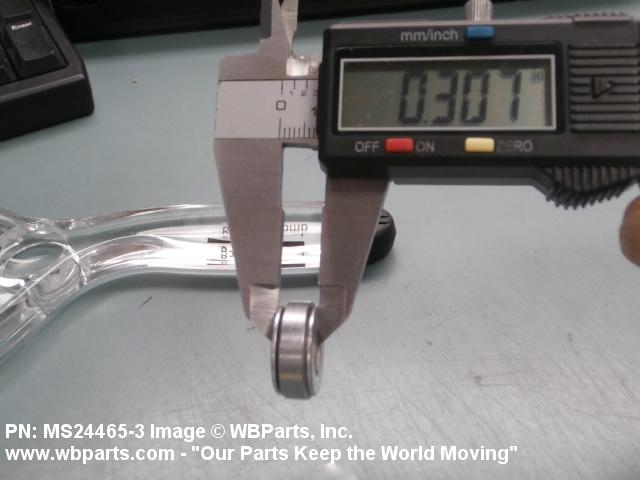

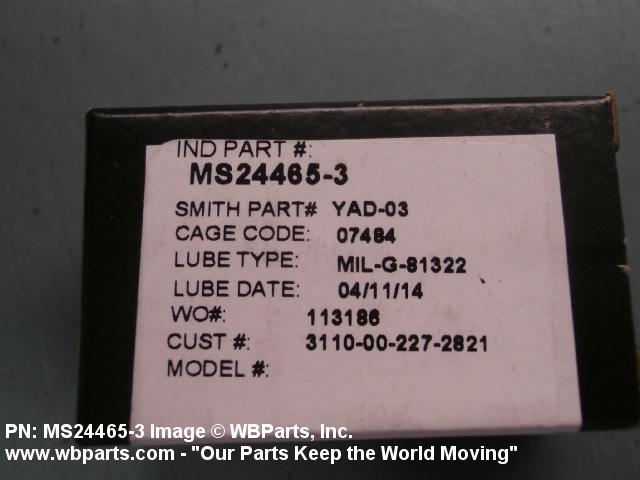

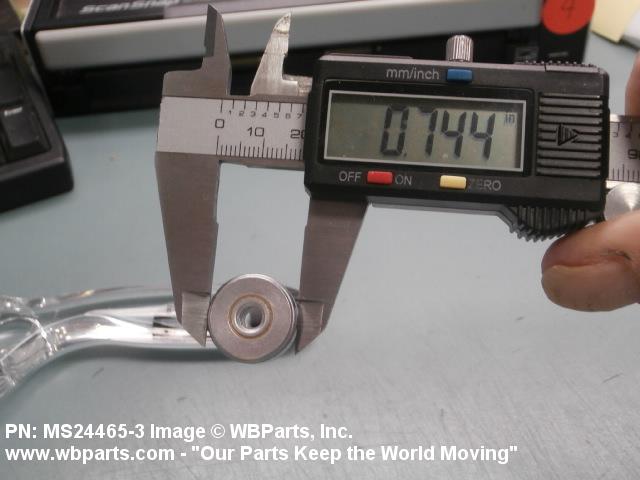

Drawings & Photos | NSN 3110-00-227-2821

Part Number	Request Date	QTY	Origin
5023	2024-09-270	5	US
3110-00-227-2821	2023-04-106	42	DIBBS
3110-00-227-2821	2023-01-16	142	DIBBS
3110-00-227-2821	2022-10-289	127	DIBBS
3110-00-227-2821	2022-06-173	41	DIBBS
3110-00-227-2821	2022-02-54	52	DIBBS
3110-00-227-2821	2022-02-53	52	DIBBS
3110-00-227-2821	2021-10-290	83	DIBBS
3110-00-227-2821	2021-10-288	41	DIBBS
3110-00-227-2821	2021-10-280	41	DIBBS
AN123469	2021-02-43	800	US
AN123469	2021-02-39	40	United States
3110-00-227-2821	2021-01-19	45	DIBBS
AN123469	2020-05-129	130	US
AN123469	2020-01-10	14	US
3110-00-227-2821	2018-12-350	323	DIBBS
AN123469	2018-05-135	1	FX
AN123469	2018-03-79	1000	US
BACB10B130	2018-01-02	4	United States
3110-00-227-2821	2017-10-296	295	DIBBS
AN123469	2017-04-100	100	US
AN123469	2017-04-100	1000	US
3110-00-227-2821	2016-07-189	191	DIBBS
3110-00-227-2821	2015-06-174	185	DIBBS
3110-00-227-2821	2015-06-166	185	DIBBS
AN123469	2015-04-120	75	United States
AN123469	2014-11-322	250	US
3NBF512YJ	2014-10-302	5	United States
3110-00-227-2821	2014-04-113	4	United States
AN123469	2013-11-326	2000	US
AN123469	2013-10-296	500	TW
AN123469	2013-09-264	1200	United States
AN123469	2013-09-264	1200	United States
AN123469	2013-03-64	1460	China
3NBF512YJ	2011-04-111	1	US
AN123469	2010-08-243	100	UM
AN123469	2010-05-126	600	Singapore
MS244653	2009-07-195	100	United Kingdom
AN123469	2009-04-104	2000	US
AN123469	2009-03-90	0	United States
AN123469	2007-01-05	80	United States
AN123469	2006-09-248	50	United States

Cross Reference | NSN 3110-00-227-2821

Part Number	Cage Code	Manufacturer
195081	37695	RAYTHEON COMPANY DBA RAYTHEON
2049991	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
24465-3	92563	MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION
3NBF512YJ	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
3NBF512YJ	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
3NBF512YJ	FA951	TIMKEN EUROPA SARL
3NBF512YJ2C	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
3NBF512YJ2C	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
3NBF512YJANG25	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
3NBF512YJMILG3278A	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
502-3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
867668	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
A1003X1	0E9N0	DAVID BROWN HYDRAULICS INC DBA HYDRECO
AN123469	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
BACB10B130	81205	THE BOEING COMPANY DBA BOEING
MS24465	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24465-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS502-3MILG3278	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-227-2821

Compare

Related Products | NSN 3110-00-227-2821

3110-00-227-2822, 3110-00-227-2823, 3110-00-227-2824, 3110-00-227-2825, 3110-00-227-2826

Technical Data | NSN 3110-00-227-2821

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OR STEEL COMP 8620 OR STEEL OR STEEL COMP E50100 OR STEEL COMP E51100 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7420 MIL SPEC 1ST MATERIAL RESPONSE OR 66 FED STD 1ST MATERIAL RESPONSE OR MIL-S-8690 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-7493 MIL SPEC 3RD MATERIAL RESPONSE OR QQ-S-624 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-633 FED SPEC 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE OR 66 FED STD 5TH MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM END PLATE CHROMIUM OUTER RING OUTSIDE DIAMETER
STYLE DESIGNATOR	430 CAM ROLLER, HARDENED AND GROUND, NON-SEPARABLE
BORE DIAMETER	0.1900 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	0.7500 INCHES NOMINAL
OUTER RING WIDTH	0.2188 INCHES NOMINAL
INNER RING WIDTH	0.3125 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-3278 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
ALIGNMENT TYPE	RIGID
SPECIAL FEATURES	OIL HOLE AND GROOVE IN INNER RACE
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS24465-3

Restrictions/Controls & Freight Information | NSN 3110-00-227-2821

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-227-2821

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
