NSN 3110-00-227-2822 MS244654, MS24465-4, NAS5024
Product Details | NEEDLE ROLLER BEARING
3110-00-227-2822 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: MS244654, MS24465-4, NAS5024, NAS502-4, NAS5024MILG3278, NAS502-4MILG3278, NAS5024MILG3278A, NAS502-4MILG3278A, BACB10B131, FT44NBF614YJ, 23040614, 230-40614, 244654, 24465-4, 4NBF614YJ, 4NBF614YJ2C, 4NBF614YJANG25, 3110-00-227-2822, 00-227-2822, 3110002272822, 002272822
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-2822 | 00051 ( BEARING, ROLLER, NEEDLE ) |

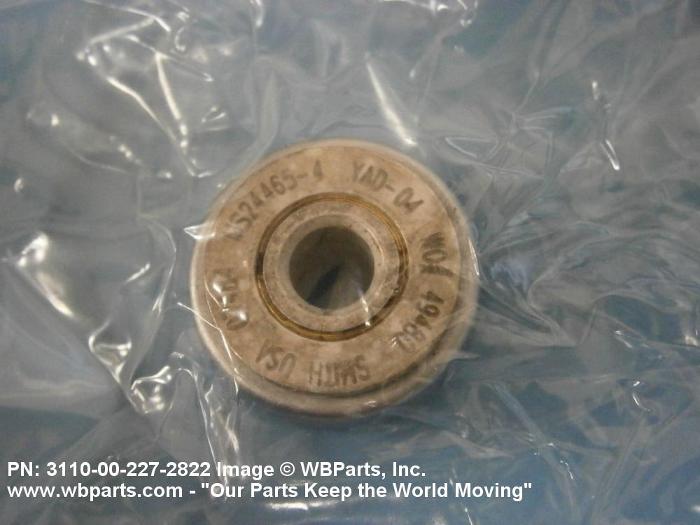

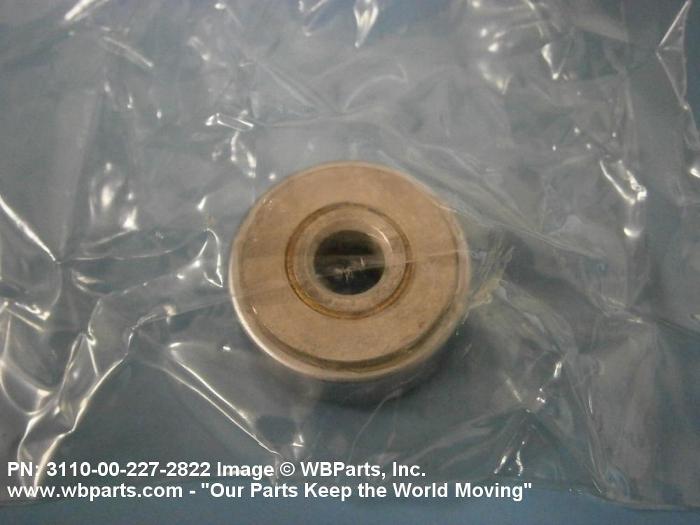

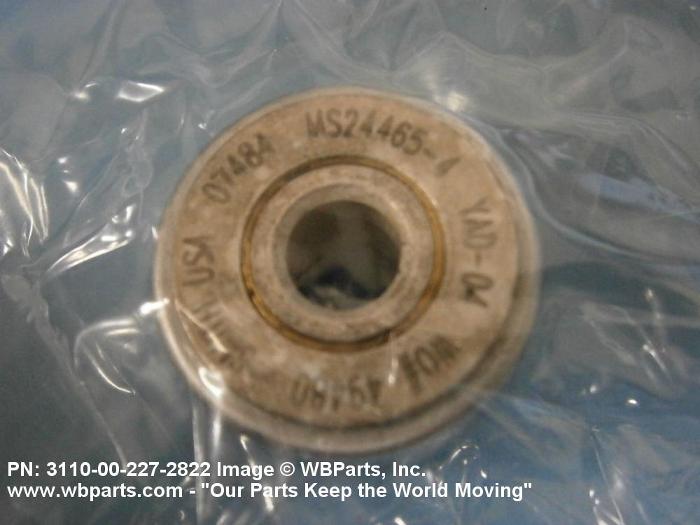

Drawings & Photos | NSN 3110-00-227-2822
Demand History | NSN 3110-00-227-2822
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-227-2822 | 2023-01-11 | 100 | UK |
| MS244654 | 2022-01-19 | 196 | Malaysia |
| 3110-00-227-2822 | 2021-10-297 | 196 | Malaysia |
| MS244654 | 2021-06-166 | 28 | Malaysia |
| 3110-00-227-2822 | 2021-06-166 | 28 | MY |
| 3110-00-227-2822 | 2020-07-207 | 28 | AE |
| 3110002272822 | 2018-03-68 | 28 | US |
| 4NBF614YJ | 2018-02-37 | 5 | MX |
| MS244654 | 2016-07-201 | 8 | US |
| NAS5024 | 2013-01-16 | 1 | US |
| 3110-00-227-2822 | 2013-01-10 | 1 | US |
| 3110-00-227-2822 | 2011-09-273 | 42 | United States |
| BACB10B131 | 2009-12-356 | 1 | US |
| 4NBF614YJ | 2006-05-147 | 2 | United Arab Emirates |
| 3110-00-227-2822 | 2006-02-45 | 30 | France |
Cross Reference | NSN 3110-00-227-2822
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 230-40614 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
| 24465-4 | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| 4NBF614YJ | 39317 | MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING. |
| 4NBF614YJ | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 4NBF614YJ | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| 4NBF614YJ | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 4NBF614YJ | 60399 | REGAL-BELOIT CORPORATION DBA FASCO GROUP DIV CASSVILLE |
| 4NBF614YJ | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| 4NBF614YJ2C | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 4NBF614YJ2C | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 4NBF614YJANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| BACB10B131 | 81205 | THE BOEING COMPANY DBA BOEING |
| FT44NBF614YJ | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| MS24465-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS502-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS502-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| NAS502-4MILG3278 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS502-4MILG3278A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-227-2822
Related Products | NSN 3110-00-227-2822
Technical Data | NSN 3110-00-227-2822
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OR STEEL COMP 8620 OR STEEL OR STEEL COMP E50100 OR STEEL COMP E51100 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC 1ST MATERIAL RESPONSE OR 66 FED STD 1ST MATERIAL RESPONSE OR MIL-S-8690 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-7493 MIL SPEC 3RD MATERIAL RESPONSE OR QQ-S-624 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-633 FED SPEC 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE OR 66 FED STD 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED CHROMIUM OUTER RING OUTSIDE DIAMETER |
| STYLE DESIGNATOR | 430 CAM ROLLER, HARDENED AND GROUND, NON-SEPARABLE |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.8750 INCHES NOMINAL |
| OUTER RING WIDTH | 0.2813 INCHES NOMINAL |
| INNER RING WIDTH | 0.3750 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-3278 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN INNER RING |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24465-4 |
Restrictions/Controls & Freight Information | NSN 3110-00-227-2822
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-227-2822
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
