NSN 3110-00-227-2559 MS19081, MS19081105, MS19081-105

Product Details | TAPERED ROLLER BEARING

3110-00-227-2559 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.

Part Alternates: MS19081, MS19081105, MS19081-105, AA59649, A-A-59649, AA59649464, AA59649-464, SL289107SL289310, SL289-107SL289-310, E2267622, E22676-22, 3958539520, 39585-39520, 4520245298, 45202-45298, 54402R91, 3110-00-227-2559, 00-227-2559, 3110002272559, 002272559

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1961	00-227-2559	00021 ( BEARING, ROLLER, TAPERED )

Drawings & Photos | NSN 3110-00-227-2559

Part Number	Request Date	QTY	Origin
3110-00-227-2559	2024-09-249	30	us
3110-00-227-2559	2024-03-65	122	us
3110-00-227-2559	2023-12-339	100	United States
MS19081105	2022-04-119	155	us
MS19081105	2022-04-119	160	United States
3110-00-227-2559	2020-01-16	695	DIBBS
3110-00-227-2559	2018-11-330	14	DE
3110-00-227-2559	2018-11-317	250	US
3110-00-227-2559	2018-10-291	294	US
3110-00-227-2559	2018-08-232	43	US
3110-00-227-2559	2017-10-283	250	DIBBS
3110-00-227-2559	2017-10-275	271	us
3110-00-227-2559	2017-09-263	271	DIBBS
3110-00-227-2559	2015-08-240	1	DIBBS-RFPs
3110-00-227-2559	2015-03-82	175	KR
3110-00-227-2559	2013-11-305	454	MANUAL
3110-00-227-2559	2013-10-284	454	Germany
3110-00-227-2559	2013-09-248	454	Germany
AA59649	2013-01-11	12	US
MS19081105	2010-10-287	3	US
MS19081105	2009-07-203	1	Thailand
3110-00-227-2559	2009-05-150	597	DIBBS
3110-00-227-2559	2009-05-125	1725	DIBBS
MS19081	2008-12-336	785	US
3110-00-227-2559	2008-08-242	1000	DIBBS
3110-00-227-2559	2008-08-241	400	DIBBS
3110-00-227-2559	2008-08-241	600	DIBBS
3110-00-227-2559	2008-05-140	5142	DIBBS
3110-00-227-2559	2008-04-100	3300	DIBBS
3110-00-227-2559	2007-11-305	891	United States
E2267622	2007-06-162	1000	US
3110-00-227-2559	2007-04-100	4000	DIBBS
3110-00-227-2559	2007-03-88	250	United States
MS19081105	2007-03-79	1000	US
MS19081105	2006-10-296	560	United States

Cross Reference | NSN 3110-00-227-2559

Part Number	Cage Code	Manufacturer
3110002272559	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
39585-39520	60038	TIMKEN CORPORATION, THE
39585-39520	K0018	TIMKEN EUROPE A BRANCH OF THE TIMKEN COMPANY
39585-39520	K0036	TIMKEN UK LTD
45202-45298	93234	WORTHINGTON COMPRESSORS INC AIR POWER AND CONSTRUCTION EQUIP DIV
54402R91	29930	INTERNATIONAL HARVESTER CO AGRICULTURAL EQUIPMENT DIV
54402R91	31007	NAVISTAR INTL CORP
A-A-59649	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59649-464	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
E22676-22	17454	TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR
MS19081	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS19081-105	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SL289-107SL289-310	K0192	SPICER SPECIALITY AXLE DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-227-2559

Compare

Related Products | NSN 3110-00-227-2559

3110-00-227-2587, 3110-00-227-2597, 3110-00-227-2598, 3110-00-227-2599, 3110-00-227-2600

Technical Data | NSN 3110-00-227-2559

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	350 STRAIGHT BORE, NORMAL ANGLE

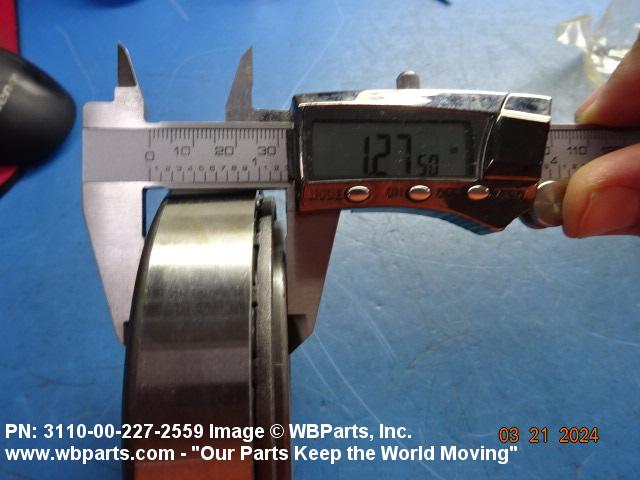

OVERALL WIDTH	1.1875 INCHES NOMINAL

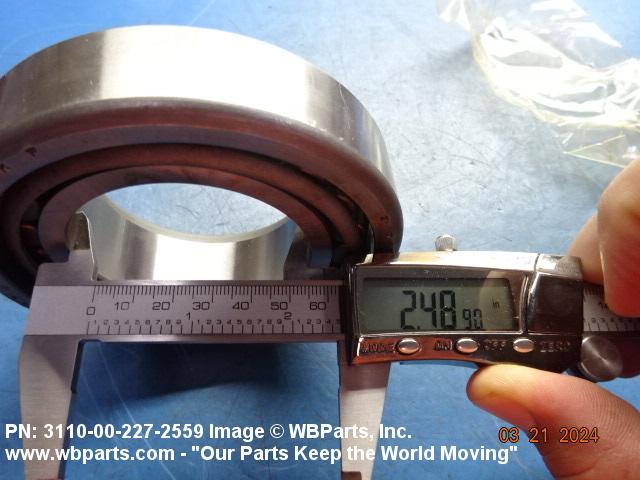

BORE DIAMETER	2.5000 INCHES NOMINAL

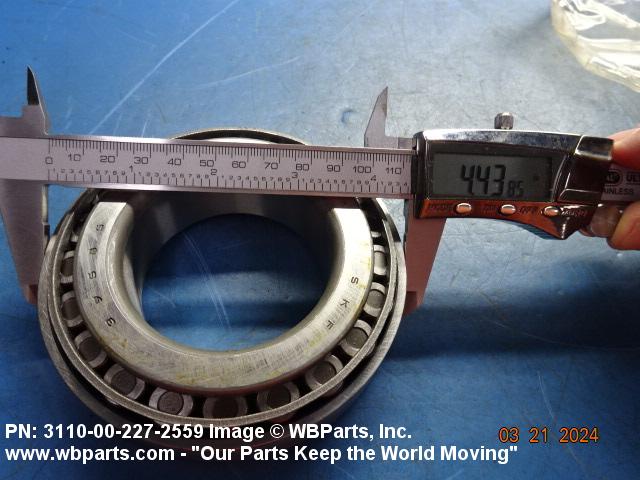

OVERALL OUTSIDE DIAMETER	4.4375 INCHES NOMINAL
BACKFACE CORNER RADIUS	0.1250 INCHES NOMINAL
STANDOUT WIDTH	0.2500 INCHES NOMINAL
CONE CORNER RADIUS	0.1400 INCHES NOMINAL

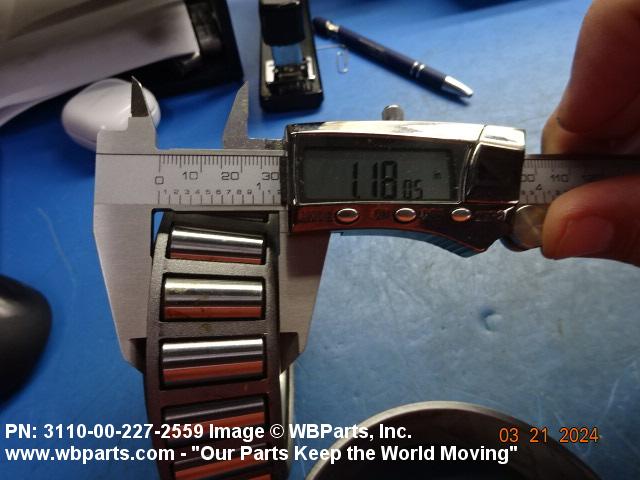

CONE WIDTH	1.1875 INCHES NOMINAL
CUP WIDTH	0.9375 INCHES NOMINAL
STANDARD TOLERANCE DESIGNATION	AFBMA CLASS 2
RETAINER FABRICATION METHOD	PRESSED
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS19081-105

Restrictions/Controls & Freight Information | NSN 3110-00-227-2559

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-227-2559

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
