NSN 3110-00-227-2283 RE3FL43, RE3FL4-3, RE3FL43FS10160S
Product Details | ROD END BALL BEARING
3110-00-227-2283 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: RE3FL43, RE3FL4-3, RE3FL43FS10160S, RE3FL4-3FS10160S, RE3FL43FS50160S, RE3FL4-3FS50160S, 3110-00-227-2283, 00-227-2283, 3110002272283, 002272283
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-2283 | 00049 ( BEARING, BALL, ROD END ) |
Drawings & Photos | NSN 3110-00-227-2283
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-227-2283
Technical Data | NSN 3110-00-227-2283
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL SHAFT STEEL CORROSION RESISTING SHIELD |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES CADMIUM SHIELD |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 1.7660 INCHES NOMINAL |
| BORE DIAMETER | 0.1900 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.7810 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3380 INCHES NOMINAL |
| INNER RING WIDTH | 0.4370 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 1.3750 INCHES NOMINAL |

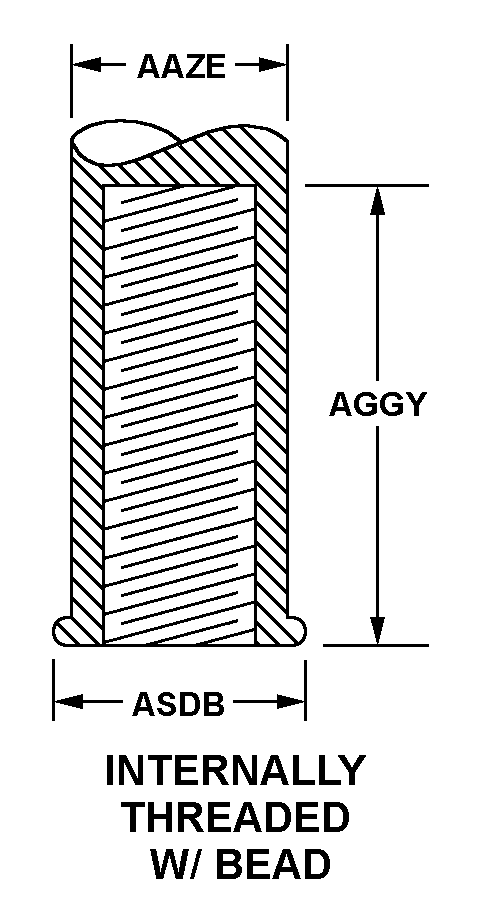

| SHANK STYLE | 655 INTERNALLY THREADED W/BEAD |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.4380 INCHES NOMINAL |
| SHANK THREAD LENGTH | 0.7500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | LEFT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
Restrictions/Controls & Freight Information | NSN 3110-00-227-2283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3110-00-227-2283
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
