NSN 3110-00-198-1008 24M6392, 24M639-2, 6486951
Product Details | ANNULAR BALL BEARING

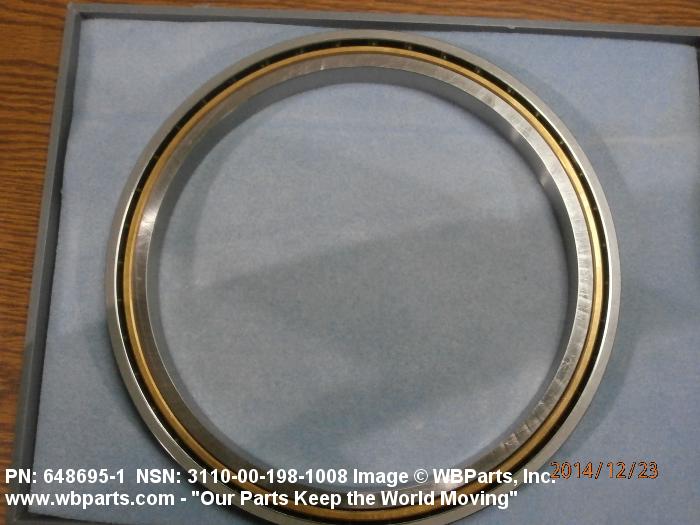

3110-00-198-1008 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 24M6392, 24M639-2, 6486951, 648695-1, 6486951REVH, 648695-1REVH, 3110-00-198-1008, 00-198-1008, 3110001981008, 001981008
Bearings | Bearings, Antifriction, Unmounted
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
31 | 01 JAN 1963 | 00-198-1008 | 00014 ( BEARING, BALL, ANNULAR ) |
Demand History | NSN 3110-00-198-1008
Part Number | Request Date | QTY | Origin |
---|---|---|---|
3110-00-198-1008 | 2013-10-04 | 13 | DIBBS |
3110-00-198-1008 | 2013-09-26 | 13 | DIBBS |
3110-00-198-1008 | 2013-04-12 | 12 | DIBBS |
3110-00-198-1008 | 2012-11-13 | 3 | DIBBS |
3110-00-198-1008 | 2012-11-07 | 4 | DIBBS |
3110-00-198-1008 | 2012-10-07 | 3 | DIBBS |
3110-00-198-1008 | 2011-01-28 | 3 | United States |
3110-00-198-1008 | 2010-12-22 | 5 | United States |
3110-00-198-1008 | 2010-10-07 | 3 | DIBBS |
3110-00-198-1008 | 2010-07-01 | 5 | DIBBS |
3110-00-198-1008 | 2008-04-24 | 13 | DIBBS |
3110-00-198-1008 | 2007-10-05 | 13 | DIBBS |
3110-00-198-1008 | 2007-08-30 | 7 | DIBBS |
Cross Reference | NSN 3110-00-198-1008
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-198-1008
Related Products | NSN 3110-00-198-1008
Technical Data | NSN 3110-00-198-1008
Characteristic | Specifications |
---|---|

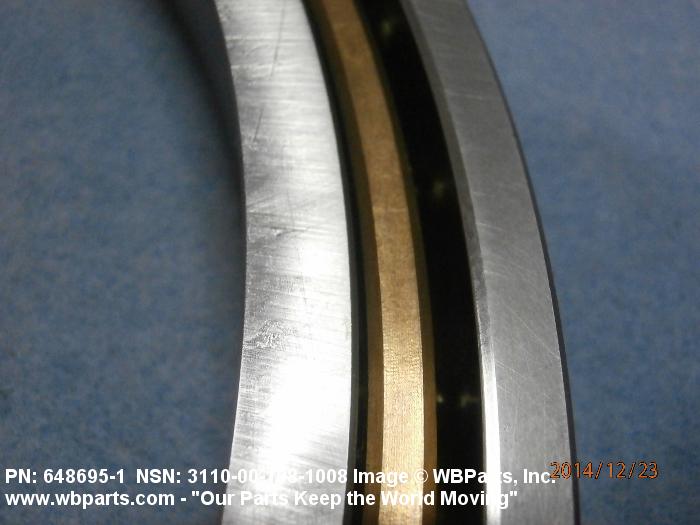

MATERIAL | STEEL CORROSION RESISTING BALL STEEL CORROSION RESISTING INNER RING STEEL CORROSION RESISTING OUTER RING COPPER ALLOY RETAINER |

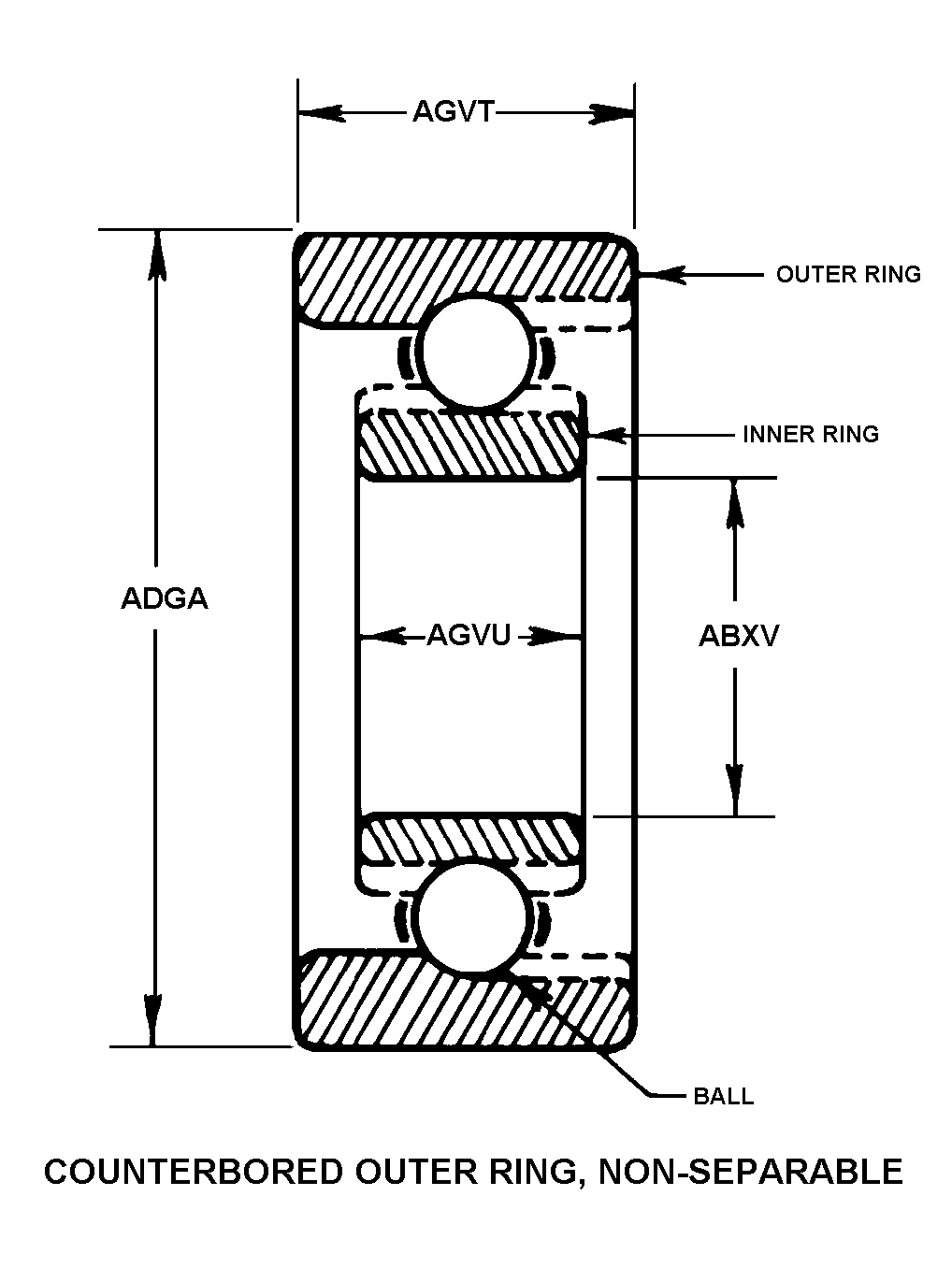

STYLE DESIGNATOR | 24B COUNTERBORED OUTER RING, NON-SEPARABLE |

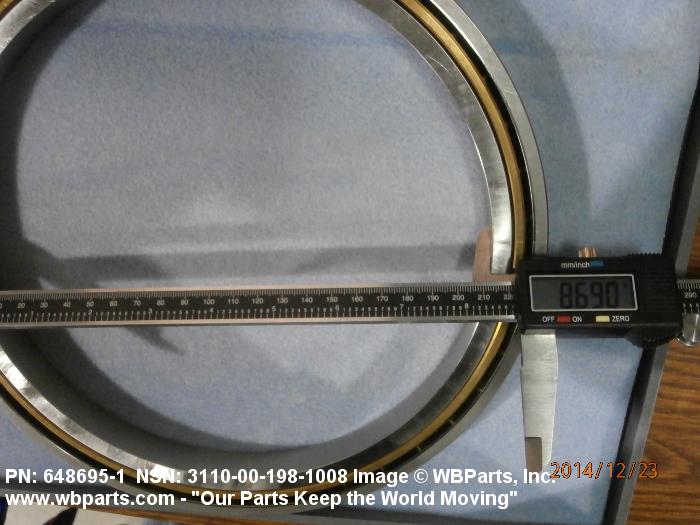

BORE DIAMETER | 8.7500 INCHES MINIMUM AND 8.7530 INCHES MAXIMUM |
OVERALL OUTSIDE DIAMETER | 10.4980 INCHES MINIMUM AND 10.5000 INCHES MAXIMUM |

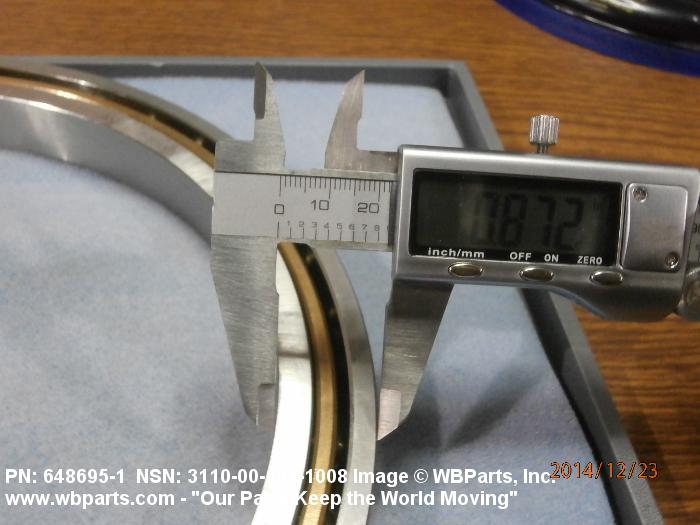

OUTER RING WIDTH | 0.8700 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |

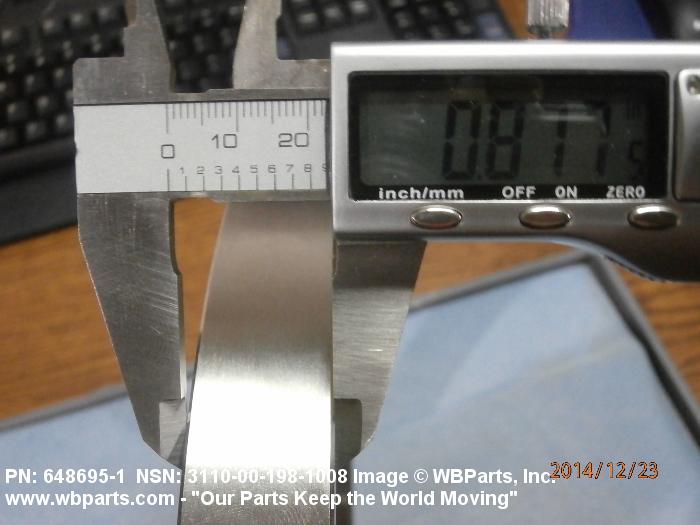

INNER RING WIDTH | 0.8120 INCHES NOMINAL |
BORE SHAPE | STRAIGHT |
SURFACE FINISH | GROUND |
RETAINER FABRICATION METHOD | MACHINED |
LOAD DIRECTION | RADIAL |
INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-198-1008
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 742 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-198-1008
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
