NSN 3110-00-173-5062 RE3ML62N, RE3ML6-2N, RE3ML62NANG25

Product Details | ROD END BALL BEARING

3110-00-173-5062 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.

Part Alternates: RE3ML62N, RE3ML6-2N, RE3ML62NANG25, RE3ML6-2NANG25, RE3ML62NFS10125, RE3ML6-2NFS10125, RE3ML62NFS160, RE3ML6-2NFS160, RE3ML62NFS160A, RE3ML6-2NFS160A, RE3ML62NMILG3278A, RE3ML6-2NMILG3278A, REP3ML62NFS160, REP3ML6-2NFS160, 502129, 7767957, 3110-00-173-5062, 00-173-5062, 3110001735062, 001735062

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-173-5062	00049 ( BEARING, BALL, ROD END )

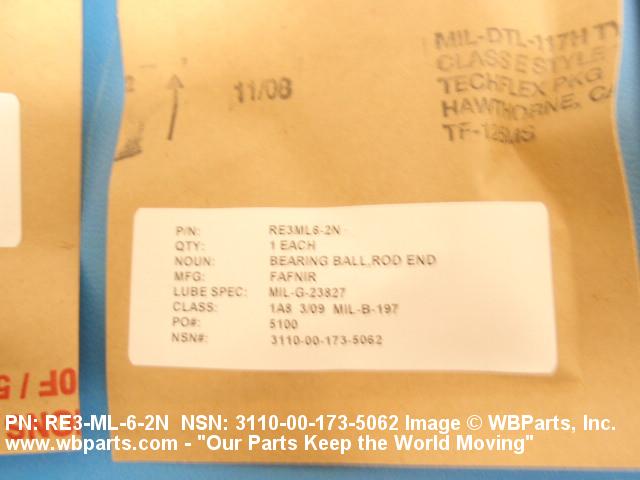

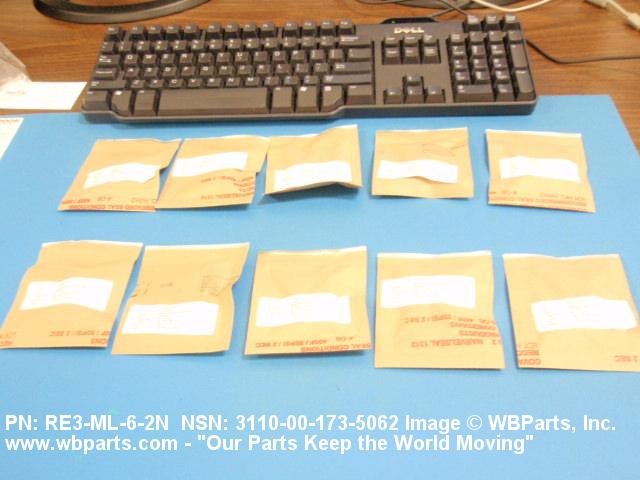

Drawings & Photos | NSN 3110-00-173-5062

Part Number	Request Date	QTY	Origin
3110-00-173-5062	2017-07-207	1	US
RE3ML62N	2009-03-78	10	United States
3110-00-173-5062	2009-01-09	150	DIBBS
3110-00-173-5062	2008-10-298	268	DIBBS
RE3ML62N	2008-01-14	30	US

Cross Reference | NSN 3110-00-173-5062

Part Number	Cage Code	Manufacturer
502129	02978	L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS
7767957	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
RE3ML6-2N	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
RE3ML6-2N	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
RE3ML6-2NANG25	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
RE3ML6-2NANG25	21760	SCHATZ BEARING CORPORATION
RE3ML6-2NFS10125	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
RE3ML6-2NFS160	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
RE3ML6-2NFS160A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
RE3ML6-2NMILG3278A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
RE3ML62NMILG3278A	21760	SCHATZ BEARING CORPORATION
REP3ML6-2NFS160	73134	ROLLER BEARING COMPANY OF AMERICA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-173-5062

Compare

Related Products | NSN 3110-00-173-5062

3110-00-173-5063, 3110-00-173-5064, 3110-00-173-5066, 3110-00-173-5067, 3110-00-173-5068

Technical Data | NSN 3110-00-173-5062

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL SHAFT STEEL CORROSION RESISTING SHIELD
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES CADMIUM SHIELD
STYLE DESIGNATOR	466 DOUBLE ROW, STAGGERED, BALL
SELF-ALIGNMENT ANGLE	10.00 DEGREES NOMINAL
OVERALL LENGTH	1.7660 INCHES NOMINAL
BORE DIAMETER	0.1900 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	0.7810 INCHES NOMINAL
OUTER RING WIDTH	0.3380 INCHES NOMINAL
INNER RING WIDTH	0.4370 INCHES NOMINAL
LENGTH FROM BORE CENTER TO SHANK END	1.3750 INCHES NOMINAL
SHANK STYLE	651 EXTERNALLY THREADED
SHANK DIAMETER	0.3750 INCHES NOMINAL
SHANK THREAD LENGTH	0.7500 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	LEFT-HAND
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SHIELD QUANTITY	2
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL

Restrictions/Controls & Freight Information | NSN 3110-00-173-5062

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-173-5062

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
