NSN 3110-00-156-3469 S1255, S38639, SA2421PC5

Product Details | ANNULAR BALL BEARING

3110-00-156-3469 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: S1255, S38639, SA2421PC5, SP5336, E780035, E7800-35, FS87502, 1067739, 1255, 12MP10, 15A87, 202FSF, 202KLD, 202-KLD, 202KLDC1FS381A, 202LD, 50050, 5397695, 6211 , 701051, 701094 , 7033, 87502, 87502CE1SA2, 87502X1, 87502X1A, 87502X1C, 88502, 88502CE1SA2 , 920080205336, 920-08-020-5336, 989003, 3110-00-156-3469, 00-156-3469, 3110001563469, 001563469

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1961	00-156-3469	00014 ( BEARING, BALL, ANNULAR )

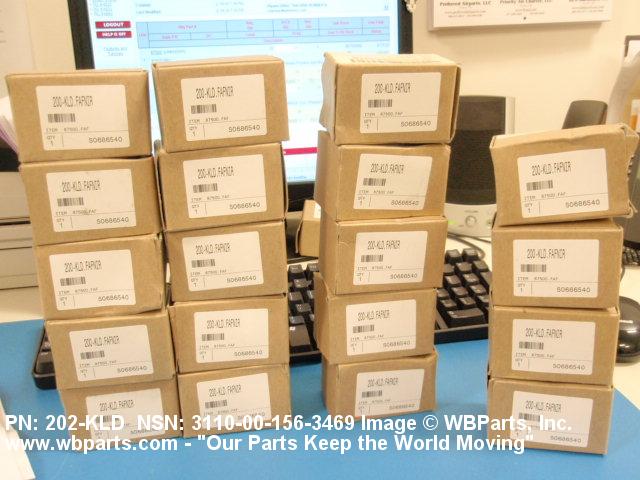

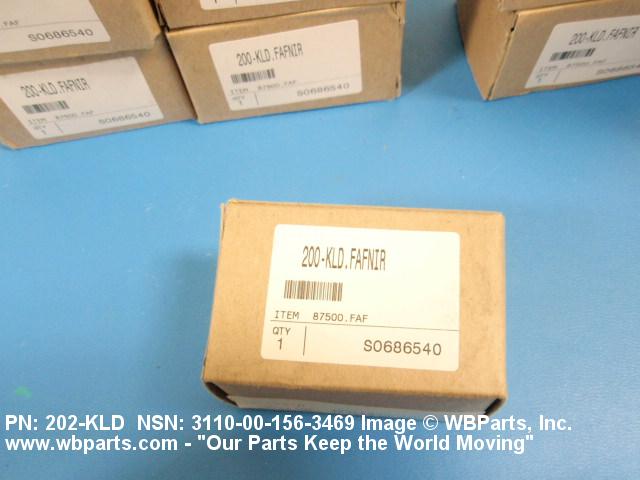

Drawings & Photos | NSN 3110-00-156-3469

Part Number	Request Date	QTY	Origin
FS87502	2024-09-270	45	Israel
7033	2023-05-125	1
1255	2023-04-94	1	US
1067739	2019-02-56	391	DIBBS
202KLDC1FS381A	2019-02-56	391	DIBBS
50050	2019-02-56	391	DIBBS
920-08-020-5336	2019-02-56	391	DIBBS
1067739	2019-02-45	391	DIBBS
202KLDC1FS381A	2019-02-45	391	DIBBS
50050	2019-02-45	391	DIBBS
920-08-020-5336	2019-02-45	391	DIBBS
3110-00-156-3469	2018-11-318	100	DIBBS
3110-00-156-3469	2012-03-88	2	US
87502	2011-12-360	2	US
87502	2011-06-156	2	CA
3110-00-156-3469	2010-12-338	1	US
3110-00-156-3469	2009-12-335	2	US
3110-00-156-3469	2009-11-328	21	DIBBS
87502	2008-12-344	28	Thailand
3110-00-156-3469	2008-11-324	21	DIBBS
3110-00-156-3469	2007-09-271	2	United States
3110-00-156-3469	2007-02-44	46	DIBBS

Cross Reference | NSN 3110-00-156-3469

Part Number	Cage Code	Manufacturer
1067739	12204	DAIMLER CHRYSLER
1255	55111	SKIL CORP
12MP10	05415	LINDE LIFT TRUCK CORP.
15A87	55111	SKIL CORP
202-KLD	0CAT7	GUSHER PUMPS
202FSF	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
202KLD	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202KLDC1FS381A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
202LD	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
3110001563469	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
50050	06350	ASSET SYSTEMS INC
5397695	72560	GENERAL MOTORS CORP DELCO PRODUCTS DIV
701051	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
7033	89944	KOLLSMAN, INC.
87502	24617	GENERAL MOTORS CORP
87502	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
87502CE1SA2	53035	NSK CORP BEARING DIV
87502X1	24617	GENERAL MOTORS CORP
87502X1	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
87502X1A	24617	GENERAL MOTORS CORP
87502X1A	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
87502X1C	24617	GENERAL MOTORS CORP
87502X1C	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
920-08-020-5336	83738	DELTA INTL MACHINERY CORP
989003	05415	LINDE LIFT TRUCK CORP.
989003	556A6	LINDE MATERIAL HANDLING NORTH AMERICA CORP
E7800-35	38151	MARATHON ELECTRIC MANUFACTURING CORPORATION
FS87502	21760	SCHATZ BEARING CORPORATION
S1255	30418	THOR POWER TOOL CO SUB OF STEWART-WARNER CO
S38639	11976	CHICAGO PNEUMATIC TOOL CO
SA2421PC5	07886	DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV
SA2421PC5	71313	VIKING TECHNOLOGIES, LTD.
SP5336	83738	DELTA INTL MACHINERY CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-156-3469

Compare

Related Products | NSN 3110-00-156-3469

3110-00-156-3470, 3110-00-156-3471, 3110-00-156-3472, 3110-00-156-3476, 3110-00-156-3477

Technical Data | NSN 3110-00-156-3469

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL OR STEEL CORROSION RESISTING RETAINER STEEL SEAL STEEL SHIELD
STYLE DESIGNATOR	42 NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	0.5000 INCHES NOMINAL
BORE DIAMETER	15.00 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	35.00 MILLIMETERS NOMINAL
OUTER RING WIDTH	0.4330 INCHES NOMINAL
INNER RING WIDTH	0.4800 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
SHIELD QUANTITY	1
SEAL QUANTITY	1
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
DEPARTURE FROM CITED DESIGNATOR	AS MODIFIED BY SHIELD QUANTITY

Restrictions/Controls & Freight Information | NSN 3110-00-156-3469

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-156-3469

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
