NSN 3110-00-156-3476 CWC88502 , CWC88502X1C, FFB171
Product Details | ANNULAR BALL BEARING
3110-00-156-3476 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: CWC88502 , CWC88502X1C, FFB171, WC88502, 1188181, 40229481, 402294-81, 426, 954297, 3110-00-156-3476, 00-156-3476, 3110001563476, 001563476
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-156-3476 | 00014 ( BEARING, BALL, ANNULAR ) |

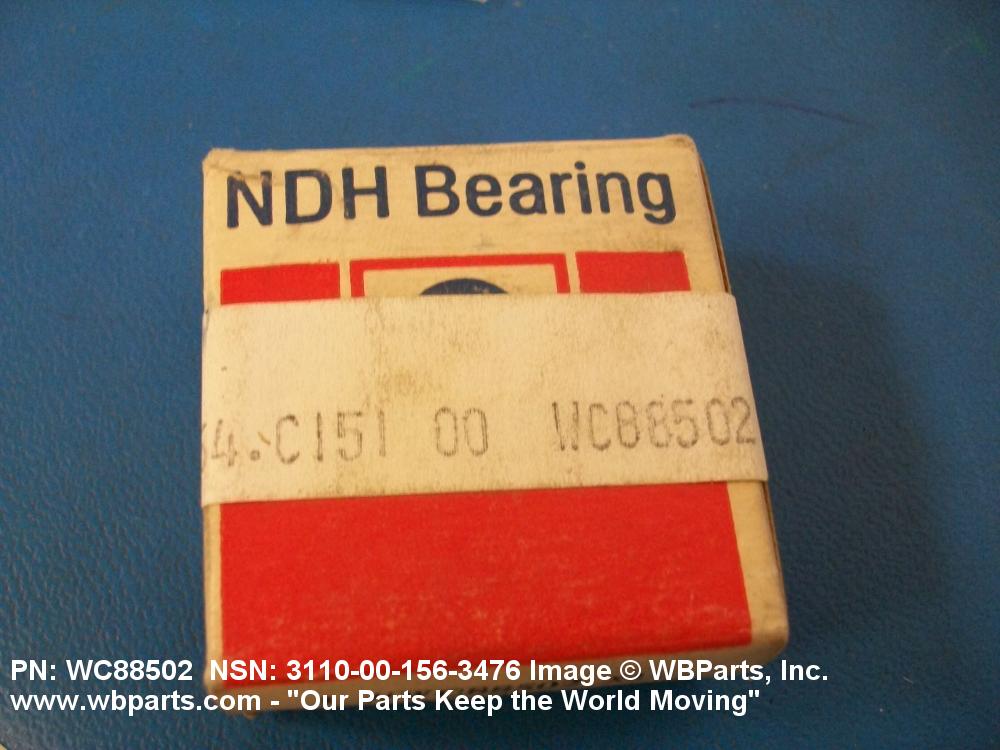

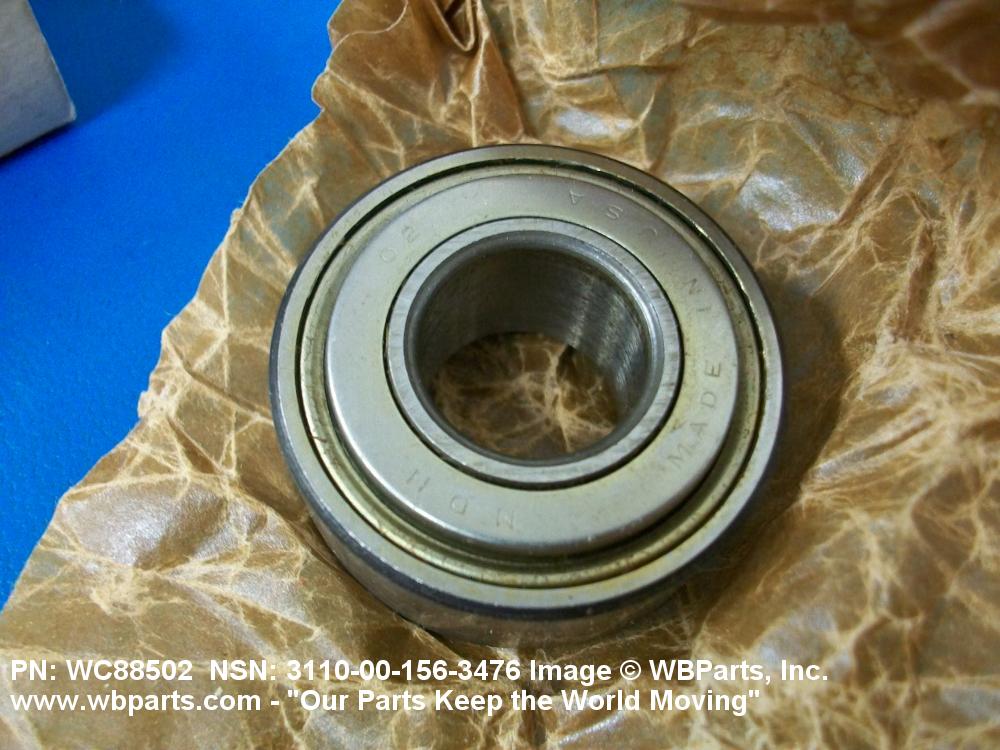

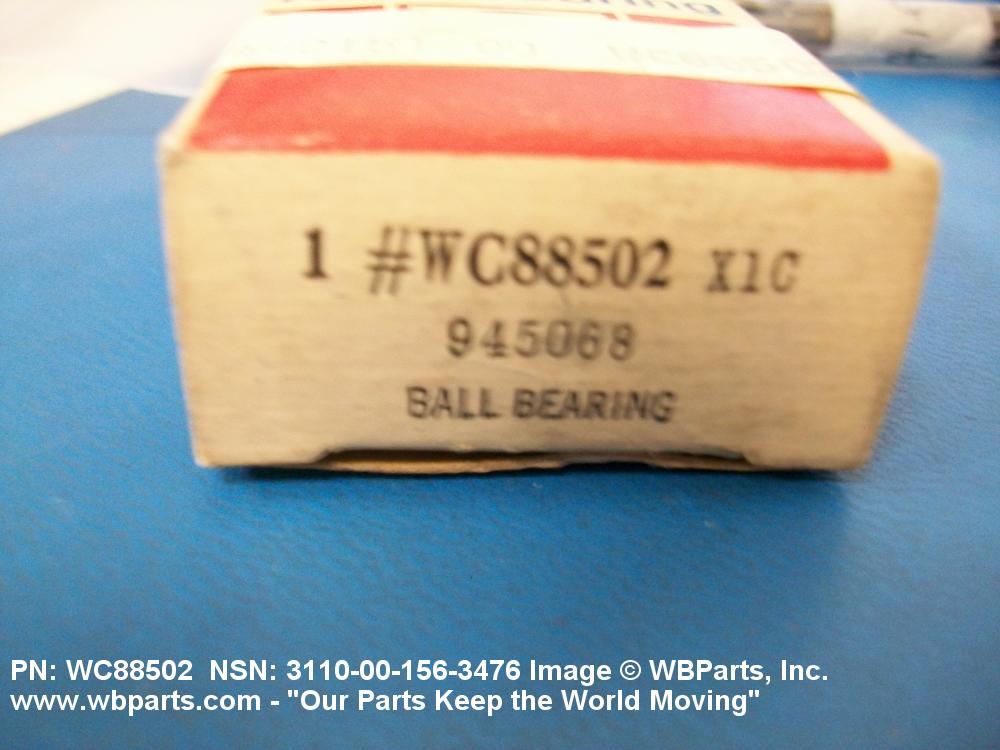

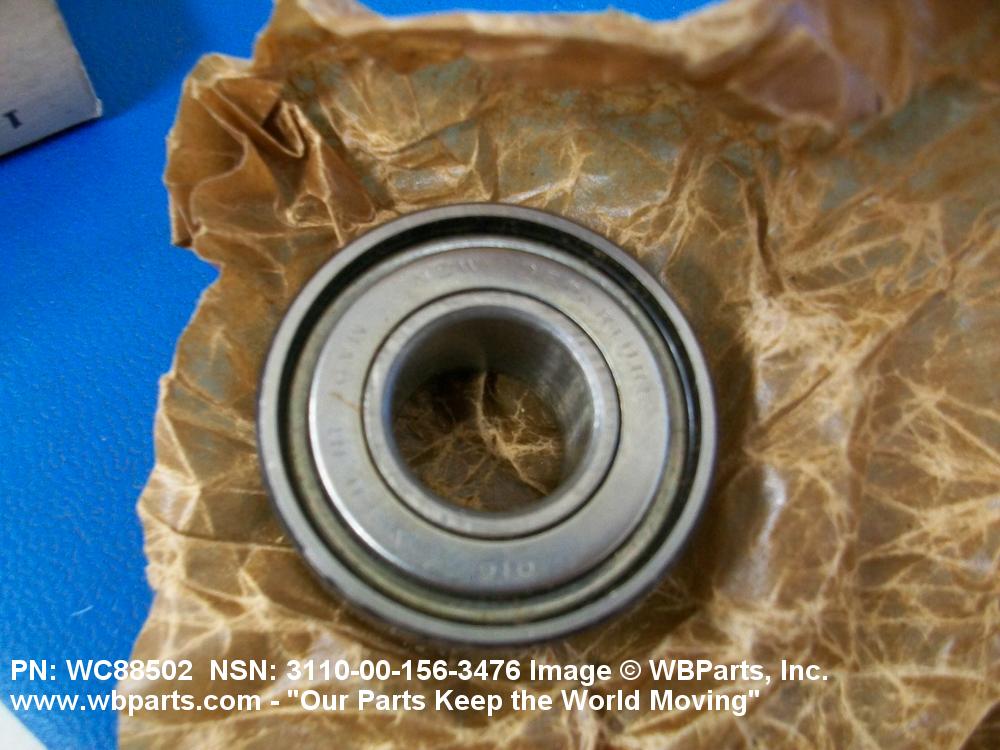

Drawings & Photos | NSN 3110-00-156-3476
Demand History | NSN 3110-00-156-3476
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFB171 | 2017-01-10 | 7 | US |
| FFB171 | 2013-01-11 | 22 | US |
| CWC88502 | 2011-08-234 | 8 | United States |
| FFB171 | 2008-11-317 | 8 | United States |
Cross Reference | NSN 3110-00-156-3476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1188181 | 65054 | WESTINGHOUSE ELECTRIC CORP POWER GENERATION-GENERATOR DIV |
| 1188181 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 402294-81 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 426 | 39320 | THEMAC INC |
| 954297 | 24617 | GENERAL MOTORS CORP |
| CWC88502 | 24617 | GENERAL MOTORS CORP |
| CWC88502 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| CWC88502 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| CWC88502X1C | 24617 | GENERAL MOTORS CORP |
| CWC88502X1C | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| CWC88502X1C | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| FFB171 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| WC88502 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-156-3476
Related Products | NSN 3110-00-156-3476
Technical Data | NSN 3110-00-156-3476
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL |
| STYLE DESIGNATOR | 44 NON-LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 15.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 35.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 0.5000 INCHES NOMINAL |
| INNER RING WIDTH | 0.5670 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 117 TYPE AND 2 CLASS |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY BALL BEARING STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFB171 |
Restrictions/Controls & Freight Information | NSN 3110-00-156-3476
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-156-3476
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
