NSN 3110-00-155-6298 A781260, A7812-60, A7812B60

Product Details | ANNULAR BALL BEARING

3110-00-155-6298 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: A781260, A7812-60, A7812B60, A-7812B-60, AA59585, A-A-59585, AA59585212JCBE, A-A-59585-212JCBE, B4-16, S386P421G01, SDD19631 ITEM N, SDD19631ITEMN, WST2736D30G04, FFB171, FF-B-171, FFB171/05J12C2B, FFB17105J12C2B, JHP124006, JHP124-006, B416, 142465-000, 1312FF, 177002-137, 26821919, 268219-19, 2736D30G04, 312FF, 312KDD, 312KDDFS381A, 312PP, 312PPG53S909, 312PPS909, 312SFF, 312SFFB1STA006A13C00000, 312SFFB1STA006A13C0000-0, 312SFFL108E006A11C00000, 312SFFL108E006A11C0000-0, 312SS, 312SZZ, 319687-253, 333P380G01, 36A280048028, 36A280048-028, 377053SS, 410765D, 60BC03PP, 63122Z, 6312-2Z, 6312-2Z/LHT55, 63122ZJ, 63122ZLHT55, 6312ZZ, 6312ZZCE1SA2, 77612, 77612XR1HA, 81467312, 81467-312, 831823, 3110-00-155-6298, 00-155-6298, 3110001556298, 001556298, 142465000, 319687253, 177002137

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1961	00-155-6298	00014 ( BEARING, BALL, ANNULAR )

Drawings & Photos | NSN 3110-00-155-6298

Part Number	Request Date	QTY	Origin
3110-00-155-6298	2022-10-300	17	DIBBS
3110-00-155-6298	2022-10-292	17	DIBBS
3110-00-155-6298	2021-08-225	2	CA
3110-00-155-6298	2019-05-134	1	United States
3110-00-155-6298	2019-03-81	66	United States
3110-00-155-6298	2017-11-307	1	DIBBS-KIT
FFB171	2017-01-10	7	US
3110-00-155-6298	2016-07-195	1	United States
3110-00-155-6298	2014-06-164	1	DIBBS-RFPs
FFB171	2013-01-11	22	US
B416	2012-05-145	1
3110-00-155-6298	2012-01-09	1	US
B416	2011-12-364	1
3110-00-155-6298	2011-12-339	2	US
AA59585	2011-10-299	1	Nigeria
3110-00-155-6298	2011-08-234	1055	DIBBS
AA59585	2011-03-87	1	US
3110-00-155-6298	2010-12-335	750	DIBBS
3110-00-155-6298	2010-05-145	279	DIBBS
3110-00-155-6298	2009-12-337	750	DIBBS
3110-00-155-6298	2009-10-281	1	US
3110-00-155-6298	2009-08-232	600	DIBBS
3110-00-155-6298	2009-03-64	1	US
FFB171	2008-11-317	8	United States
3110-00-155-6298	2008-05-130	159	DIBBS
63122Z	2008-01-22	10	US
FFB17105J12C2B	2007-09-255	3	US

Cross Reference | NSN 3110-00-155-6298

Part Number	Cage Code	Manufacturer
1312FF	21760	SCHATZ BEARING CORPORATION
142465-000	79938	EMERSON ELECTRIC CO U S ELECTRICAL MOTORS DIV
177002-137	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
268219-19	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2736D30G04	88725	WESTINGHOUSE ELECTRIC CORP GENERAL CONTROL DIV
312FF	39317	MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING.
312KDD	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
312KDDFS381A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
312PP	43991	FAG BEARINGS CORPORATION
312PPG53S909	43991	FAG BEARINGS CORPORATION
312PPS909	43991	FAG BEARINGS CORPORATION
312SFF	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
312SFFB1STA006A13C0000-0	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
312SFFL108E006A11C0000-0	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
312SS	01212	FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT
312SZZ	38843	SYSTRUCT INC
319687-253	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
333P380G01	01400	UNITED CORP THE
36A280048-028	01288	GENERAL ELECTRIC CO DIRECT CURRENT MOTOR AND GENERATOR
36A280048-028	03497	GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION
377053SS	83299	NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING
410765D	50380	RELIANCE ELECTRIC
60BC03PP	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
6312-2Z	52676	SKF USA INC.
6312-2Z/LHT55	52676	SKF USA INC.
63122ZJ	52676	SKF USA INC.
6312ZZ	52676	SKF USA INC.
6312ZZCE1SA2	53035	NSK CORP BEARING DIV
77612	24617	GENERAL MOTORS CORP
77612	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
77612XR1HA	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
81467-312	50380	RELIANCE ELECTRIC
831823	36156	LIMA ELECTRIC CO INC THE
A-7812B-60	38151	MARATHON ELECTRIC MANUFACTURING CORPORATION
A-A-59585	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A-A-59585-212JCBE	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A7812-60	92862	MARATHON FOUNDARY AND MACHINE CO
B4-16	54440	FABWRIGHT INC
FF-B-171	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB171/05J12C2B	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
JHP124-006	02032	HOLLINGSWORTH JOHN R CO
S386P421G01	11660	WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT
SDD19631 ITEM N	59180	IMO INDUSTRIES INC. DBA IMO PUMP DIVISION
WST2736D30G04	05643	BARBER-GREENE CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-155-6298

Compare

Related Products | NSN 3110-00-155-6298

3110-00-155-6300, 3110-00-155-6301, 3110-00-155-6302, 3110-00-155-6304, 3110-00-155-6305

Technical Data | NSN 3110-00-155-6298

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	31.0 MILLIMETERS NOMINAL

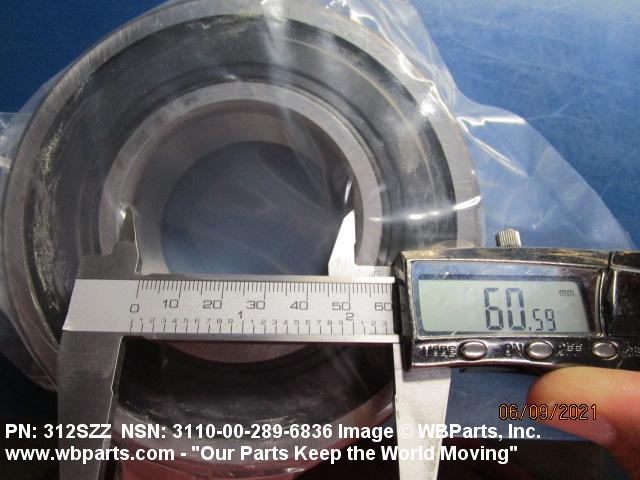

BORE DIAMETER	60.00 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	130.00 MILLIMETERS NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-18709 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SHIELD QUANTITY	2
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
NONDEFINITIVE SPEC/STD DATA	111 TYPE AND 3 CLASS AND 00 GRADE
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59585
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59585-212JCBE

Restrictions/Controls & Freight Information | NSN 3110-00-155-6298

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-155-6298

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
