NSN 3110-00-155-6302 M930030, M-9300-30, A7812R65

Product Details | ANNULAR BALL BEARING

3110-00-155-6302 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: M930030, M-9300-30, A7812R65, A-7812R-65, A7812R-65, AA59585, A-A-59585 , AA59585213JCBE, AA59585-213JCBE , H137172420, H13717-2420, H137172440, H13717-2440, L137245220B, L13724-5220B, L137245615E, L13724-5615E, RE362, YDM6760R, YDM-6760-R, FFB171, 313FF, 313KDD, 313KDDFS381A, 313PP, 313SFF, 313SS, 313Y, 319687-254, 337P893G01, 377053TT, 3N1965, 4109D41602, 46AX297, 51601984013, 51-601-984-013, 60A1360, 6312ZJMB01, 631-2ZJMB01, 6313 ZZ , 63132, 63132Z, 6313-2Z , 63132ZJ, 6313-2ZJ, 63132ZR, 6313-2ZR , 6313ZZ , 6313ZZCE1SA2, 658C03X30X26, 65BC03PP, 700415, 77613, 831816, 83181601, 831816-01, 1313FF, 15520, 26821922, 268219-22, 2736D20G05, 2X1039, 3110-00-155-6302, 00-155-6302, 3110001556302, 001556302, 319687254

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1961	00-155-6302	00014 ( BEARING, BALL, ANNULAR )

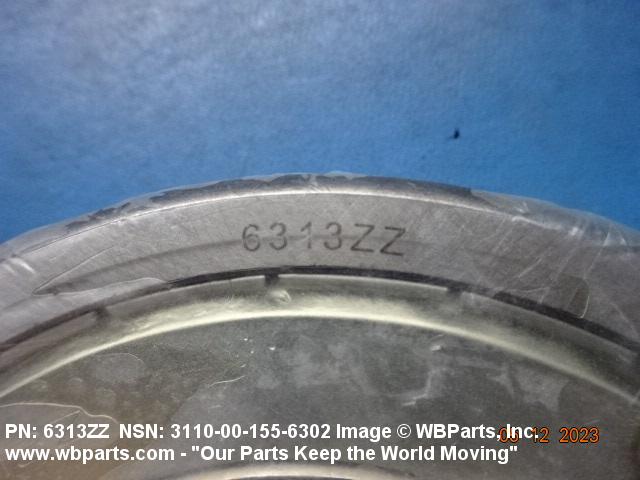

Drawings & Photos | NSN 3110-00-155-6302

Part Number	Request Date	QTY	Origin
3110-00-155-6302	2024-10-291	16	DIBBS
3110-00-155-6302	2024-07-200	7	DIBBS
3110-00-155-6302	2024-02-50	25	DIBBS
3110-00-155-6302	2023-11-323	7	DIBBS
3110-00-155-6302	2023-06-170	11	DIBBS
3110-00-155-6302	2023-03-83	6	United States
3110-00-155-6302	2023-03-82	6	United States
3110-00-155-6302	2022-06-165	52	TW
3110-00-155-6302	2022-01-29	1	Saudi Arabia
63132ZJ	2021-04-96	2	us
3110-00-155-6302	2021-01-28	55	DIBBS
3110-00-155-6302	2020-10-281	65	DIBBS
3110-00-155-6302	2020-03-82	80	DIBBS
3110-00-155-6302	2017-12-363	41	DIBBS
3110-00-155-6302	2017-12-353	41	DIBBS
700415	2017-10-300	3
FFB171	2017-01-10	7	US
63132Z	2015-10-293	2	United States
3110-00-155-6302	2015-08-240	1	DIBBS-RFPs
3110-00-155-6302	2015-08-233	115	DIBBS
3110-00-155-6302	2015-08-224	115	DIBBS
3110-00-155-6302	2015-04-107	111	DIBBS
3110-00-155-6302	2015-04-100	111	US
3110-00-155-6302	2015-04-99	111	DIBBS
3110-00-155-6302	2015-03-85	93	United States
3110-00-155-6302	2015-03-61	93	DIBBS
3110-00-155-6302	2015-02-53	93	DIBBS
3110-00-155-6302	2014-08-232	155	DIBBS
3110-00-155-6302	2013-10-282	171	DIBBS
3110-00-155-6302	2013-04-119	15	United States
FFB171	2013-01-11	22	US
AA59585	2011-10-299	1	Nigeria
AA59585	2011-03-87	1	US
3110-00-155-6302	2010-05-125	21	DIBBS
3110-00-155-6302	2010-04-102	10	PR
3110-00-155-6302	2009-03-64	2	US
FFB171	2008-11-317	8	United States

Cross Reference | NSN 3110-00-155-6302

Part Number	Cage Code	Manufacturer
1313FF	21760	SCHATZ BEARING CORPORATION
15520	36156	LIMA ELECTRIC CO INC THE
268219-22	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
2736D20G05	88725	WESTINGHOUSE ELECTRIC CORP GENERAL CONTROL DIV
2X1039	95201	NAPCO INTERNATIONAL LLC
313FF	39317	MCGILL MANUFACTURING COMPANY INC USE CAGE CODE 92563 FOR CATALOGING.
313FF	92563	MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION
313KDD	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
313KDDFS381A	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
313PP	43991	FAG BEARINGS CORPORATION
313SFF	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
313SS	01212	FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT
313Y	99993	DEPARTMENT OF THE NAVY
319687-254	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
337P893G01	88301	MYSTIK TAPE CORP
377053TT	83299	NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING
3N1965	11083	CATERPILLAR INC. DBA CATERPILLAR
4109D41602	88301	MYSTIK TAPE CORP
46AX297	76040	MACK TRUCKS INC PARTS OPN
46AX297	76084	MACK TRUCKS INC
51-601-984-013	92392	ALLIS-CHALMERS CORP
60A1360	18990	EAGLE CRUSHER CO INC
631-2ZJMB01	52676	SKF USA INC.
6313 ZZ	F0673	NTN-SNR ROULEMENTS
6313 ZZ	FA1N1	KOYO FRANCE SA
6313-2Z	52676	SKF USA INC.
6313-2Z	F0272	SKF FRANCE
6313-2Z	F9547	NSK FRANCE SA
6313-2ZJ	52676	SKF USA INC.
6313-2ZR	F0563	SCHAEFFLER FRANCE
6313-2ZR	F0937	FAG FRANCE SA
63132	52676	SKF USA INC.
63132ZJ	52676	SKF USA INC.
6313ZZ	1A98F	HI AIRHI-PRES KOREA CO.LTD
6313ZZ	52676	SKF USA INC.
6313ZZ	80064	NAVAL SHIP SYSTEMS COMMAND
6313ZZ	F9547	NSK FRANCE SA
6313ZZCE1SA2	53035	NSK CORP BEARING DIV
658C03X30X26	50380	RELIANCE ELECTRIC
65BC03PP	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
77613	24617	GENERAL MOTORS CORP
77613	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
831816	36156	LIMA ELECTRIC CO INC THE
831816-01	36156	LIMA ELECTRIC CO INC THE
A-7812R-65	76117	MARATHON ELECTRIC MFG CORP WEST PLAINS DIV
A-A-59585	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A7812R-65	38151	MARATHON ELECTRIC MANUFACTURING CORPORATION
AA59585-213JCBE	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
H13717-2420	50870	ARNOLD A. SEMLER, INC. DBA ASSOCIATED INDUSTRIES
H13717-2440	50870	ARNOLD A. SEMLER, INC. DBA ASSOCIATED INDUSTRIES
L13724-5220B	50870	ARNOLD A. SEMLER, INC. DBA ASSOCIATED INDUSTRIES
L13724-5615E	50870	ARNOLD A. SEMLER, INC. DBA ASSOCIATED INDUSTRIES
M-9300-30	36232	LINCOLN ELECTRIC HOLDINGS INC.
RE362	81240	WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT INC
YDM-6760-R	70433	APPLETON MARINE, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-155-6302

Compare

Related Products | NSN 3110-00-155-6302

3110-00-155-6304, 3110-00-155-6305, 3110-00-155-6306, 3110-00-155-6312, 3110-00-155-6314

Technical Data | NSN 3110-00-155-6302

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	33.0 MILLIMETERS NOMINAL
BORE DIAMETER	65.00 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	140.00 MILLIMETERS NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SHIELD QUANTITY	2
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
NONDEFINITIVE SPEC/STD DATA	111 TYPE AND 3 CLASS AND 00 GRADE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFB171

Restrictions/Controls & Freight Information | NSN 3110-00-155-6302

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-155-6302

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
