NSN 3110-00-155-6295 AA59585, A-A-59585 , AA59585212JAAT

Product Details | ANNULAR BALL BEARING

3110-00-155-6295 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: AA59585, A-A-59585 , AA59585212JAAT, AA59585-212JAAT , AA59585212JACT, AA59585-212JACT , AFBMA60BC03J3, FFB171, FFB171/05J12A3E, FFB17105J12A3E, P312K, 312K2, 3312L, 3312L1A, 36964064, 369640-64, 4168213FN, 60BC03J3, 60BC03J30X, 60BC03J3A, 6312C3, 6312-C3, 6312JC3, 76029, 760-29, 973550R91, 235A2509AC12, 3110-00-155-6295, 00-155-6295, 3110001556295, 001556295

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-155-6295	00014 ( BEARING, BALL, ANNULAR )

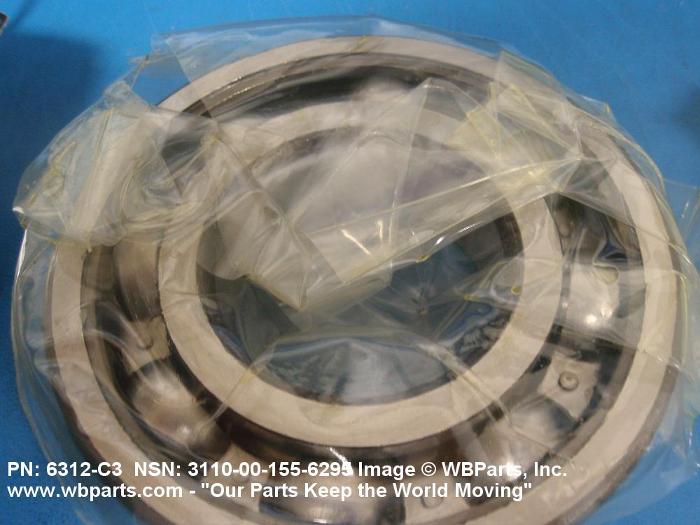

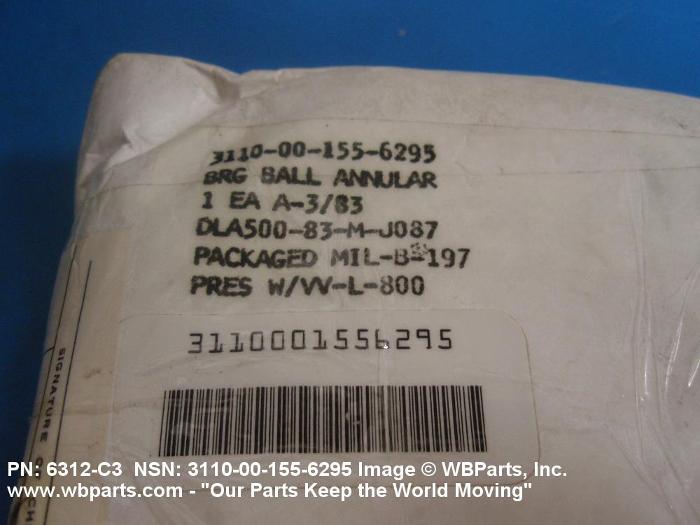

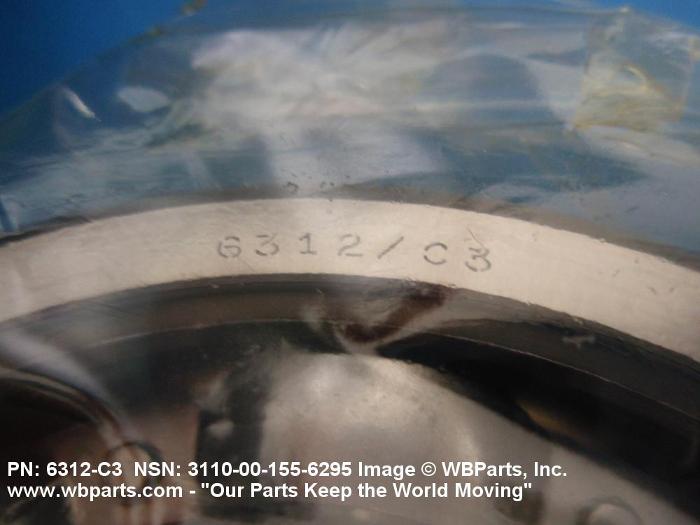

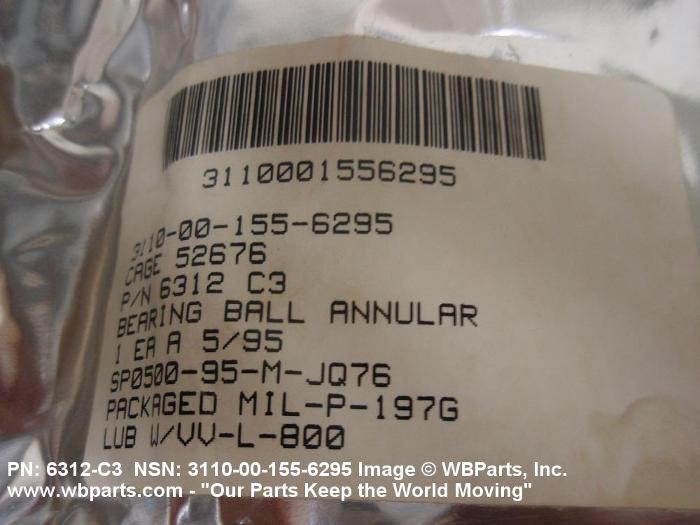

Drawings & Photos | NSN 3110-00-155-6295

Part Number	Request Date	QTY	Origin
3110-00-155-6295	2020-05-142	1	US
3110-00-155-6295	2020-03-78	66	DIBBS
3110-00-155-6295	2019-09-262	51	DIBBS
FFB171	2017-01-10	7	US
FFB171	2013-01-11	22	US
3110-00-155-6295	2012-08-242	5	DIBBS
6312C3	2012-02-51	8	SA
AA59585	2011-10-299	1	Nigeria
60BC03J30X	2011-06-166	3	CN
3110-00-155-6295	2011-06-152	6	US
3110-00-155-6295	2011-05-150	6	CN
3110-00-155-6295	2011-04-91	4	DIBBS
AA59585	2011-03-87	1	US
4168213FN	2011-01-25	18	us
60BC03J30X	2010-11-334	1	MX
3110-00-155-6295	2010-11-323	4	DIBBS
3110-00-155-6295	2010-06-175	1	US
3110-00-155-6295	2010-03-61	1	US
FFB171	2008-11-317	8	United States
3110-00-155-6295	2008-08-238	2	United States
3110-00-155-6295	2008-07-190	1	US

Cross Reference | NSN 3110-00-155-6295

Part Number	Cage Code	Manufacturer
235A2509AC12	12532	GENERAL ELECTRIC CO MOTOR BUSINESS GROUP
312K2	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
3312L	24617	GENERAL MOTORS CORP
3312L	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
3312L1A	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
369640-64	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
4168213FN	50380	RELIANCE ELECTRIC
60BC03J3	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
60BC03J30X	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
60BC03J3A	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
6312-C3	52676	SKF USA INC.
6312JC3	52676	SKF USA INC.
760-29	72957	ELLIOTT COMPANY DIV JEANNETTE
973550R91	29930	INTERNATIONAL HARVESTER CO AGRICULTURAL EQUIPMENT DIV
973550R91	31007	NAVISTAR INTL CORP
A-A-59585	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59585-212JAAT	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59585-212JACT	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AFBMA60BC03J3	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
FFB171	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB171/05J12A3E	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
P312K	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-155-6295

Compare

Related Products | NSN 3110-00-155-6295

3110-00-155-6296, 3110-00-155-6297, 3110-00-155-6298, 3110-00-155-6300, 3110-00-155-6301

Technical Data | NSN 3110-00-155-6295

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	31.0 MILLIMETERS NOMINAL
BORE DIAMETER	60.0 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	130.0 MILLIMETERS NOMINAL
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	LOOSE
NONDEFINITIVE SPEC/STD DATA	111 TYPE AND 1 CLASS AND 00 GRADE
DEPARTURE FROM CITED DESIGNATOR	AS MODIFIED BY INTERNAL FIT-UP DESIGNATION
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFB171
MANUFACTURERS CODE	81348
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFB171/05J12A3E

Restrictions/Controls & Freight Information | NSN 3110-00-155-6295

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-155-6295

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
