NSN 3110-00-120-0739 159306, 2027945, 202794-5
Product Details | TAPERED ROLLER BEARING
3110-00-120-0739 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Part Alternates: 159306, 2027945, 202794-5, 2800381, 280038-1, 2X46, 6160478, 78251D78551, 3110-00-120-0739, 00-120-0739, 3110001200739, 001200739
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-120-0739 | 00021 ( BEARING, ROLLER, TAPERED ) |
Drawings & Photos | NSN 3110-00-120-0739
Cross Reference | NSN 3110-00-120-0739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 159306 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 202794-5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 280038-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2X46 | 57533 | STEEGO CORP |
| 6160478 | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 6160478 | 28265 | HERCULES ENGINE CO INC |
| 78251D78551 | 60038 | TIMKEN CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-120-0739
Technical Data | NSN 3110-00-120-0739
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

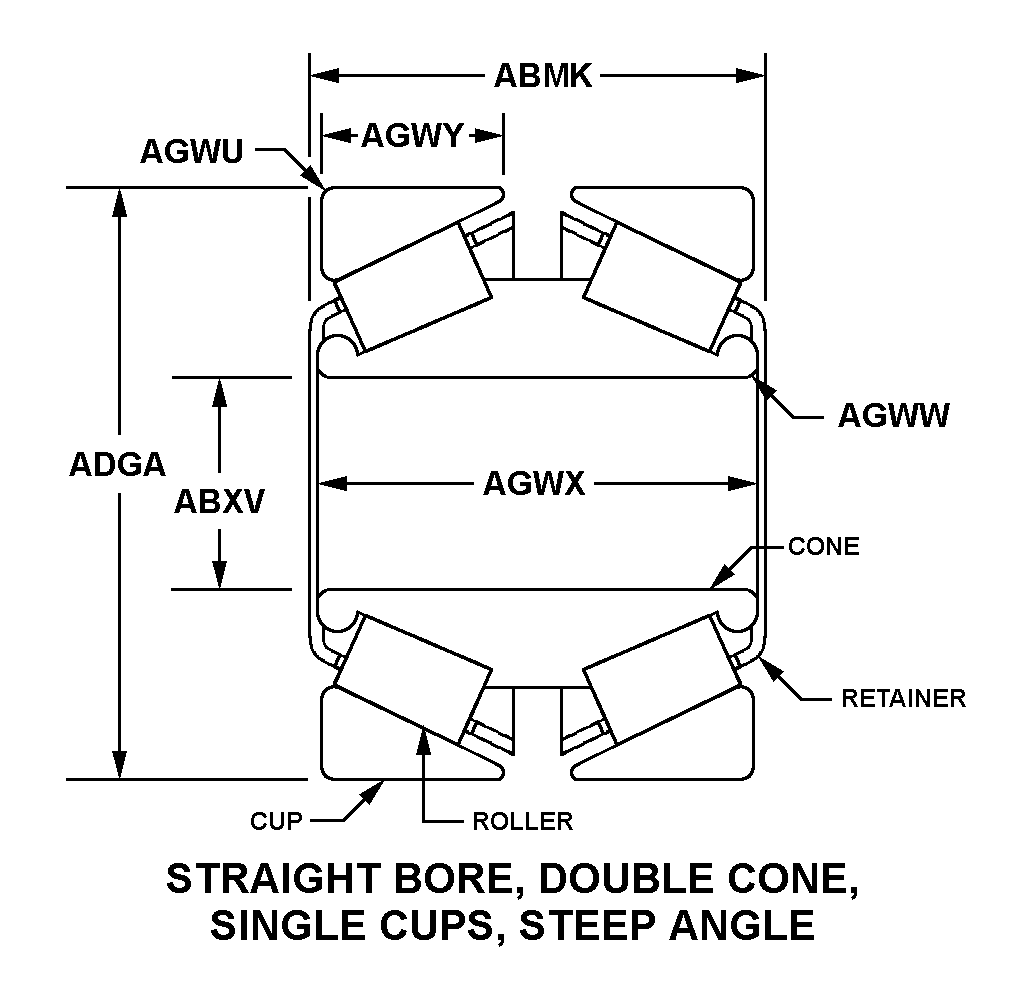

| STYLE DESIGNATOR | 386 STRAIGHT BORE, DOUBLE CONE, SINGLE CUPS, STEEP ANGLE |
| OVERALL WIDTH | 2.6020 INCHES NOMINAL |
| BORE DIAMETER | 2.5000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 5.5130 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.0930 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.0930 INCHES NOMINAL |
| CONE WIDTH | 2.5980 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
Restrictions/Controls & Freight Information | NSN 3110-00-120-0739
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-120-0739
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
