NSN 3110-00-100-4223 MS19081181, MS19081-181, AA59649

Product Details | TAPERED ROLLER BEARING

3110-00-100-4223 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.

Part Alternates: MS19081181, MS19081-181, AA59649, A-A-59649, AA59649633, AA59649-633, FF-B-187/01, FFB187/01-633, FFB18701, FFB18701633, 141376H, 300592A596, 596592A, 596-592A, 7001726, 703077, 3110-00-100-4223, 00-100-4223, 3110001004223 , 001004223

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-100-4223	00021 ( BEARING, ROLLER, TAPERED )

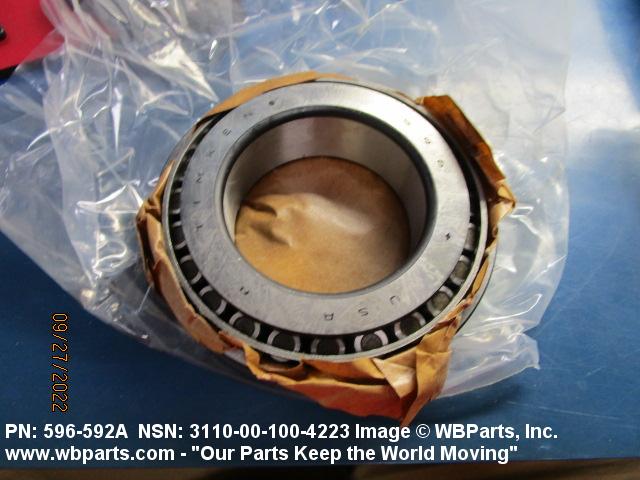

Drawings & Photos | NSN 3110-00-100-4223

Part Number	Request Date	QTY	Origin
3110-00-100-4223	2023-06-153	54	Taiwan
3110-00-100-4223	2022-07-189	16	Taiwan
3110-00-100-4223	2022-03-85	16	TW
3110-00-100-4223	2021-03-83	18	TW
3110-00-100-4223	2020-10-295	16	US
3110-00-100-4223	2019-08-226	54	TW
3110-00-100-4223	2019-07-186	54	TW
3110-00-100-4223	2017-06-177	4	MANUAL
MS19081-181	2017-06-177	4	US
703077	2014-06-177	12	United States
AA59649	2013-01-11	12	US
3110-00-100-4223	2012-03-86	2	AE
3110-00-100-4223	2010-08-234	4	US
3110-00-100-4223	2009-10-279	1514	DIBBS
3110-00-100-4223	2009-09-264	2000	DIBBS
3110-00-100-4223	2009-08-229	2000	DIBBS
3110-00-100-4223	2009-08-215	1382	DIBBS
3110-00-100-4223	2008-12-343	2200	DIBBS
3110-00-100-4223	2008-11-331	700	DIBBS
3110-00-100-4223	2008-10-297	1100	DIBBS
3110-00-100-4223	2008-08-242	907	DIBBS
3110-00-100-4223	2008-05-126	403	DIBBS
3110-00-100-4223	2008-05-126	400	DIBBS
3110-00-100-4223	2008-04-119	688	DIBBS
3110-00-100-4223	2008-01-11	1046	DIBBS
3110-00-100-4223	2007-10-278	851	United States
3110-00-100-4223	2007-09-261	354	DIBBS
3110-00-100-4223	2007-06-157	1742	DIBBS
3110-00-100-4223	2007-05-126	1637	DIBBS
3110-00-100-4223	2007-03-89	1719	DIBBS
3110-00-100-4223	2007-03-67	1109	DIBBS
3110-00-100-4223	2007-02-41	851	DIBBS
3110-00-100-4223	2006-07-189	3	DIBBS

Cross Reference | NSN 3110-00-100-4223

Part Number	Cage Code	Manufacturer
141376H	31007	NAVISTAR INTL CORP
141376H	89346	NAVISTAR INTL CORP TRUCK BR
300592A596	97674	CONE DRIVE OPERATIONS INC.
3110001004223	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
596-592A	01212	FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT
596-592A	60038	TIMKEN CORPORATION, THE
7001726	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
703077	21450	ARMY WEAPONS COMMAND ATTN AMSWE-REE-S
A-A-59649	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59649-633	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
FF-B-187/01	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FFB187/01-633	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS19081-181	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-100-4223

Compare

Related Products | NSN 3110-00-100-4223

3110-00-100-4224, 3110-00-100-4225, 3110-00-100-4226, 3110-00-100-4228, 3110-00-100-4231

Technical Data | NSN 3110-00-100-4223

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	350 STRAIGHT BORE, NORMAL ANGLE

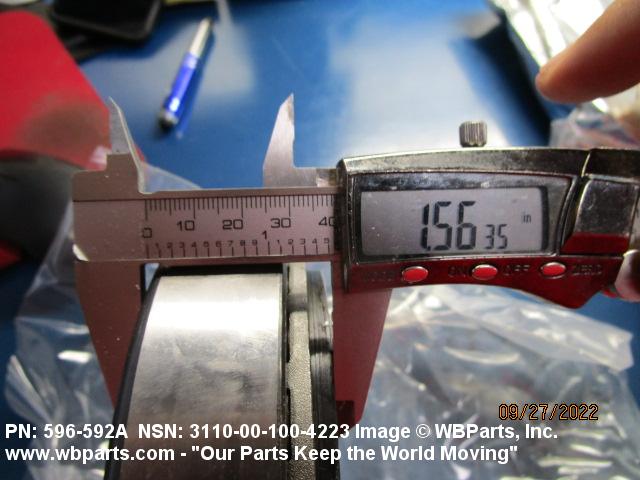

OVERALL WIDTH	1.5625 INCHES NOMINAL

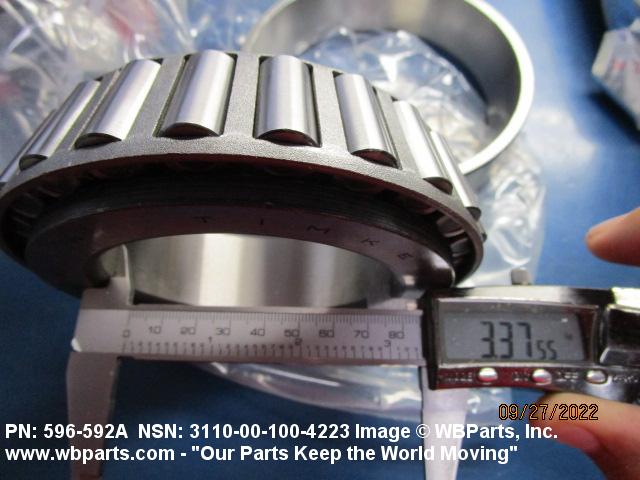

BORE DIAMETER	3.3750 INCHES NOMINAL

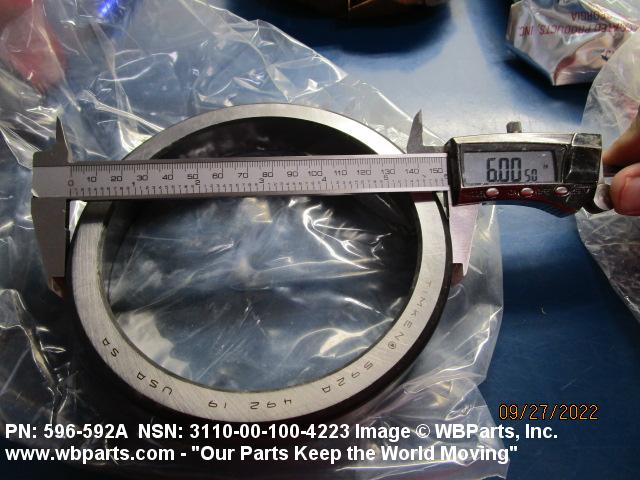

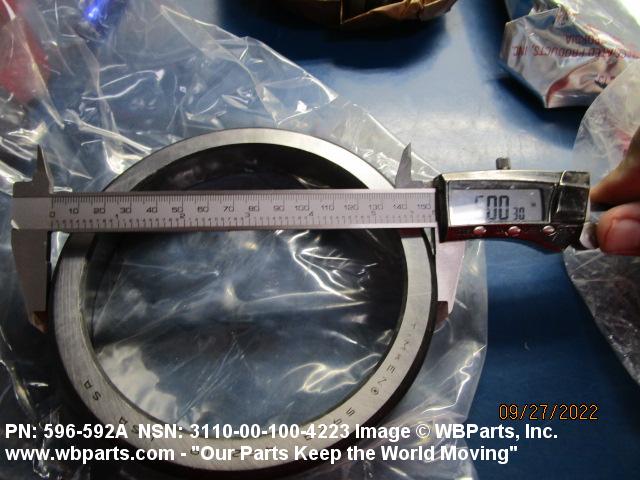

OVERALL OUTSIDE DIAMETER	6.0000 INCHES NOMINAL
BACKFACE CORNER RADIUS	0.1250 INCHES NOMINAL
STANDOUT WIDTH	0.3750 INCHES NOMINAL
CONE CORNER RADIUS	0.1400 INCHES NOMINAL
CONE WIDTH	1.4300 INCHES NOMINAL

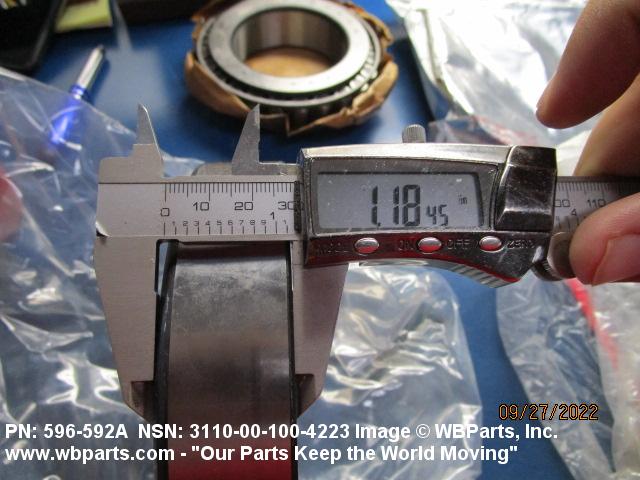

CUP WIDTH	1.1875 INCHES NOMINAL
STANDARD TOLERANCE DESIGNATION	AFBMA CLASS 2
RETAINER FABRICATION METHOD	PRESSED
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-B-187/01
MANUFACTURERS CODE	81348
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFB187/01-633

Restrictions/Controls & Freight Information | NSN 3110-00-100-4223

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-100-4223

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
