NSN 3110-00-076-3363 HH224346, HH-224346, 01113-0365-5 ITEM 6-11
Product Details | TAPERED ROLLER BEARING CONE AND ROLLERS
3110-00-076-3363 An assembled inner component of a tapered roller bearing, consisting of a cone (which provides a contact surface for the rolling elements of the bearing), a complement of tapered rollers (the rolling elements), and frequently a retainer (which spaces the rolling elements).
Part Alternates: HH224346, HH-224346, 01113-0365-5 ITEM 6-11, 0111303655ITEM611, 03-113-0632-3 S/N 13122/131123, 0311306323SN13122131123, 3110-00-076-3363, 00-076-3363, 3110000763363, 000763363
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-076-3363 | 00023 ( CONE AND ROLLERS, TAPERED ROLLER BEARING ) |

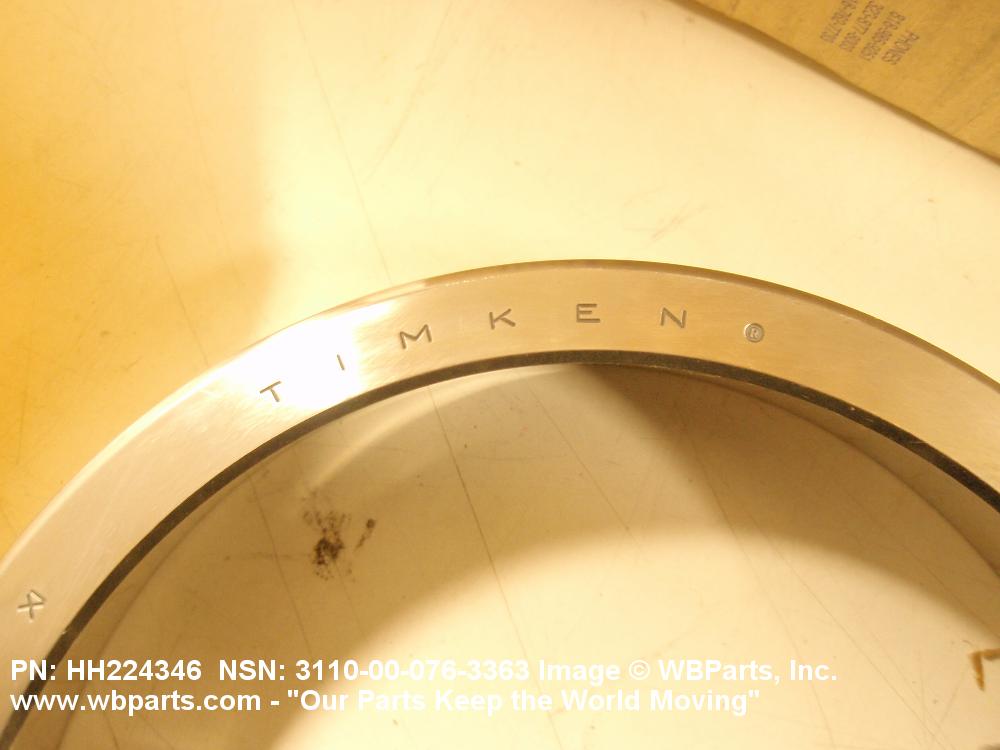

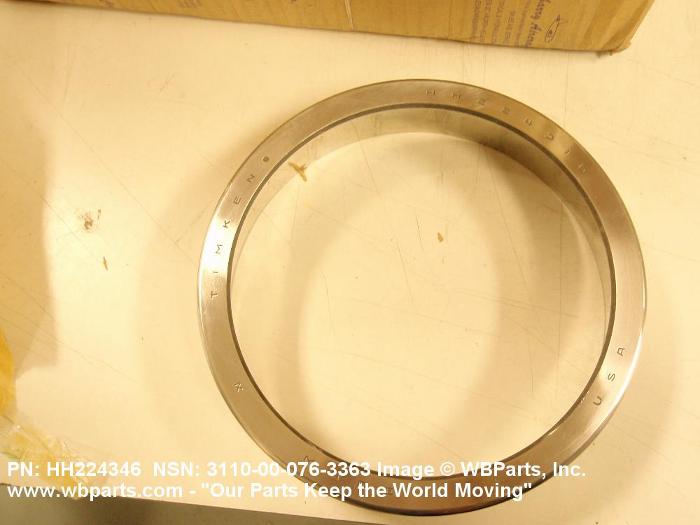

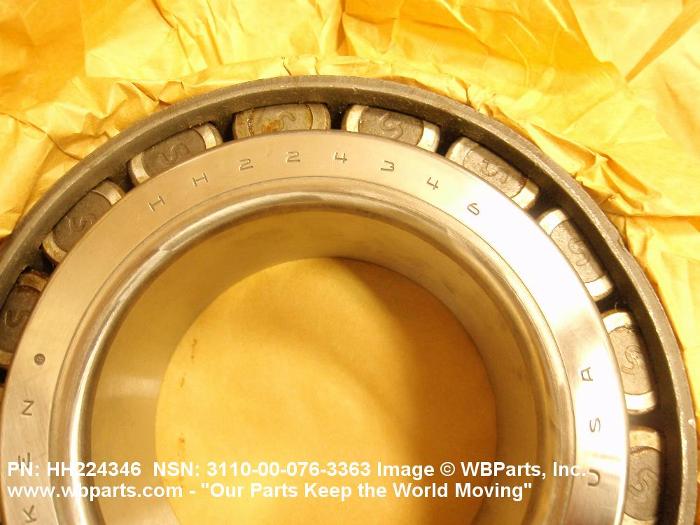

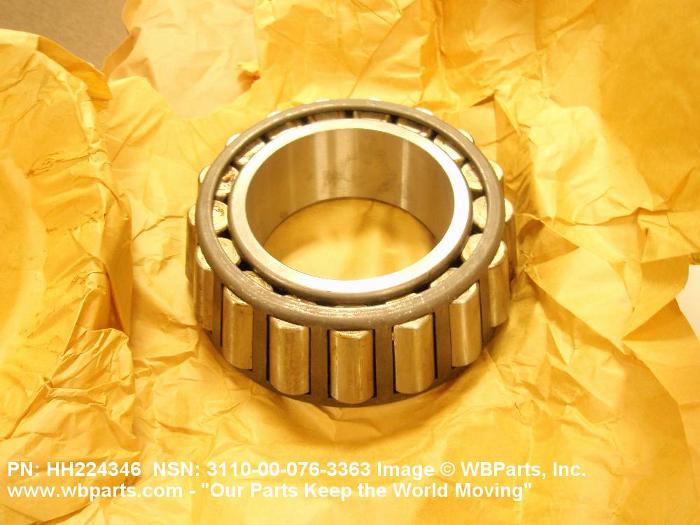

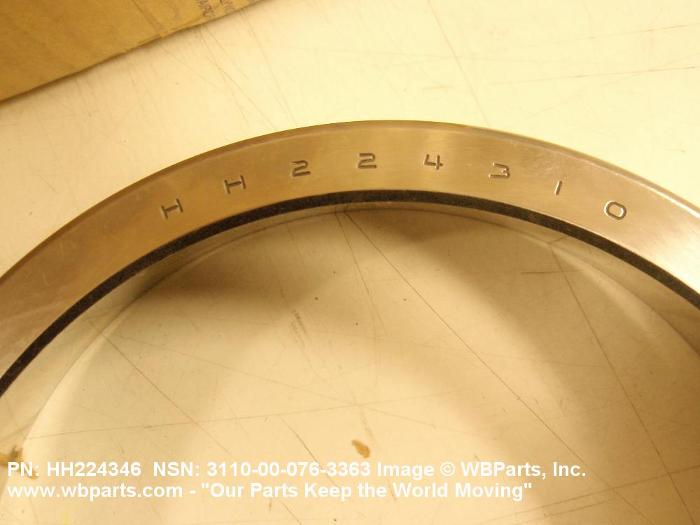

Drawings & Photos | NSN 3110-00-076-3363
Demand History | NSN 3110-00-076-3363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HH224346 | 2009-07-205 | 2 | US |
| HH224346 | 2008-12-353 | 4 | United States |
| HH224346 | 2008-09-246 | 4 | United States |
| HH224346 | 2008-05-137 | 2 | Canada |
Cross Reference | NSN 3110-00-076-3363
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01113-0365-5 ITEM 6-11 | 17454 | TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR |
| 03-113-0632-3 S/N 13122/131123 | 17454 | TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR |
| HH-224346 | 17454 | TIMKEN GEARS & SERVICES INC. DBA PHILADELPHIA GEAR |
| HH224346 | 60038 | TIMKEN CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-076-3363
Technical Data | NSN 3110-00-076-3363
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 552 NORMAL ANGLE |
| BORE DIAMETER | 4.5000 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.2810 INCHES NOMINAL |
| CONE WIDTH | 2.6250 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
Restrictions/Controls & Freight Information | NSN 3110-00-076-3363
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-076-3363
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
