NSN 3110-00-100-3700 M681B, M6-81B, A0S465

Product Details | TAPERED ROLLER BEARING CONE AND ROLLERS

3110-00-100-3700 An assembled inner component of a tapered roller bearing, consisting of a cone (which provides a contact surface for the rolling elements of the bearing), a complement of tapered rollers (the rolling elements), and frequently a retainer (which spaces the rolling elements).

Part Alternates: M681B, M6-81B, A0S465, AA59649, AA59649043A, AA59649-043A , BT07100, EL 301-1 PIECE, EL3011PIECE, 0541489-00, 07100, 07193, 102893, 103S9, 1092 , 10A6713, 116476, 152R4, 21109, 387598, 62AX202, 631438, 950222, 95-0222, 3110-00-100-3700, 00-100-3700, 3110001003700, 054148900, 001003700

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1961	00-100-3700	00023 ( CONE AND ROLLERS, TAPERED ROLLER BEARING )

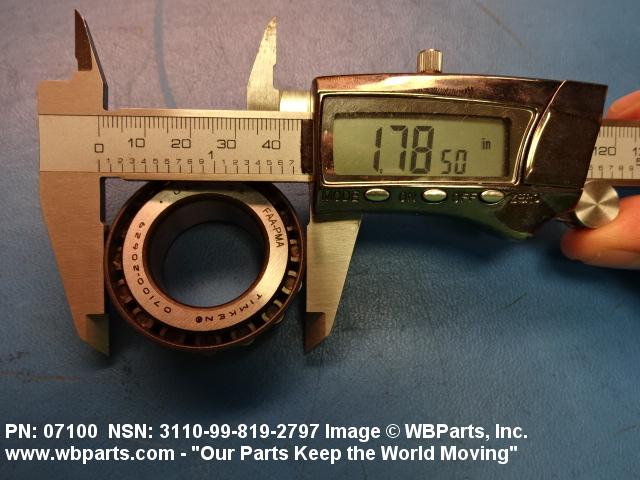

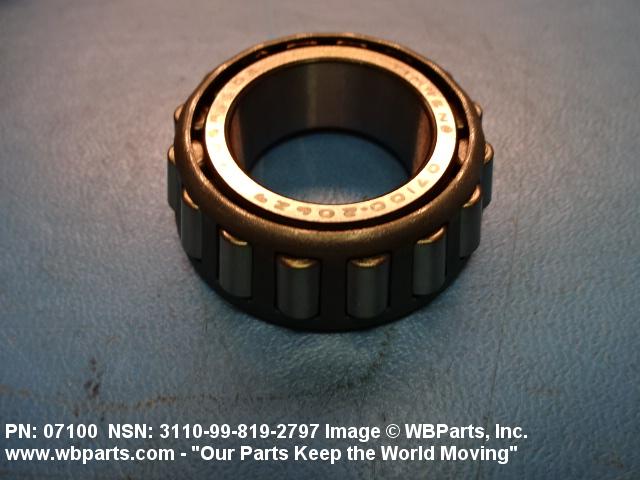

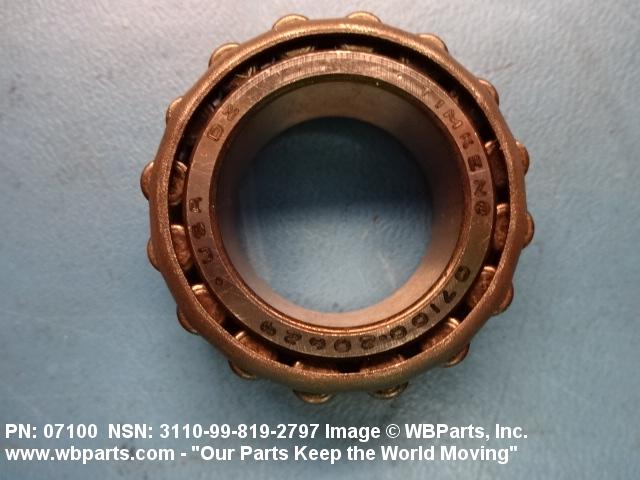

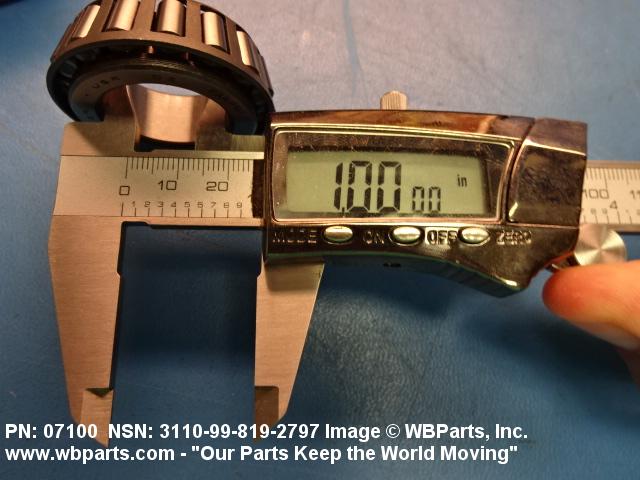

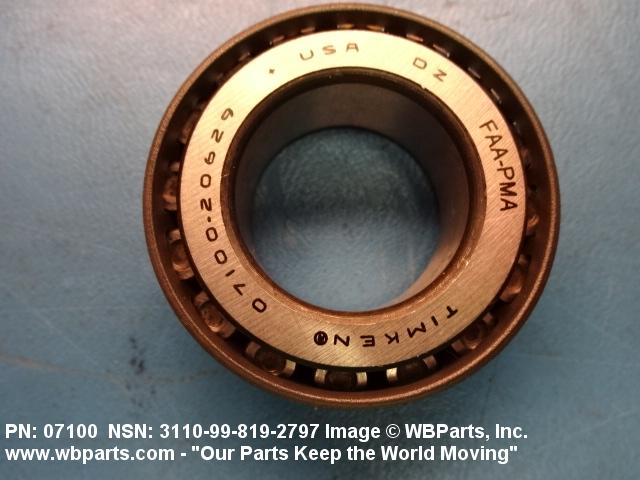

Drawings & Photos | NSN 3110-00-100-3700

Part Number	Request Date	QTY	Origin
07100	2021-06-179	3	United States
07100	2019-05-143	3	United States
3110-00-100-3700	2017-10-275	68	Malaysia
3110-00-100-3700	2017-09-271	68	Malaysia
07100	2017-01-19	2	United States
3110-00-100-3700	2014-09-246	1025	DIBBS
3110-00-100-3700	2014-06-161	527	DIBBS
3110-00-100-3700	2014-03-72	655	DIBBS
3110-00-100-3700	2013-11-324	437	DIBBS
3110-00-100-3700	2013-11-315	437	DIBBS
3110-00-100-3700	2013-09-269	445	DIBBS
3110-00-100-3700	2013-09-254	445	DIBBS
3110-00-100-3700	2013-04-99	8	DIBBS
3110-00-100-3700	2013-04-99	500	DIBBS
3110-00-100-3700	2013-03-79	8	DIBBS
3110-00-100-3700	2013-03-79	500	DIBBS
3110-00-100-3700	2013-02-37	64	DIBBS
AA59649	2013-01-11	12	US
21109	2010-10-299	4	PT
1092	2009-05-128	1	France

Cross Reference | NSN 3110-00-100-3700

Part Number	Cage Code	Manufacturer
0541489-00	08722	DUFF-NORTON CO INC
07100	01212	FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT
07100	05415	LINDE LIFT TRUCK CORP.
07100	51588	RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION
07100	60038	TIMKEN CORPORATION, THE
07100	61220	TYSON BEARING CO DIV SKF INDUSTRIES INC
07193	30955	BRUNNER AND LAY INC ROK-BIT DIV
102893	81795	ALLIANZ SWEEPER COMPANY
103S9	06840	BENDIX CORP THE
103S9	55284	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
1092	01083	MODERN SUSPENSION SYSTEMS INC DBA ROCKFORD METAL PRODUCTS DIV
10A6713	81240	WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT INC
116476	24617	GENERAL MOTORS CORP
152R4	42138	HARBORMASTER MARINE, INCORPORATED
21109	06840	BENDIX CORP THE
21109	14892	BENDIX CORP THE BRAKE AND STEERING DIV
387598	01957	ACF INDUSTRIES INC
62AX202	76084	MACK TRUCKS INC
631438	23705	FRUEHAUF CORP
95-0222	0B9R9	MEGGITT AIRCRAFT BRAKING SYSTEMS CORPORATION
95-0222	25500	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
95-0222	73842	GOODYEAR TIRE AND RUBBER CO THE
A0S465	55396	SMITH OTIS A MFG CO
AA59649	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59649-043A	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
BT07100	01212	FEDERAL-MOGUL CORP GOVERNMENT SALES DEPT
EL 301-1 PIECE	30177	IWC LLC DBA IDEAL WINDLASS COMPANY
M6-81B	04522	CLAUSING CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-100-3700

Compare

Related Products | NSN 3110-00-100-3700

3110-00-100-3701, 3110-00-100-3703, 3110-00-100-3704, 3110-00-100-3705, 3110-00-100-3706

Technical Data | NSN 3110-00-100-3700

Characteristic	Specifications
MATERIAL	STEEL OVERALL
STYLE DESIGNATOR	552 NORMAL ANGLE
BORE DIAMETER	1.0000 INCHES NOMINAL
CONE CORNER RADIUS	0.0400 INCHES NOMINAL
CONE WIDTH	0.5614 INCHES NOMINAL
STANDARD TOLERANCE DESIGNATION	AFBMA CLASS 2

Restrictions/Controls & Freight Information | NSN 3110-00-100-3700

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-100-3700

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
