NSN 3040-01-338-7606 1836480, 01-338-7606, 013387606
Product Details | HELICAL GEARSHAFT
3040-01-338-7606 A gearshaft with a single complement of helical gear teeth. For items with more than one complement of teeth, see GEARSHAFT (1), MULTIPLE GEARS.
Part Alternates: 1836480, 3040-01-338-7606, 01-338-7606, 3040013387606, 013387606
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 10 MAY 1991 | 01-338-7606 | 60539 ( GEARSHAFT, HELICAL ) |

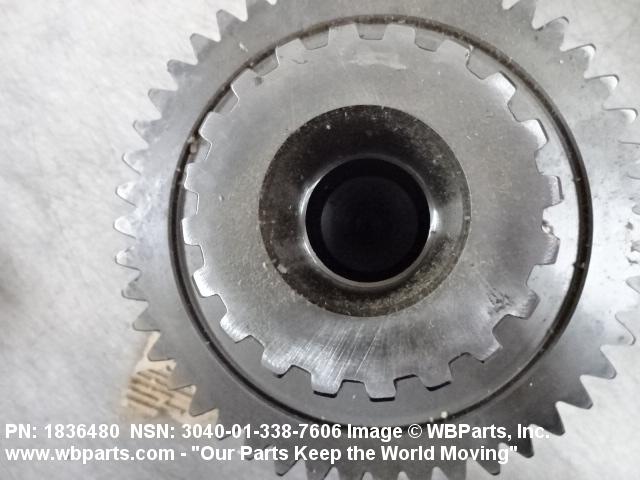

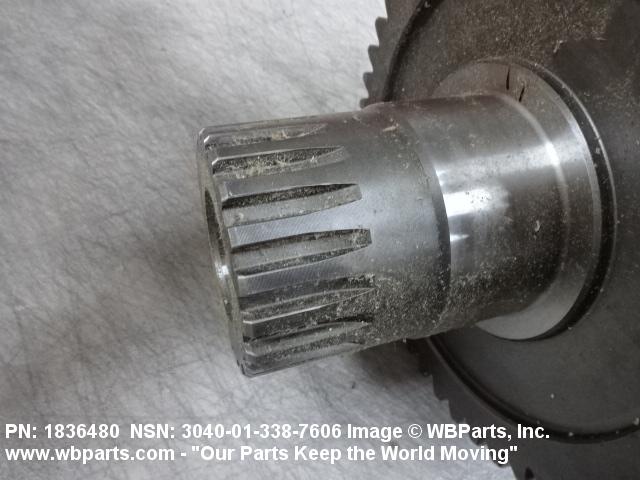

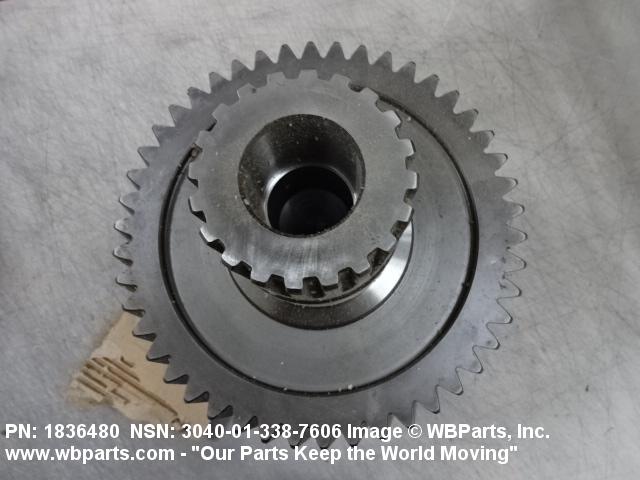

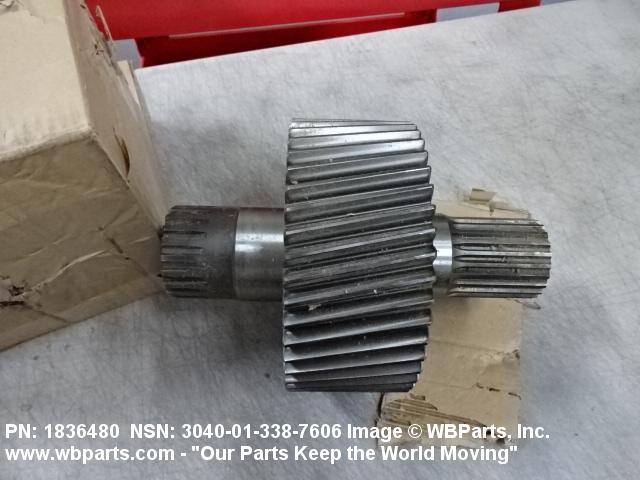

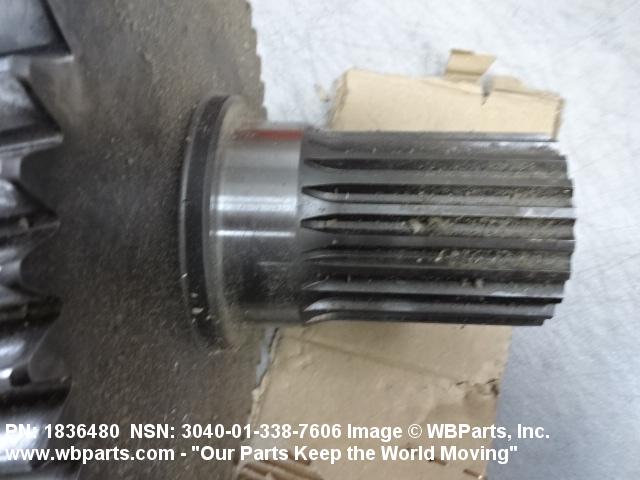

Drawings & Photos | NSN 3040-01-338-7606
Demand History | NSN 3040-01-338-7606
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-338-7606 | 2019-05-134 | 1 | United States |
| 1836480 | 2019-03-78 | 1 | DIBBS |
| 1836480 | 2019-03-64 | 1 | DIBBS |
| 3040-01-338-7606 | 2017-12-344 | 1 | DIBBS |
| 3040-01-338-7606 | 2010-07-201 | 25 | DIBBS |
| 3040-01-338-7606 | 2010-06-179 | 1 | DIBBS |
| 3040-01-338-7606 | 2010-06-171 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-338-7606
Related Products | NSN 3040-01-338-7606
Technical Data | NSN 3040-01-338-7606
| Characteristic | Specifications |
|---|---|
| SHAFT MATERIAL | STEEL COMP 8822H |
| GEAR MATERIAL | STEEL COMP 8822H |
| TEETH QUANTITY | 46 |
| TEETH TYPE | SINGLE HELIX |
| TOOTH DIRECTION | LEFT |
| PRESSURE ANGLE | 25.4461 DEGREES |
| HELIX ANGLE | 11.4761 DEGREES |
| GEAR OUTSIDE DIAMETER | 9.711 INCHES NOMINAL |
| DIAMETRAL PITCH | 5 |
| FACE WIDTH | 4.185 INCHES NOMINAL |
| OVERALL LENGTH | 13.350 INCHES NOMINAL |
| SHAFT TYPE | SHOULDERED |
| SHAFT LARGEST DIAMETER | 4.500 INCHES NOMINAL |
| GEAR LOCATION ON SHAFT | MIDPOINT BETWEEN ENDS OF SHAFT |
| SHAFT LENGTH | 9.154 INCHES NOMINAL |
| SHAFT END TYPE | SPLINED INVOLUTE |
| SHAFT END SIZE | 2.690 INCHES AND 3.407 INCHES |
| III END ITEM IDENTIFICATION | 2320-01-318-9902 HET (HEAVY EQUIPMENT TRANSPORTER) |
Restrictions/Controls & Freight Information | NSN 3040-01-338-7606
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-338-7606
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
