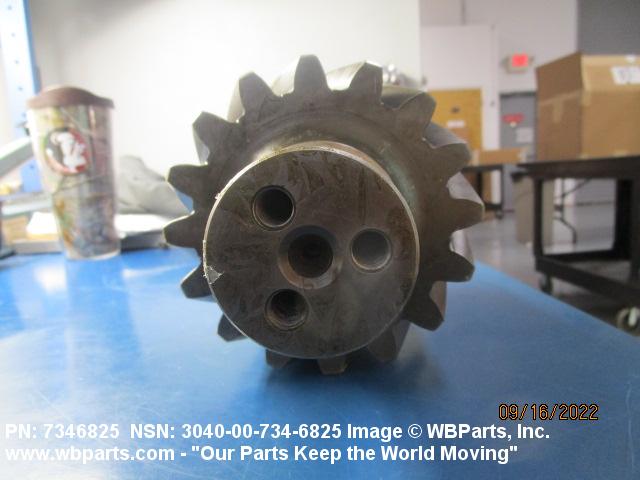

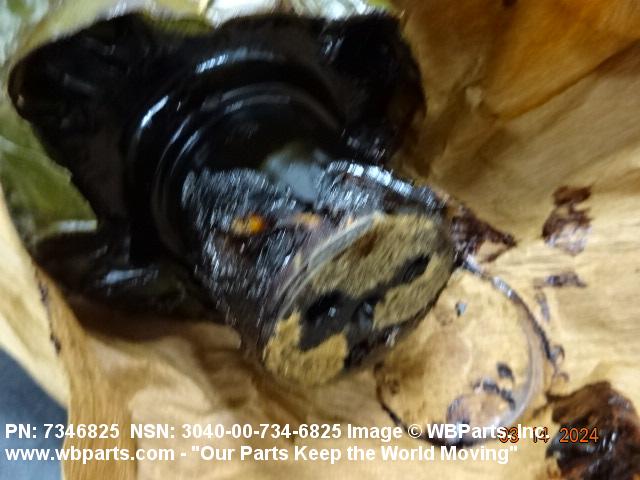

Product Details | HELICAL GEARSHAFT
3040-00-734-6825 A gearshaft with a single complement of helical gear teeth. For items with more than one complement of teeth, see GEARSHAFT (1), MULTIPLE GEARS.
Part Alternates: KC5296, 3891T748, 7346825, 98683R3, 98693R1, 3040-00-734-6825, 00-734-6825, 3020007346825 , 3040007346825, 007346825
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-734-6825 | 60539 ( GEARSHAFT, HELICAL ) |

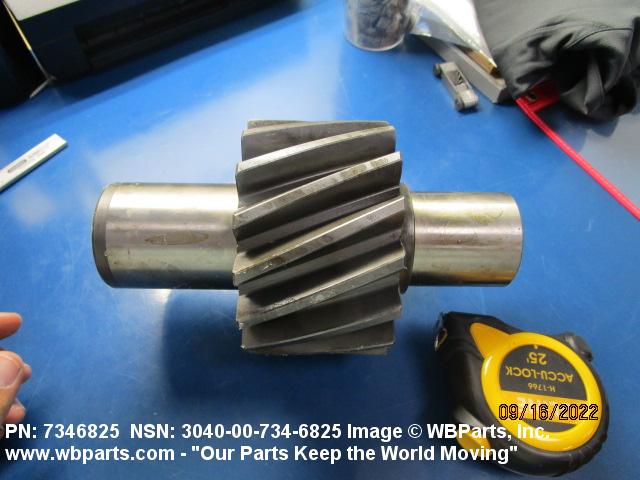

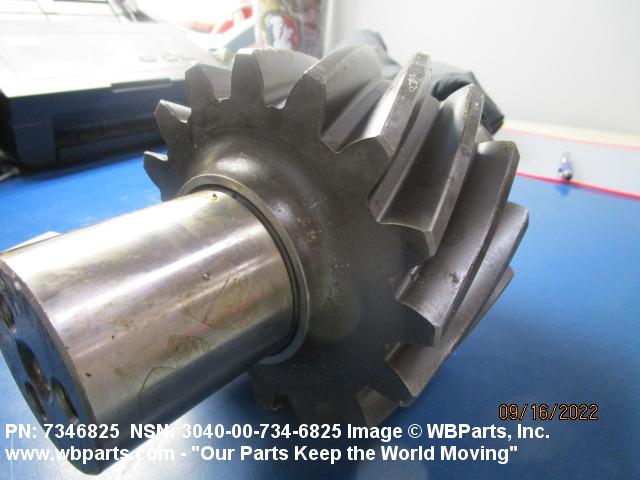

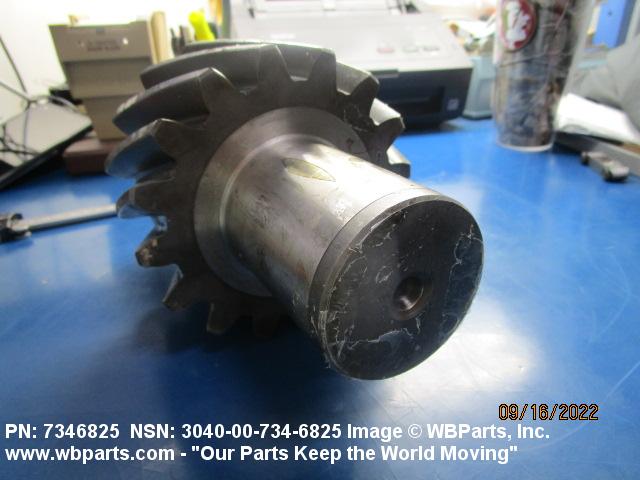

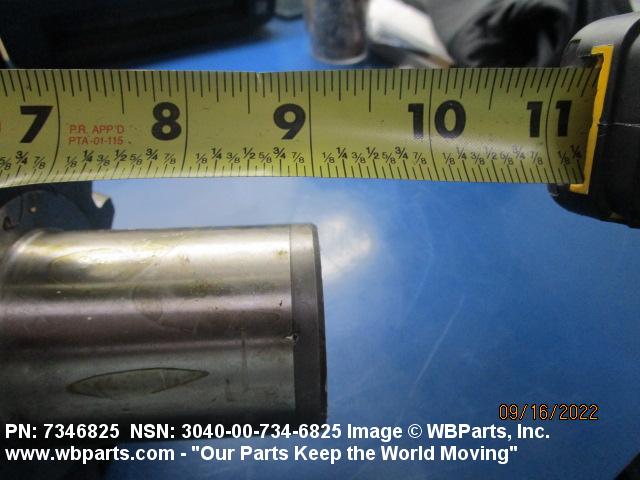

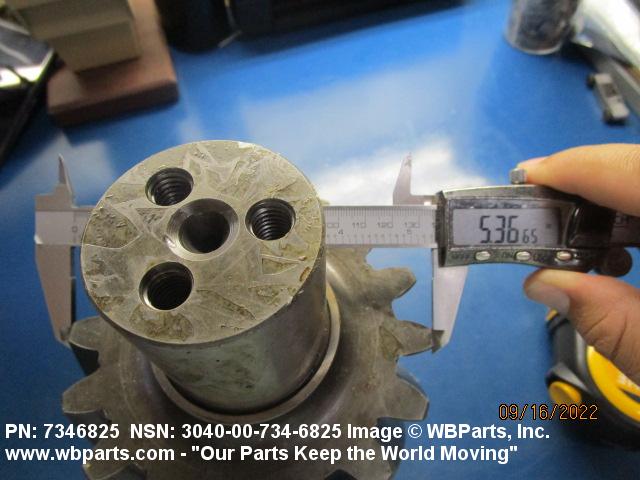

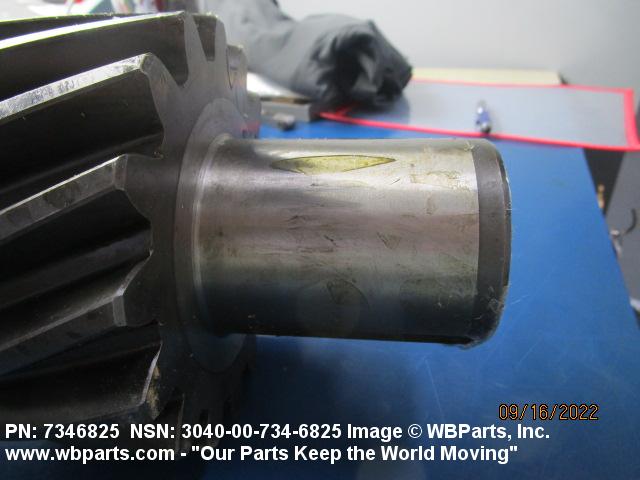

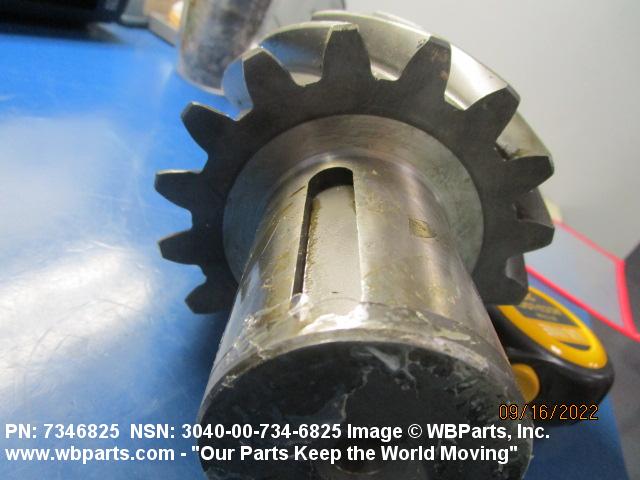

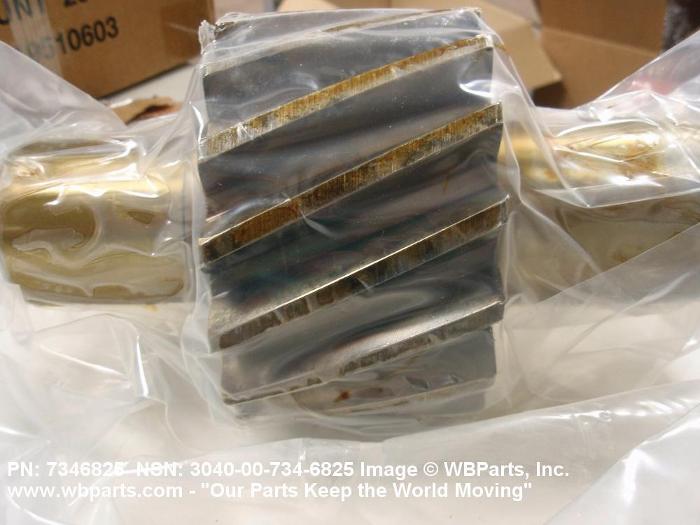

Drawings & Photos | NSN 3040-00-734-6825
Demand History | NSN 3040-00-734-6825
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7346825 | 2024-02-52 | 6 | Canada |
| 3040-00-734-6825 | 2022-05-122 | 2 | Canada |
| 3891T748 | 2022-04-118 | 2 | Canada |
| 3040-00-734-6825 | 2022-04-117 | 2 | Canada |
| 3040-00-734-6825 | 2016-01-07 | 4 | Canada |
| 3040-00-734-6825 | 2015-03-77 | 8 | DIBBS |
| 3040-00-734-6825 | 2013-07-183 | 16 | DIBBS |
| 3040-00-734-6825 | 2012-08-243 | 1 | DIBBS |
| 3040-00-734-6825 | 2012-06-182 | 1 | DIBBS |
| 3040-00-734-6825 | 2012-05-139 | 1 | DIBBS |
| 3040-00-734-6825 | 2012-03-90 | 35 | DIBBS |
| 3040-00-734-6825 | 2011-09-266 | 20 | DIBBS |
| 3040-00-734-6825 | 2011-09-258 | 15 | DIBBS |
| 3040-00-734-6825 | 2010-11-329 | 6 | Canada |
| 3040-00-734-6825 | 2008-08-234 | 1 | DIBBS |
Cross Reference | NSN 3040-00-734-6825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3020007346825 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 3891T748 | 3D6E9 | AXLETECH INTERNATIONAL, LLC |
| 3891T748 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
| 7346825 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 98683R3 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 98693R1 | 31007 | NAVISTAR INTL CORP |
| 98693R1 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| KC5296 | 56442 | DIAMOND REO TRUCK CO |
