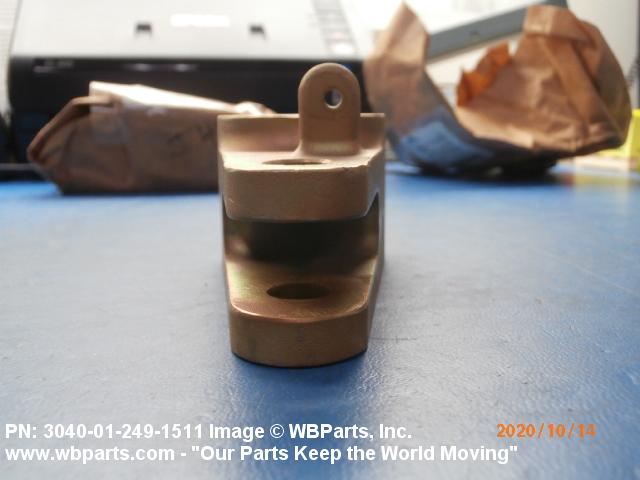

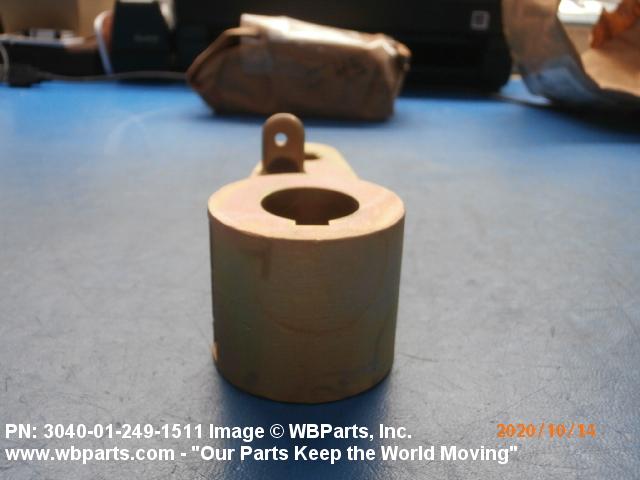

Product Details | REMOTE CONTROL LEVER

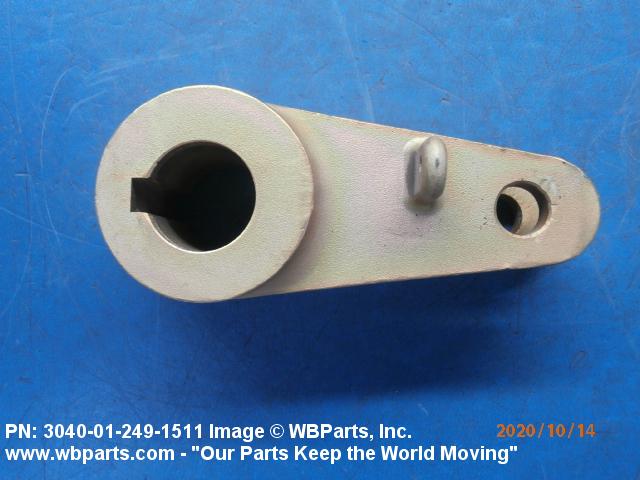

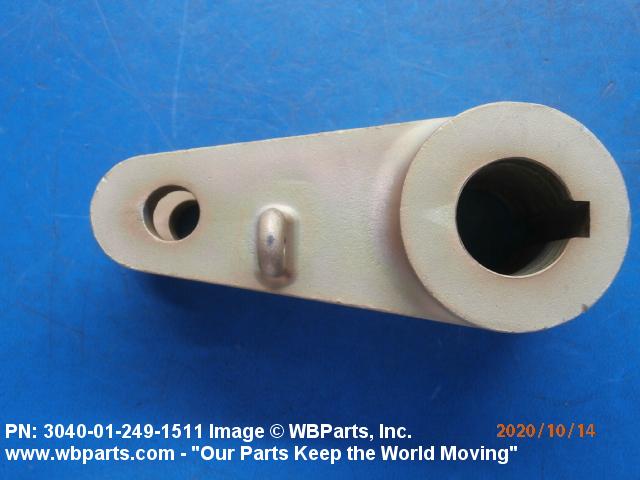

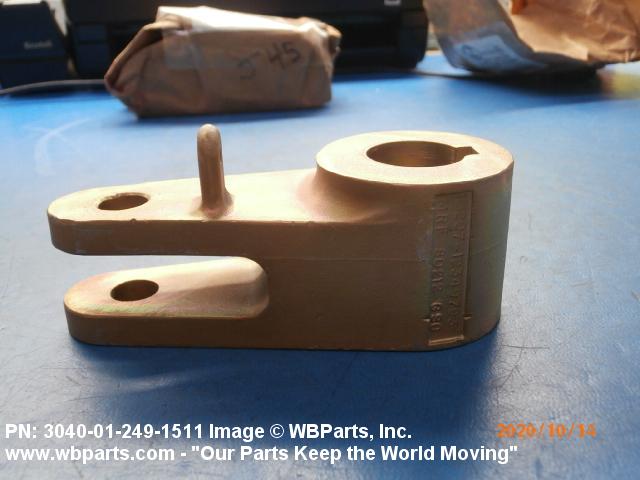

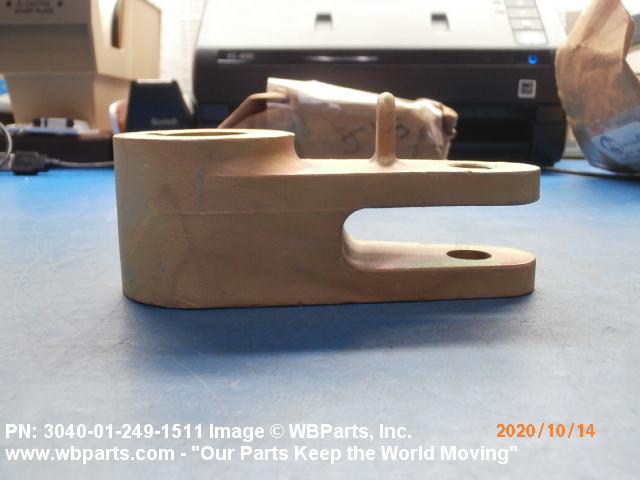

3040-01-249-1511 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 12349793, 3040-01-249-1511, 01-249-1511, 3040012491511, 012491511
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 06 FEB 1987 | 01-249-1511 | 22099 ( LEVER, REMOTE CONTROL ) |

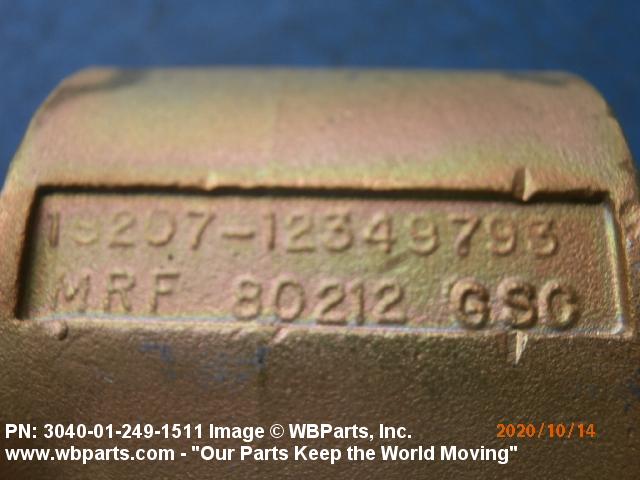

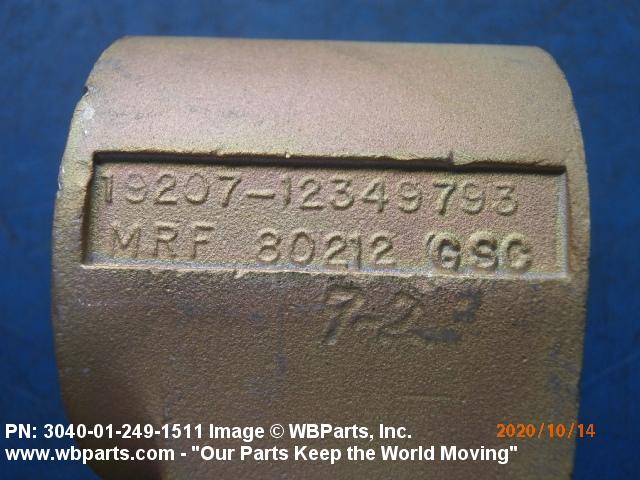

Drawings & Photos | NSN 3040-01-249-1511
Demand History | NSN 3040-01-249-1511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-249-1511 | 2020-09-247 | 1 | Malaysia |
| 3040-01-249-1511 | 2020-04-114 | 25 | DIBBS |
| 3040-01-249-1511 | 2019-06-169 | 26 | DIBBS |
| 3040-01-249-1511 | 2018-11-333 | 79 | DIBBS |
| 3040-01-249-1511 | 2018-02-52 | 51 | DIBBS |
| 3040-01-249-1511 | 2013-07-191 | 46 | DIBBS |
| 3040-01-249-1511 | 2013-05-137 | 45 | DIBBS |
| 3040-01-249-1511 | 2012-12-363 | 76 | DIBBS |
| 3040-01-249-1511 | 2010-05-138 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-249-1511
Technical Data | NSN 3040-01-249-1511
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-741 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |

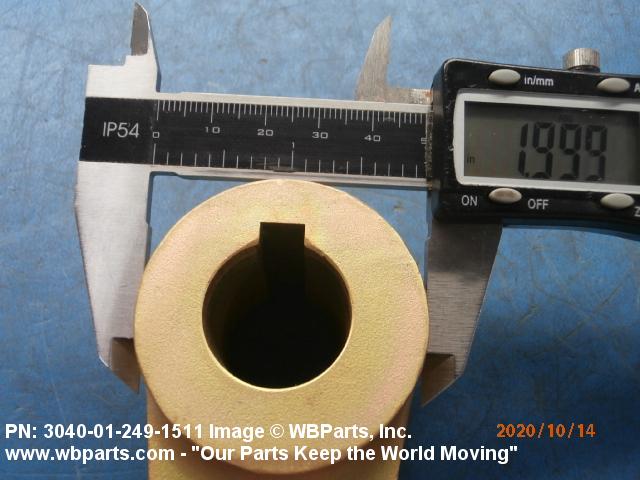

| OVERALL WIDTH | 2.000 INCHES NOMINAL |

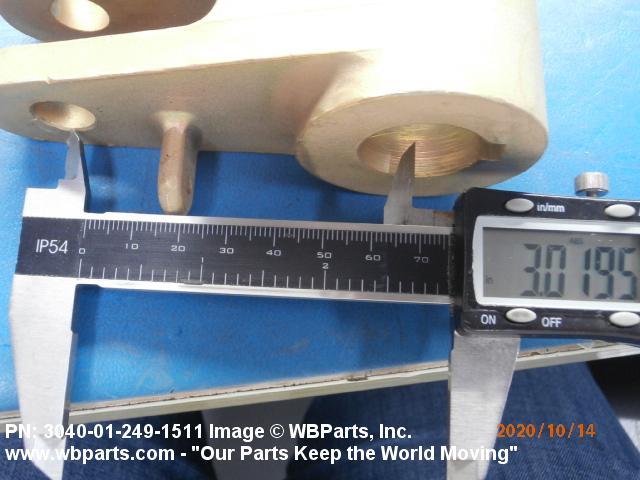

| CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES | 3.000 INCHES NOMINAL |

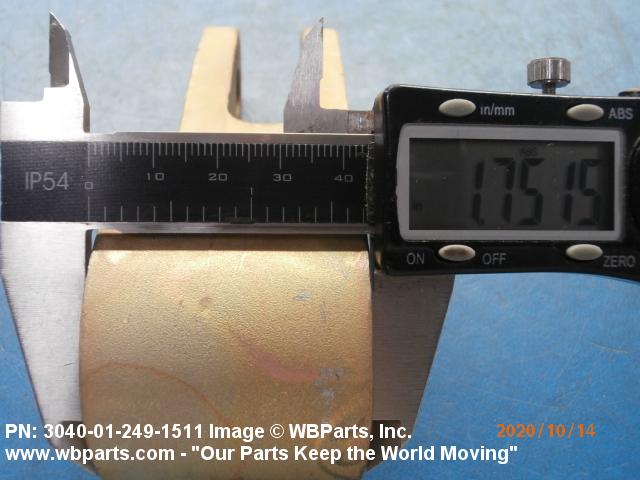

| SHAFT END THICKNESS | 1.750 INCHES NOMINAL |

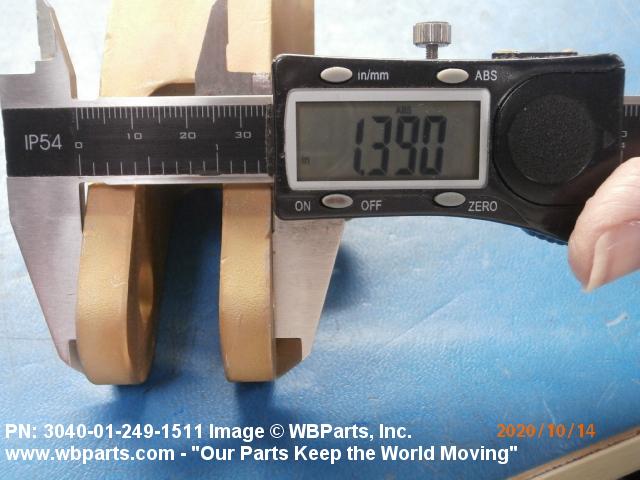

| LINK END THICKNESS | 1.380 INCHES NOMINAL |
| LINK END HOLE DIAMETER | 0.5105 INCHES NOMINAL |

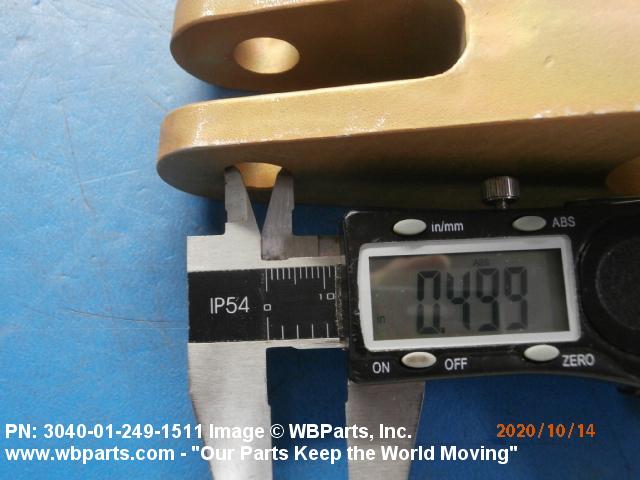

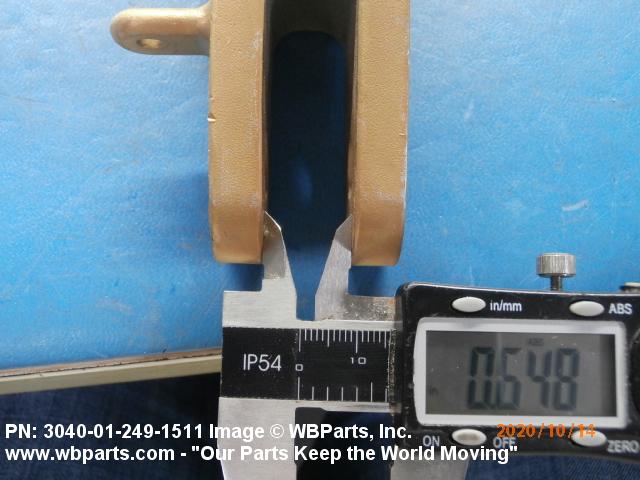

| DISTANCE BETWEEN FORK INSIDE SPREAD | 0.6485 INCHES NOMINAL |
| BORE TYPE | PLAIN STRAIGHT |

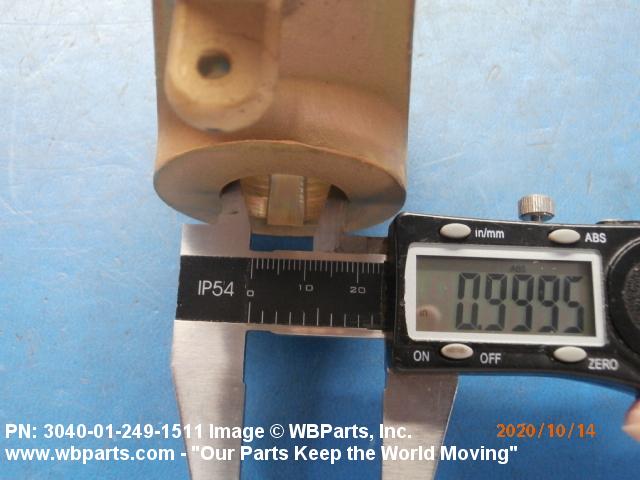

| BORE DIAMETER | 1.002 INCHES NOMINAL |

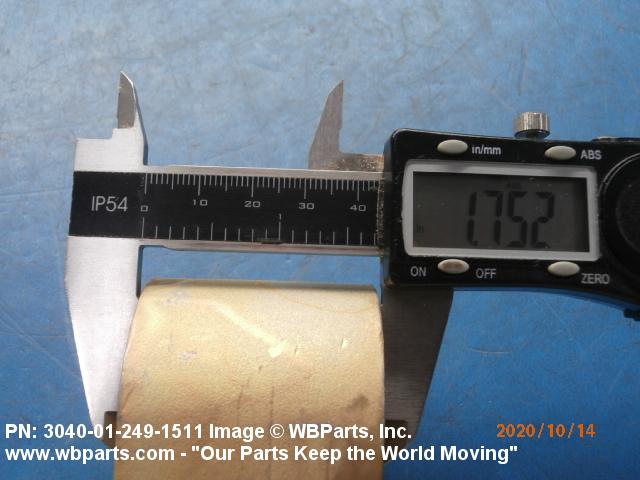

| BORE LENGTH | 1.750 INCHES NOMINAL |

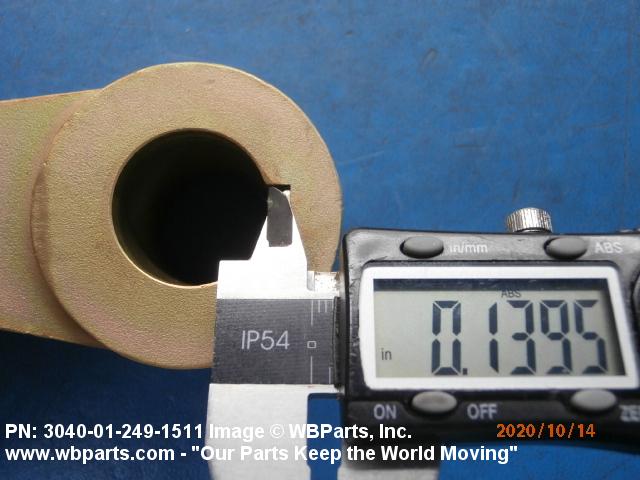

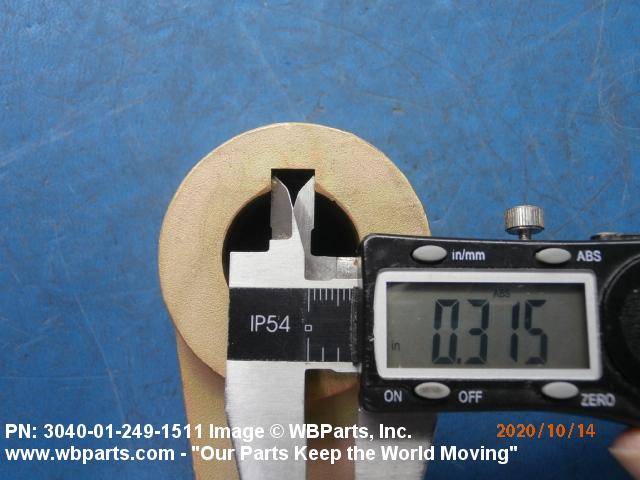

| KEYWAY WIDTH | 0.3145 INCHES NOMINAL |
| KEYWAY LENGTH | 0.1375 INCHES NOMINAL |
| SPECIAL FEATURES | BOTH ENDS CHAMFERED 0.25 IN. LG X 45 DEG ANGLE; OFFSET HEIGHT: 0.370 IN. NOMINAL |
