NSN 1680-00-830-9745 204011313001, 204-011-313-001, 2040113131
Product Details | REMOTE CONTROL LEVER
1680-00-830-9745 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 204011313001, 204-011-313-001, 2040113131, 204-011-313-1, 1680-00-830-9745, 00-830-9745, 1680008309745, 008309745
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1962 | 00-830-9745 | 22099 ( LEVER, REMOTE CONTROL ) |

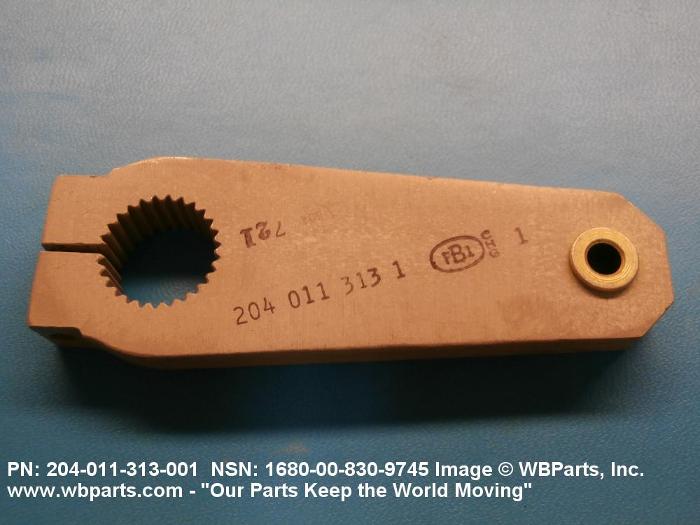

Drawings & Photos | NSN 1680-00-830-9745
Demand History | NSN 1680-00-830-9745
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-830-9745 | 2020-07-213 | 2 | United States |
| 1680-00-830-9745 | 2014-09-272 | 16 | DIBBS |
| 2040113131 | 2012-08-234 | 2 | United States |
| 204-011-313-1 | 2012-08-223 | 2 | United States |
| 2040113131 | 2009-06-153 | 8 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1680-00-830-9745
Related Products | NSN 1680-00-830-9745
Technical Data | NSN 1680-00-830-9745
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367, COMP 2014, T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | A1 FLAT, ONE HOLE LINK END |
| OVERALL WIDTH | 1.200 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES | 3.250 INCHES NOMINAL |
| SHAFT END THICKNESS | 0.500 INCHES NOMINAL |
| LINK END THICKNESS | 0.500 INCHES NOMINAL |
| LINK END HOLE DIAMETER | 0.3745 INCHES MINIMUM AND 0.3755 INCHES MAXIMUM |
| BORE TYPE | SPLINED |
| MAJOR DIAMETER | 0.894 INCHES MINIMUM AND 0.908 INCHES MAXIMUM |
| MINOR DIAMETER | 0.812 INCHES MINIMUM AND 0.816 INCHES MAXIMUM |
| SHAFT SECURING METHOD | SPLINE |
| SPLINE QUANTITY | 27 |
| SPECIAL FEATURES | BUSHING 85B6-15-34-16 INSTALLED IN. LINK END HOLE,ONE HOLE 0.193 IN. DIA DRILLED THRU SHAFT END 0.680 IN. FROM SPLINE CENTER |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 204-011-313-1 |
