NSN 3040-00-592-9919 262230, 26-2230, 00-592-9919
Product Details | REMOTE CONTROL LEVER
3040-00-592-9919 A rigid item usually in the form of an arm of various shapes and cross sections, containing two or more holes so spaced that one serves as a pivot with or without hubs and must have a definite means for securing to a shaft (such as threaded hole for set-screw, keyway(s), splines, serrations or some clamping device). The other hole(s) connect(s) to CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; or CLEVIS, ROD END; to provide transmission of movement to other parts of the mechanism. See also BELL CRANK. For manually operated items see LEVER, MANUAL CONTROL.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 262230, 26-2230, 3040-00-592-9919, 00-592-9919, 3040005929919, 005929919
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-592-9919 | 22099 ( LEVER, REMOTE CONTROL ) |

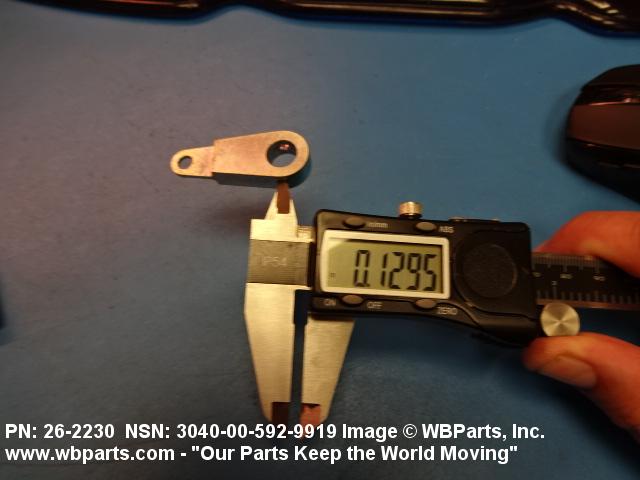

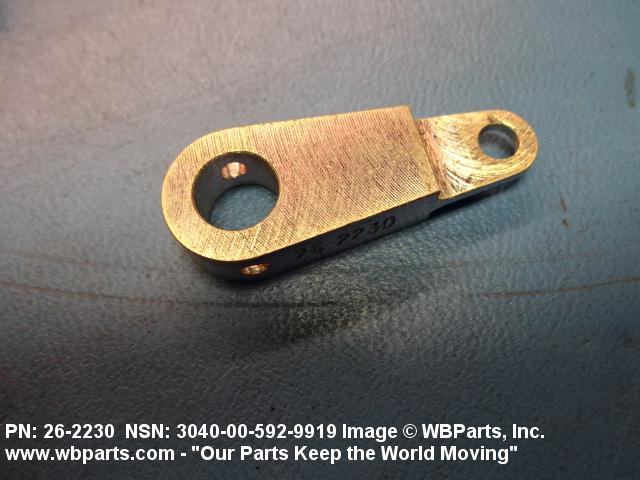

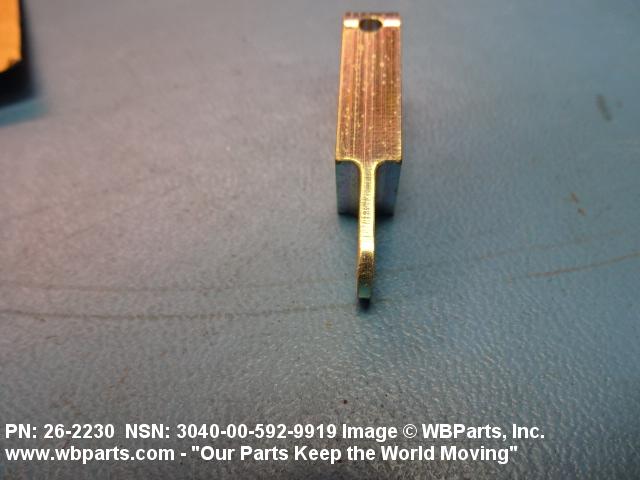

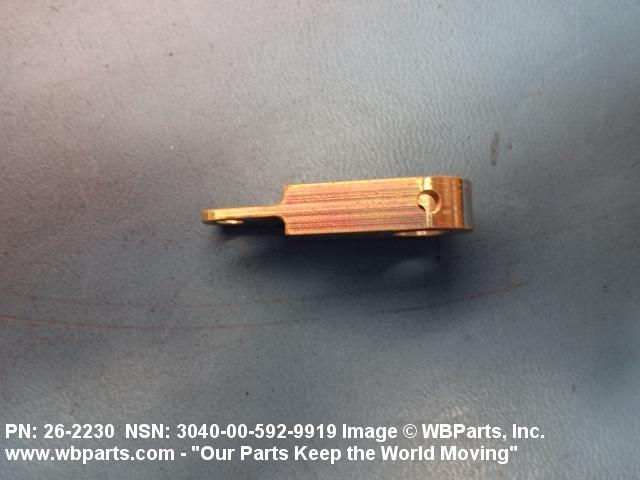

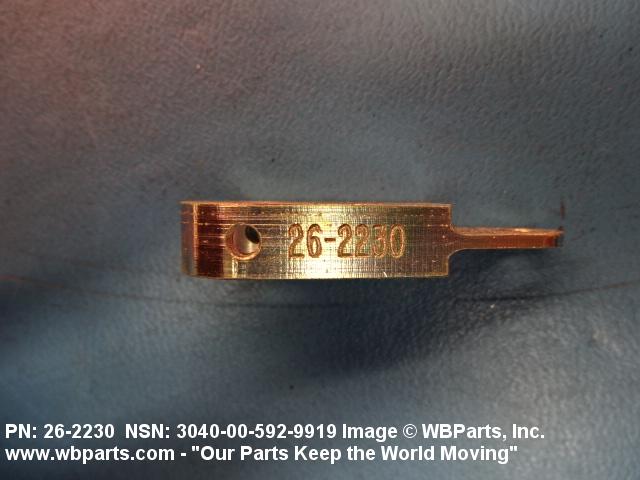

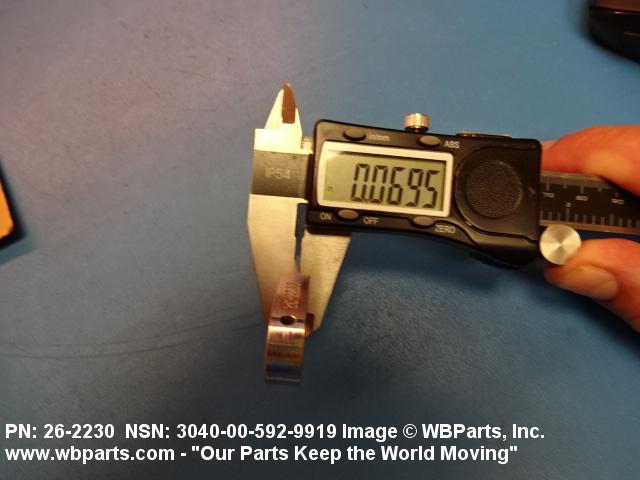

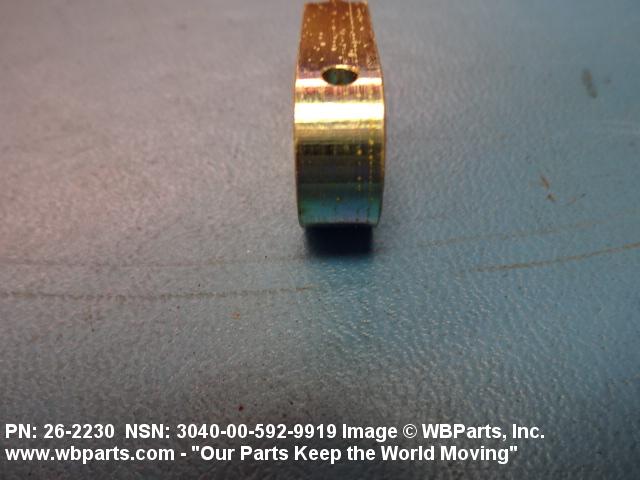

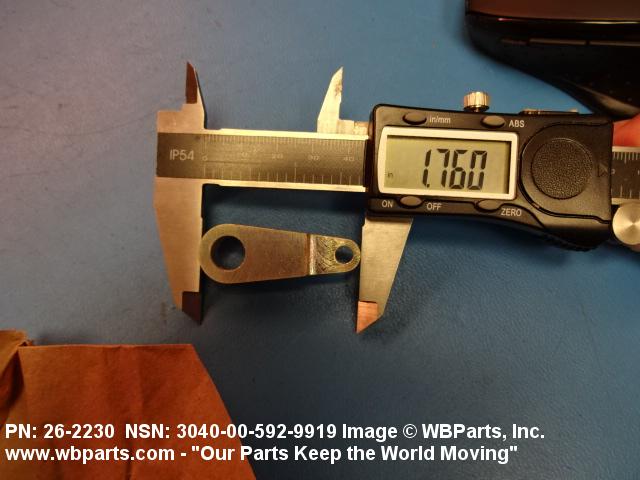

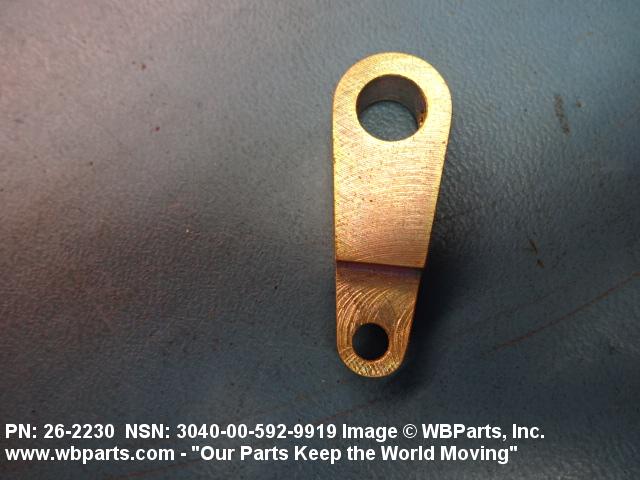

Drawings & Photos | NSN 3040-00-592-9919
Demand History | NSN 3040-00-592-9919
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26-2230 | 2019-02-41 | 27 | DIBBS |
| 3040-00-592-9919 | 2019-02-38 | 8 | United States |
| 3040-00-592-9919 | 2018-10-283 | 15 | DIBBS |
| 3040-00-592-9919 | 2018-08-232 | 8 | DIBBS |
Cross Reference | NSN 3040-00-592-9919
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26-2230 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-592-9919
Technical Data | NSN 3040-00-592-9919
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18728, COMP 8630 MIL SPEC SINGLE MATERIAL RESPONSE |

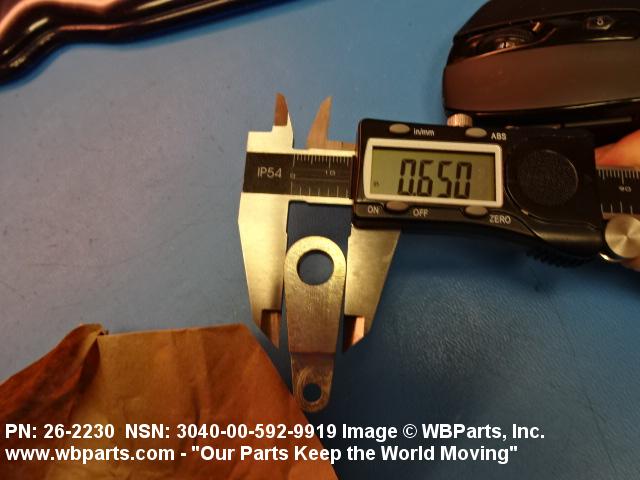

| OVERALL WIDTH | 0.660 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LINK AND SHAFT HOLES | 1.250 INCHES NOMINAL |

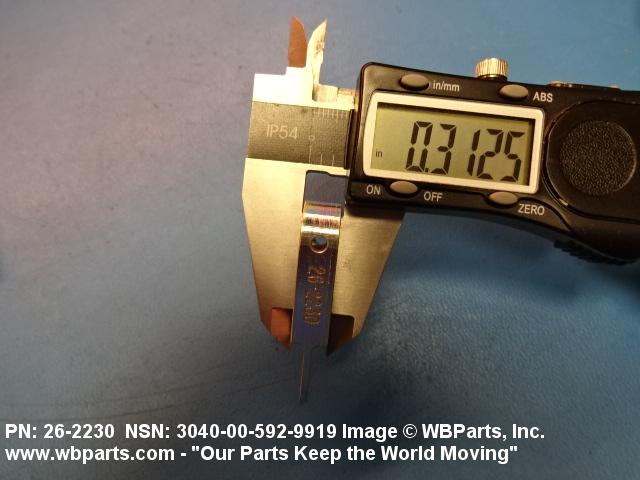

| SHAFT END THICKNESS | 0.313 INCHES NOMINAL |
| LINK END THICKNESS | 0.070 INCHES NOMINAL |

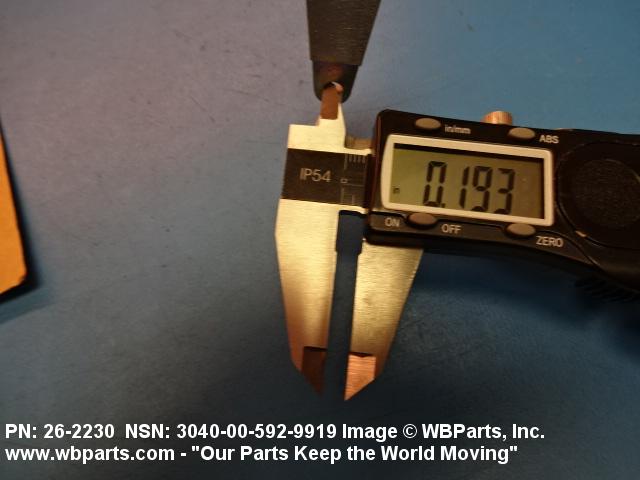

| LINK END HOLE DIAMETER | 0.192 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| BORE TYPE | PLAIN STRAIGHT |

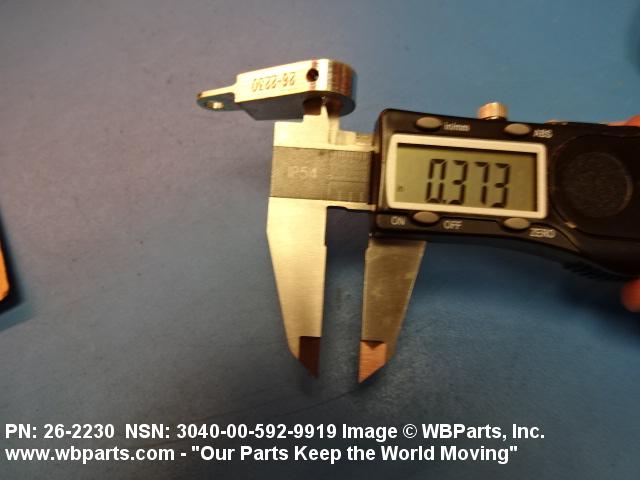

| BORE DIAMETER | 0.375 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| BORE LENGTH | 0.313 INCHES NOMINAL |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 26-2230 |
Restrictions/Controls & Freight Information | NSN 3040-00-592-9919
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 132330 | TRANSMISSIONS/CLUTCHES/PARTS,NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-592-9919
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FG | SX:B-52 STRATO FORTRESS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
