NSN 3040-01-161-2772 A031126, 31126, 01-161-2772
Product Details | BALL JOINT
3040-01-161-2772 An item in which the end of one member is partly spherical and fits into a corresponding spherical cavity in the other member, thus permitting a relative angular movement. Excludes items specifically designed for vehicular steering and torsion application.
Part Alternates: A031126, 31126, 3040-01-161-2772, 01-161-2772, 3040011612772, 011612772
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 03 SEP 1983 | 01-161-2772 | 16619 ( BALL JOINT ) |

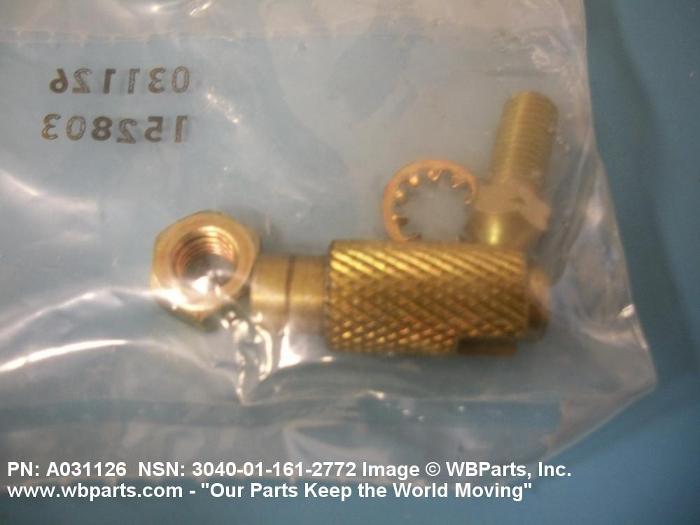

Drawings & Photos | NSN 3040-01-161-2772
Demand History | NSN 3040-01-161-2772
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-161-2772 | 2022-05-150 | 1 | Canada |
| 3040-01-161-2772 | 2012-04-95 | 2 | Canada |
| 3040-01-161-2772 | 2011-09-269 | 20 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-161-2772
Related Products | NSN 3040-01-161-2772
Technical Data | NSN 3040-01-161-2772
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | A8 SINGLE, RIGHT ANGLE, TAPERED END |
| LENGTH | 1.250 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| BALL END CONNECTION THREAD PROVISION | THREADED |
| BALL END THREAD LOCATION | EXTERNAL |
| BALL END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-28 UNF |
| BALL END THREAD DIRECTION | RIGHT |
| SOCKET END CONNECTION THREAD PROVISION | THREADED |
| SOCKET END THREAD LOCATION | INTERNAL |
| SOCKET END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 10-32 UNF |
| SOCKET END THREAD DIRECTION | RIGHT |
| SPECIAL FEATURES | NONADJUSTABLE;SPRING-INCL.;LGTH TO JOINT 1.000 IN.;BALL END THD LGTH 0.562 IN.;SURFACE TREAT.-CADMIUM PLATED;QUICK-RELEASE TYPE,INCLUDES NUT AND LOCKWASHER |
| III END ITEM IDENTIFICATION | MORSE CONTROL DIV.,INCOM INTERNATIONAL INC.,30 SERIES |
Restrictions/Controls & Freight Information | NSN 3040-01-161-2772
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-161-2772
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
