NSN 3040-00-517-1159 A1003, A1003CP, A108
Product Details | BALL JOINT
3040-00-517-1159 An item in which the end of one member is partly spherical and fits into a corresponding spherical cavity in the other member, thus permitting a relative angular movement. Excludes items specifically designed for vehicular steering and torsion application.
Part Alternates: A1003, A1003CP, A108, 02045-0009, 426310, 45292186, 45-292186, 3040-00-517-1159, 00-517-1159, 3040005171159 , 020450009, 005171159
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-517-1159 | 16619 ( BALL JOINT ) |
Drawings & Photos | NSN 3040-00-517-1159
Demand History | NSN 3040-00-517-1159
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-517-1159 | 2014-01-08 | 5 | United States |
| A1003 | 2013-06-162 | 3 | Malaysia |
| A1003 | 2010-07-201 | 1 | Malaysia |
| A1003 | 2010-01-08 | 1 | Malaysia |
| 3040-00-517-1159 | 2010-01-08 | 1 | DIBBS |
| A1003 | 2009-08-218 | 1 | Malaysia |
| A1003 | 2009-07-203 | 1 | Malaysia |
Cross Reference | NSN 3040-00-517-1159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02045-0009 | 60905 | HARLAN GLOBAL MANUFACTURING, L.L.C. DBA HARLAN |
| 3040005171159 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 426310 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 426310 | 24617 | GENERAL MOTORS CORP |
| 426310 | 72582 | MTU AMERICA INC. |
| 45-292186 | 09348 | LUCAS WESTERN INC |
| A1003 | 01428 | CABLECRAFT MOTION CONTROLS LLC |
| A1003CP | 01428 | CABLECRAFT MOTION CONTROLS LLC |
| A108 | 78643 | TOUREK J J MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-00-517-1159
Related Products | NSN 3040-00-517-1159
Technical Data | NSN 3040-00-517-1159
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

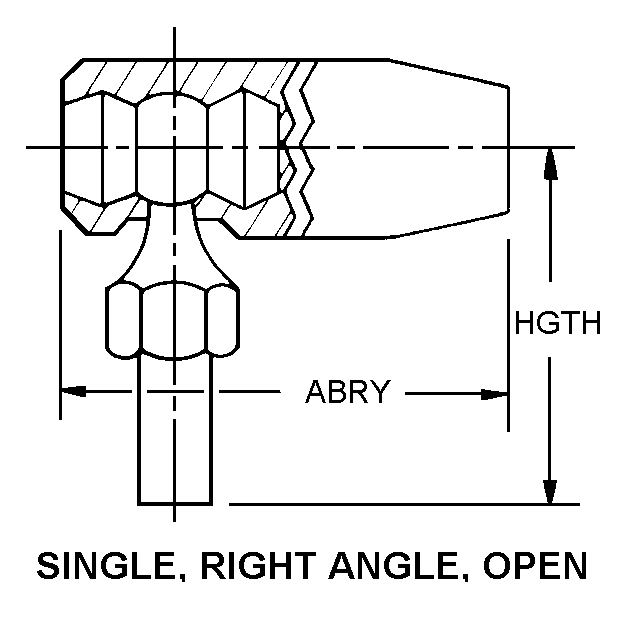

| STYLE DESIGNATOR | A1 SINGLE, RIGHT ANGLE, OPEN |
| LENGTH | 1.563 INCHES NOMINAL |
| HEIGHT | 1.219 INCHES NOMINAL |
| BALL END CONNECTION THREAD PROVISION | THREADED |
| BALL END THREAD LOCATION | EXTERNAL |
| BALL END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 5/16-24 UNF |
| BALL END THREAD DIRECTION | RIGHT |
| SOCKET END CONNECTION THREAD PROVISION | THREADED |
| SOCKET END THREAD LOCATION | INTERNAL |
| SOCKET END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 5/16-24 UNF |
| SOCKET END THREAD DIRECTION | RIGHT |
| SPECIAL FEATURES | NONADJUSTABLE;SPRING-INCL.;LGTH TO JOINT 1.125 IN.;BALL END THDLG TH 0.594 IN.;SURFACE TREAT.-CADMIUM OR ZINC PLATED |
