Product Details | PAWL
3040-01-046-8372 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: 11727857, 3040-01-046-8372, 01-046-8372, 3040010468372, 010468372
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 25 AUG 1977 | 01-046-8372 | 22101 ( PAWL ) |
Drawings & Photos | NSN 3040-01-046-8372
Demand History | NSN 3040-01-046-8372
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-046-8372 | 2019-09-255 | 89 | DIBBS |
| 3040-01-046-8372 | 2018-04-101 | 41 | DIBBS |
| 3040-01-046-8372 | 2013-06-154 | 32 | DIBBS |
| 3040-01-046-8372 | 2013-02-32 | 32 | DIBBS |
| 3040-01-046-8372 | 2012-08-237 | 8 | DIBBS |
| 3040-01-046-8372 | 2010-11-327 | 4 | DIBBS |
| 3040-01-046-8372 | 2007-04-113 | 60 | DIBBS |
Cross Reference | NSN 3040-01-046-8372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11727857 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-046-8372
Related Products | NSN 3040-01-046-8372
Technical Data | NSN 3040-01-046-8372
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |

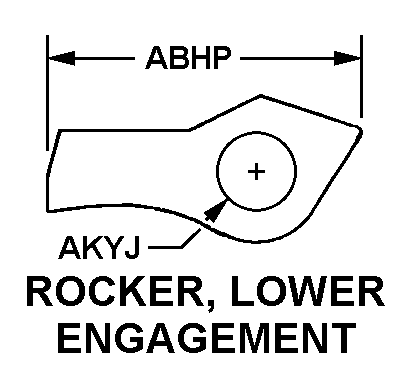

| STYLE DESIGNATOR | A16 ROCKER, LOWER ENGAGEMENT |
| OVERALL LENGTH | 0.759 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.5625 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.308 INCHES NOMINAL |
| SPECIAL FEATURES | DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.3755 IN.NOM;LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:1.340 IN.NOM;SURFACE FINISH:PASSIVATED |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 11727857 |
