NSN 3040-01-046-8829 20132, 01-046-8829, 010468829
Product Details | BELL CRANK
3040-01-046-8829 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 20132, 3040-01-046-8829, 01-046-8829, 3040010468829, 010468829
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01-046-8829 | 22321 ( BELL CRANK ) |
Drawings & Photos | NSN 3040-01-046-8829
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-046-8829
Technical Data | NSN 3040-01-046-8829
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

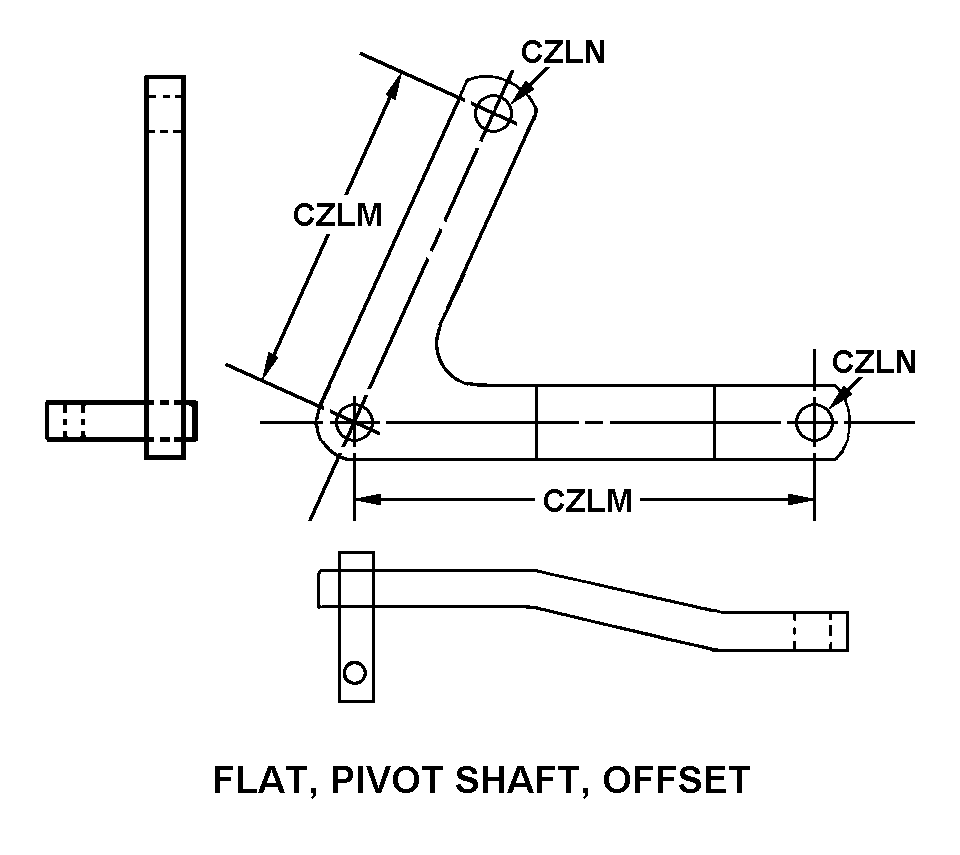

| STYLE DESIGNATOR | A29 FLAT, PIVOT SHAFT, OFFSET |
| BORE LENGTH | 0.091 INCHES NOMINAL |
| BORE DIAMETER | 0.375 INCHES NOMINAL |
| MANUFACTURERS CODE | 00679 |
| DESIGN CONTROL REFERENCE | 20132 |
Restrictions/Controls & Freight Information | NSN 3040-01-046-8829
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
