Product Details | HUB CLAMP
3040-01-043-6385 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Part Alternates: 12252377, 3040-01-043-6385, 01-043-6385, 3040010436385, 010436385
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 27 JUN 1977 | 01-043-6385 | 27781 ( CLAMP, HUB ) |
Drawings & Photos | NSN 3040-01-043-6385
Cross Reference | NSN 3040-01-043-6385
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12252377 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-043-6385
Technical Data | NSN 3040-01-043-6385
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-631-CANCELED |
| SURFACE TREATMENT | ENAMEL |

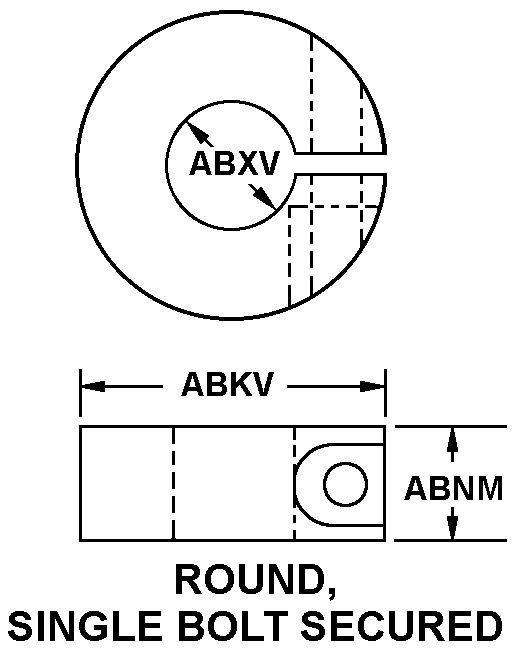

| STYLE DESIGNATOR | B2 ROUND, SINGLE BOLT SECURED |
| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| THICKNESS | 0.500 INCHES NOMINAL |
| BORE DIAMETER | 0.4740 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | 3 THREADED |
| PLAIN HOLE DIAMETER | 0.2210 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.3750 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.6450 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| SPECIAL FEATURES | SHOULDER 0.720 H X 0.875 RADIUS HAS 2 HOLES 0.190-24UNC-3B 1.250 C-TO-C; FIRST HOLE PARALLEL TO CLAMP HOLE 0.688 C-TO-C |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12252377 |
