NSN 3040-01-043-6783 55077, 550-77, 55077009
Product Details | DOUBLE BALL JOINT
3040-01-043-6783 An assembly consisting of two (2) BALL JOINT. Excludes items specifically designed for vehicular steering and torsion application.20325900034Miscellaneous Vehicular Components29100042Engine Fuel System Components, Nonaircraft30400042Miscellaneous Power Transmission Equipment
Part Alternates: 55077, 550-77, 55077009, 550-77-009, 3040-01-043-6783, 01-043-6783, 3040010436783, 010436783
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 28 JUN 1977 | 01-043-6783 | 16620 ( BALL JOINT, DOUBLE ) |
Drawings & Photos | NSN 3040-01-043-6783
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-043-6783
Technical Data | NSN 3040-01-043-6783
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

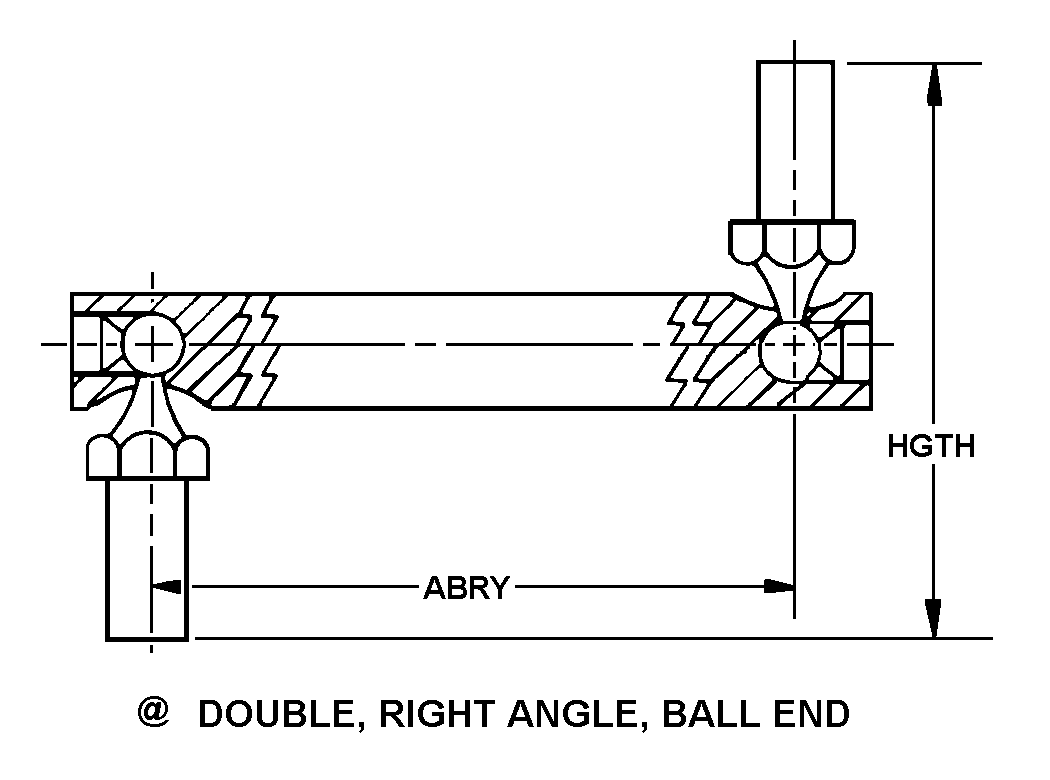

| STYLE DESIGNATOR | A6 DOUBLE, RIGHT ANGLE, BALL END |
| LENGTH | 8.750 INCHES NOMINAL |
| HEIGHT | 2.437 INCHES NOMINAL |
| BALL END CONNECTION THREAD PROVISION | THREADED |
| BALL END THREAD LOCATION | EXTERNAL |
| BALL END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 5/16-24 UNF |
| BALL END THREAD DIRECTION | RIGHT |
| SOCKET END CONNECTION THREAD PROVISION | THREADED |
| SOCKET END THREAD LOCATION | INTERNAL INTERNAL |
| SOCKET END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 5/16-24 UNF |
| SOCKET END THREAD DIRECTION | RIGHT |
| SPECIAL FEATURES | ADJUSTABILITY:NON ADJUSTABLE; SPRING:INCLUDED; BALL END THREAD LENGTH:0.594" NOM.; SURFACE TREATMENT:BLACK PAINT |
Restrictions/Controls & Freight Information | NSN 3040-01-043-6783
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
