NSN 3040-00-621-5503 1142E, 1266028, 00-621-5503
Product Details | FRICTION LINING
3040-00-621-5503 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 1142E, 1266028, 3040-00-621-5503, 00-621-5503, 3040006215503, 006215503
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-621-5503 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 3040-00-621-5503
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-621-5503
Technical Data | NSN 3040-00-621-5503
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS-METALLIC COMPOSITION |
| FABRICATION METHOD | MOLDED |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | BOTH SIDES GROOVED |
| LINING STYLE | 16 BULK LINING |
| WIDTH | 0.875 INCHES NOMINAL |
| THICKNESS | 0.143 INCHES NOMINAL |
| ATTACHMENT METHOD | RIVETED |

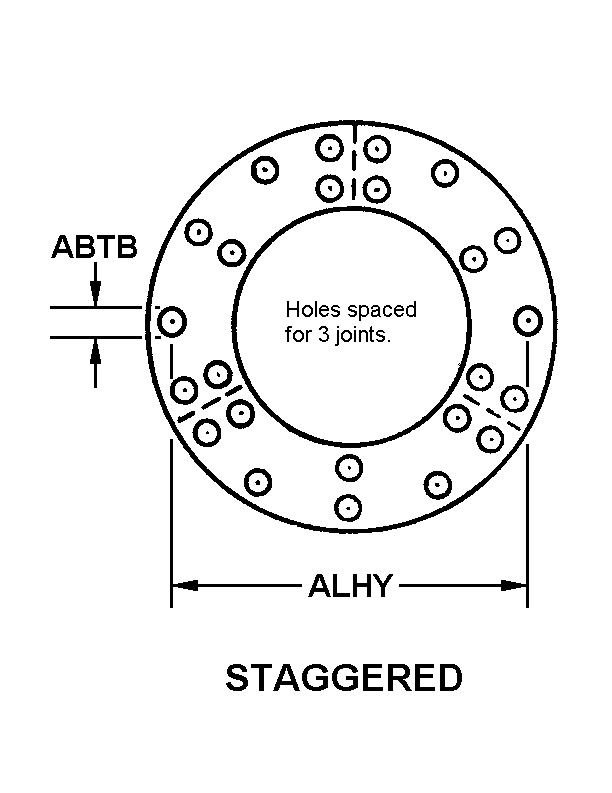

| HOLE ARRANGEMENT STYLE | B16 STAGGERED |
| MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING HOLE CIRCLE DIAMETER | 3.622 INCHES MINIMUM AND 3.628 INCHES MAXIMUM |
| CIRCULAR PATTERN HOLE TYPE AND QUANTITY | 20 COUNTERSUNK OUTER SECURING CIRCLE 20 COUNTERSUNK INNER SECURING CIRCLE |
| FEATURES PROVIDED | FLEXIBLE FRICTION LINING |
Restrictions/Controls & Freight Information | NSN 3040-00-621-5503
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019940 | AUTO TRANSMISSIONS R CLUTCHES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-621-5503
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
2 EA : Each |
