NSN 1630-01-250-9867 10900400, 109-00400, 01-250-9867
Product Details | FRICTION LINING
1630-01-250-9867 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 10900400, 109-00400, 1630-01-250-9867, 01-250-9867, 1630012509867, 012509867
Aircraft Components and Accessories | Aircraft Wheel and Brake Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 11 MAR 1987 | 01-250-9867 | 11405 ( LINING, FRICTION ) |

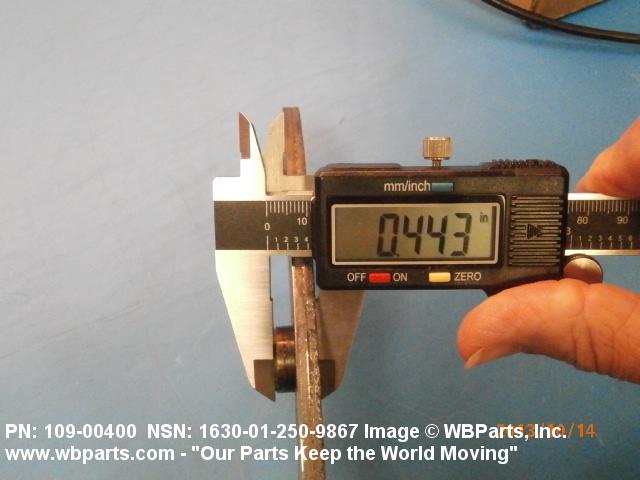

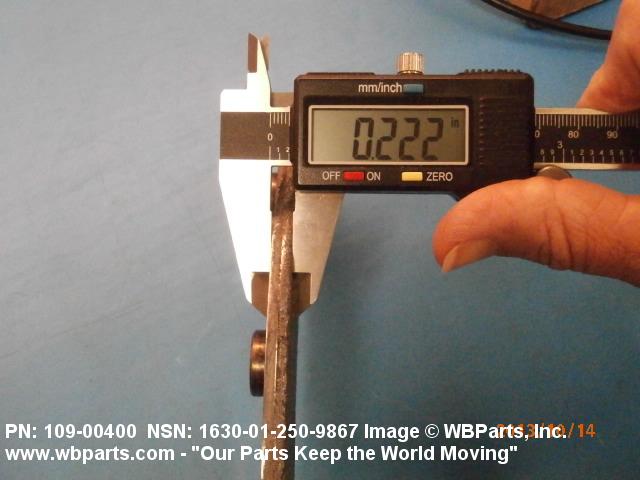

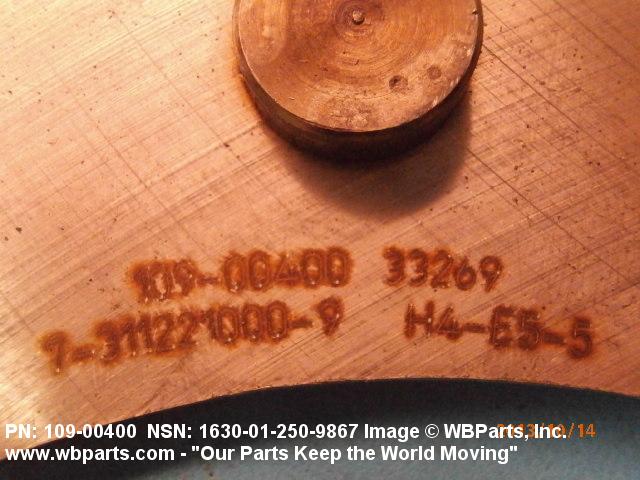

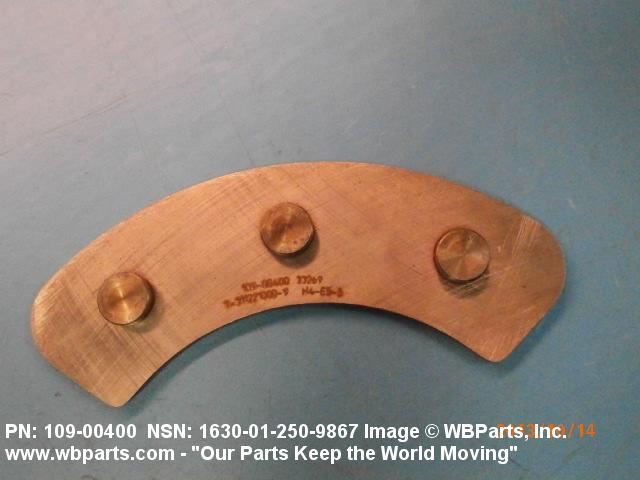

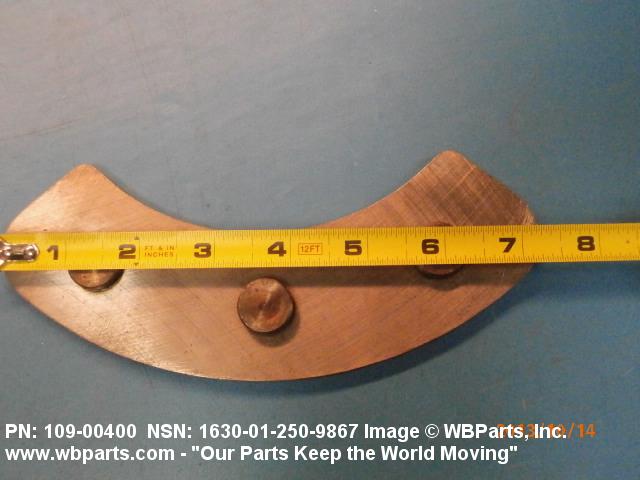

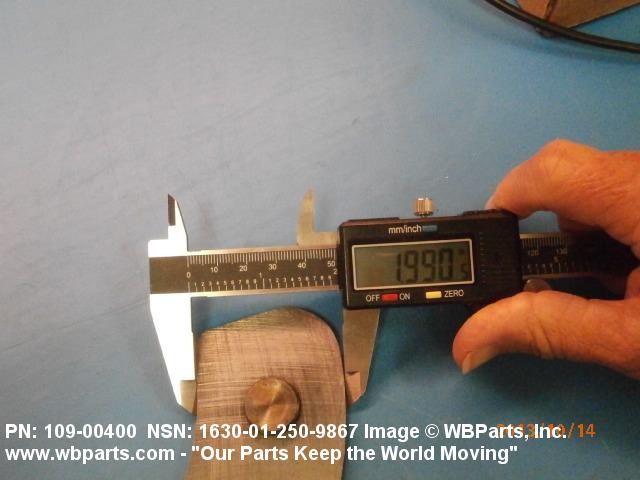

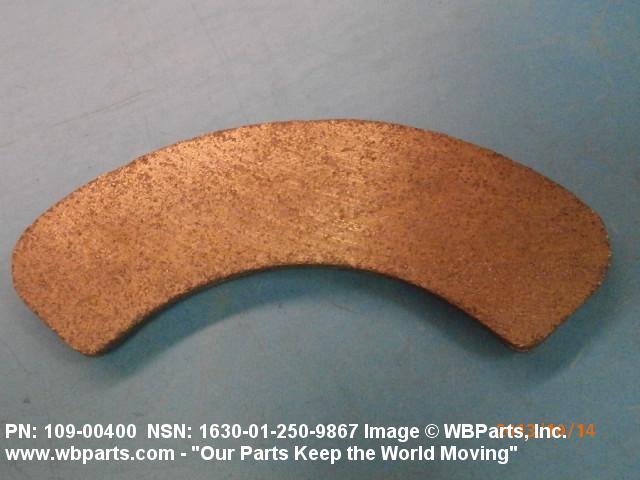

Drawings & Photos | NSN 1630-01-250-9867
Demand History | NSN 1630-01-250-9867
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 109-00400 | 2024-10-291 | 30 | DIBBS |
| 109-00400 | 2024-07-200 | 80 | DIBBS |
| 109-00400 | 2024-03-77 | 78 | DIBBS |
| 109-00400 | 2023-12-351 | 46 | DIBBS |
| 109-00400 | 2023-08-232 | 46 | DIBBS |
| 1630-01-250-9867 | 2023-07-206 | 50 | United States |
| 1630-01-250-9867 | 2020-06-169 | 1 | DIBBS-RFPs |
| 10900400 | 2016-02-46 | 5 | United States |
| 1630-01-250-9867 | 2015-01-11 | 100 | DIBBS |
| 1630-01-250-9867 | 2013-10-283 | 36 | US |
| 1630-01-250-9867 | 2013-10-275 | 100 | DIBBS |
| 10900400 | 2013-09-261 | 4 | United States |
| 10900400 | 2013-09-261 | 4 | United States |
| 1630-01-250-9867 | 2011-03-74 | 480 | DIBBS |
| 1630-01-250-9867 | 2010-09-259 | 276 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1630-01-250-9867
Technical Data | NSN 1630-01-250-9867
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | WEAR PAD MATERIAL NON-ASBESTOS STEEL |
| III END ITEM IDENTIFICATION | P/N 030-16802 BRAKE FOR APACHE HELICOPTER |
Restrictions/Controls & Freight Information | NSN 1630-01-250-9867
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014640 | BRAKE BLOCKS / BRAKE LININGS |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1630-01-250-9867
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
