NSN 3040-00-585-7948 50529M10, 00-585-7948, 005857948
Product Details | FRICTION LINING
3040-00-585-7948 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 50529M10, 3040-00-585-7948, 00-585-7948, 3040005857948, 005857948
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-585-7948 | 11405 ( LINING, FRICTION ) |

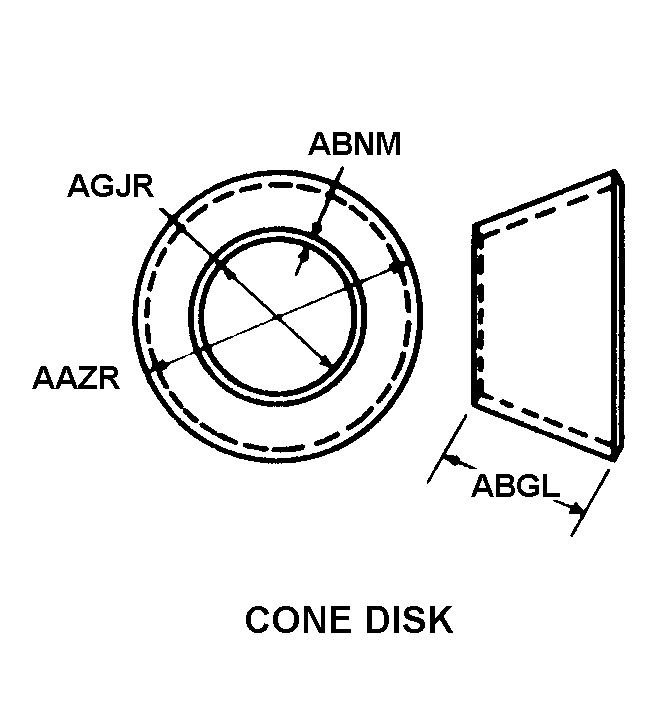

Drawings & Photos | NSN 3040-00-585-7948
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-585-7948
Technical Data | NSN 3040-00-585-7948
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS COMPOSITION |
| FABRICATION METHOD | MOLDED |
| STRENGTHENING FEATURE | INTERNALLY MOLDED-IN REINFORCEMENT |
| APPLICATION TYPE | OIL |
| SURFACE CONDITION AND LOCATION | BOTH SIDES GROUND |
| LINING STYLE | 9 CONE DISK |
| MAJOR DIAMETER | 5.419 INCHES MINIMUM AND 5.423 INCHES MAXIMUM |
| WIDTH | 0.916 INCHES MINIMUM AND 0.926 INCHES MAXIMUM |
| THICKNESS | 0.129 INCHES NOMINAL |
| MINOR DIAMETER | 4.771 INCHES NOMINAL |
| FEATURES PROVIDED | RIGID FRICTION LINING |
| III FSC APPLICATION DATA | ACFT ENG R2800 |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 50529M10 |
Restrictions/Controls & Freight Information | NSN 3040-00-585-7948
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030020 | BRAKE LININGS FLEXIBLE NOI IN PKGS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
