Product Details | BALL JOINT

3040-00-374-3879 An item in which the end of one member is partly spherical and fits into a corresponding spherical cavity in the other member, thus permitting a relative angular movement. Excludes items specifically designed for vehicular steering and torsion application.

Part Alternates: 003743879

Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft

Supply Group (FSG) NSN Assign. NIIN
29 00-374-3879

Drawings & Photos | NSN 2990-00-374-3879


Demand History | NSN 3040-00-374-3879

Part Number Request Date QTY Origin
391510 2014-02-50 1 United States

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3040-00-374-3879

Technical Data | NSN 3040-00-374-3879

Characteristic Specifications
MATERIAL STEEL

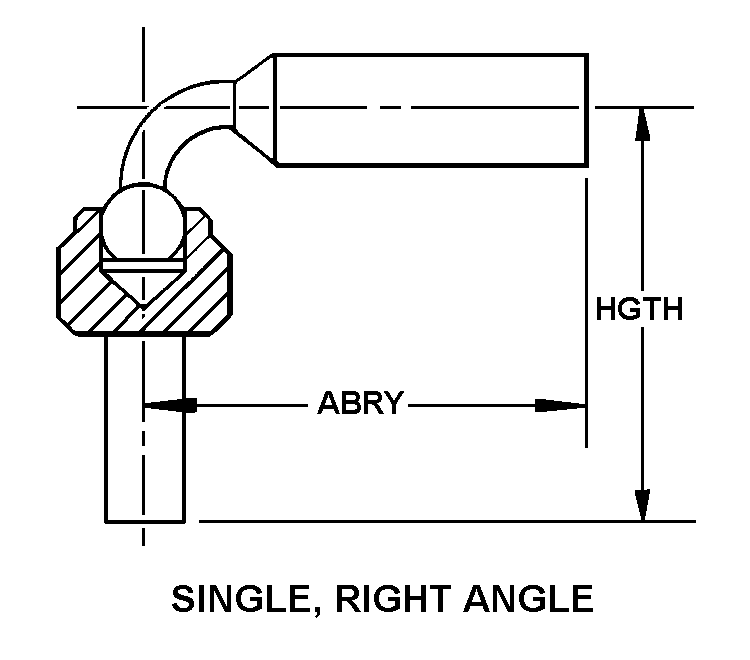

STYLE DESIGNATOR A7 SINGLE, RIGHT ANGLE
LENGTH 1.000 INCHES NOMINAL
HEIGHT 0.750 INCHES NOMINAL
BALL END CONNECTION THREAD PROVISION THREADED
BALL END THREAD LOCATION INTERNAL
BALL END THREAD SIZE AND SERIES/TYPE DESIGNATOR 1/4-28 UNF
BALL END THREAD DIRECTION RIGHT
SOCKET END CONNECTION THREAD PROVISION THREADED
SOCKET END THREAD LOCATION EXTERNAL
SOCKET END THREAD SIZE AND SERIES/TYPE DESIGNATOR 1/4-28 UNF
SOCKET END THREAD DIRECTION RIGHT
SPECIAL FEATURES NONADJUSTABLE;SPRING-NOT INCL.;BALL END THD LGTH 0.500 IN.
III END ITEM IDENTIFICATION GOVERNOR GROUP,GAS ENGINE,NONAIRCRAFT

Restrictions/Controls & Freight Information | NSN 3040-00-374-3879

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
