NSN 3040-00-204-2456 10V153A, 00-204-2456, 002042456
Product Details | FRICTION LINING
3040-00-204-2456 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 10V153A, 3040-00-204-2456, 00-204-2456, 3040002042456, 002042456
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-204-2456 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 3040-00-204-2456
Cross Reference | NSN 3040-00-204-2456
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10V153A | 7L611 | BLAKO INC. DBA BLAKESLEE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-204-2456
Technical Data | NSN 3040-00-204-2456
| Characteristic | Specifications |
|---|---|
| FABRICATION METHOD | MOLDED |
| STRENGTHENING FEATURE | INTERNALLY MOLDED-IN REINFORCEMENT |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | ONE SIDE GROUND |

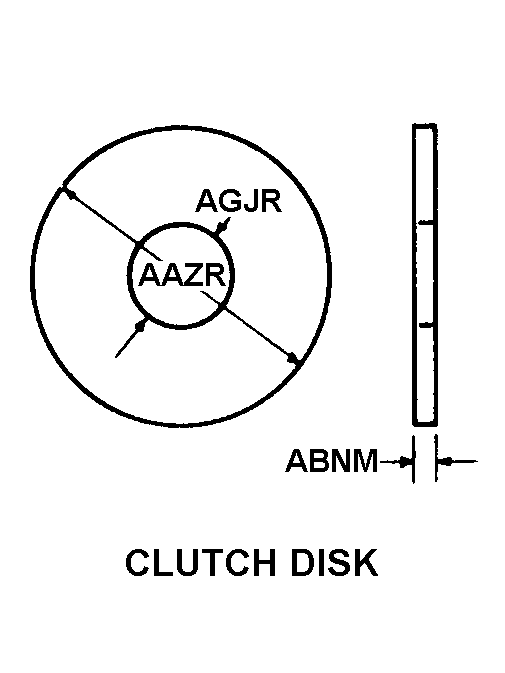

| LINING STYLE | 5 CLUTCH DISK |
| MAJOR DIAMETER | 6.000 INCHES NOMINAL |
| THICKNESS | 0.250 INCHES NOMINAL |
| MINOR DIAMETER | 4.500 INCHES NOMINAL |
| FEATURES PROVIDED | RIGID FRICTION LINING |
| III END ITEM IDENTIFICATION | BLAKESLEE EC4 SERIES DISHWASHING MACHINES |
| III SUPPLEMENTARY FEATURES | THIS ITEM HAS BEEN REVIEWED FOR ASBESTOS MATERIAL. THE CURRENT APPROVED SOURCE, 7L611, HAS INDICATED THEIR PART NUMBER CONTAINED ASBESTOS PRIOR TO 1984. THEY CONTINUE TO MANUFACTURE THE SAME PART NUMBER WITHOUT ASBESTOS MATERIAL AFTER 1984 |
Restrictions/Controls & Freight Information | NSN 3040-00-204-2456
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014640 | BRAKE BLOCKS / BRAKE LININGS |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-204-2456
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
