NSN 3020-01-370-0198 151293 P/N 348149, 151293PN348149, 348149
Product Details | LEAF CHAIN
3020-01-370-0198 A flexible mechanical device consisting of flat leaf plates assembled with pins or rivets to form a chain. The chain uses a flanged sheave in lieu of a sprocket. Each end has a termination hole through which securing pins are inserted when the chain terminations are attached. Excludes CHAIN, SILENT; and CHAIN, BLOCK.
Part Alternates: 151293 P/N 348149, 151293PN348149, 348149, 3020-01-370-0198, 01-370-0198, 3020013700198, 013700198
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 JAN 1993 | 01-370-0198 | 33508 ( CHAIN, LEAF ) |
Drawings & Photos | NSN 3020-01-370-0198
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-370-0198
Technical Data | NSN 3020-01-370-0198
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 1.000 INCHES |

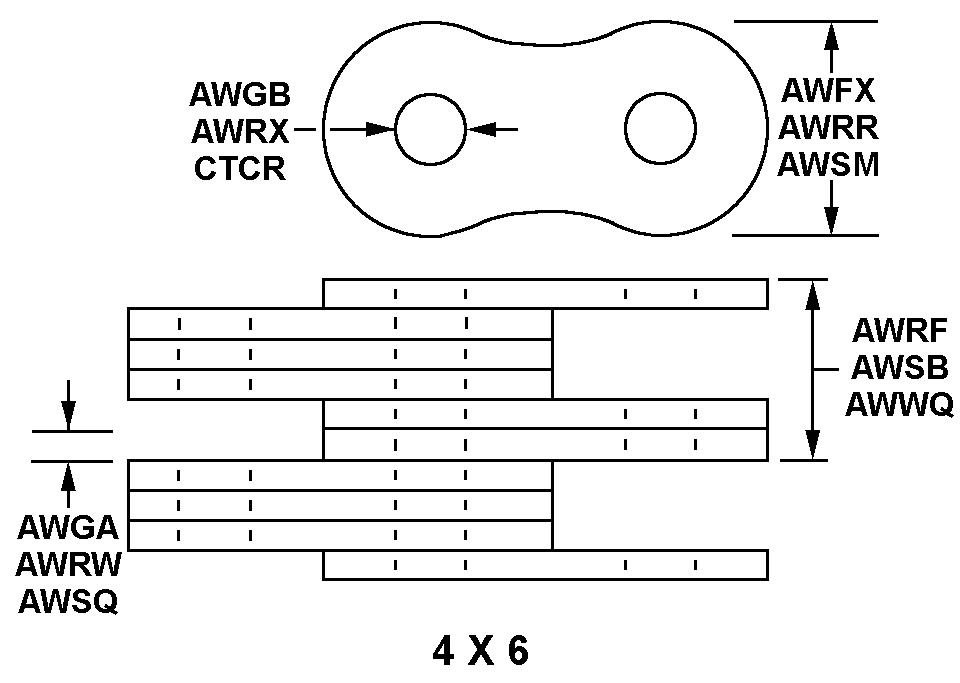

| LINK STYLE | E13 4 X 6 |
| LINK PLATE NOMINAL THICKNESS | 0.1562 INCHES |
| LINK PIN NOMINAL DIAMETER | 0.3740 INCHES |
| LINK NOMINAL WIDTH | 1.5620 INCHES |
| LINK PLATE WIDTH | 0.950 INCHES NOMINAL |
| LINK ROW QUANTITY | 1 |
| EFFECTIVE LENGTH | 7.4167 FEET NOMINAL |
Restrictions/Controls & Freight Information | NSN 3020-01-370-0198
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-370-0198
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
