NSN 3020-01-370-0374 80068055, 8006-8055, 8006-8055-1
Product Details | SPUR GEAR-SLIP CLUTCH
3020-01-370-0374 A slip clutch gear with complements of spur gear teeth.
Part Alternates: 80068055, 8006-8055, 8006-8055-1, 3020-01-370-0374, 01-370-0374, 3020013700374, 013700374, 800680551
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 11 JAN 1993 | 01-370-0374 | 28187 ( GEAR-SLIP CLUTCH, SPUR ) |
Drawings & Photos | NSN 3020-01-370-0374
Demand History | NSN 3020-01-370-0374
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-370-0374 | 2014-08-223 | 6 | DIBBS |
| 3020-01-370-0374 | 2014-07-212 | 9 | DIBBS |
| 3020-01-370-0374 | 2010-04-101 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-370-0374
Related Products | NSN 3020-01-370-0374
Technical Data | NSN 3020-01-370-0374
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TEETH QUANTITY | 48 |
| PRESSURE ANGLE | 20.0000 DEGREES |
| TORQUE CAPACITY | 16.00 INCH-OUNCES MINIMUM AND 18.00 INCH-OUNCES MAXIMUM |
| PRECISION CLASSIFICATION | QUALITY NUMBER 12 |

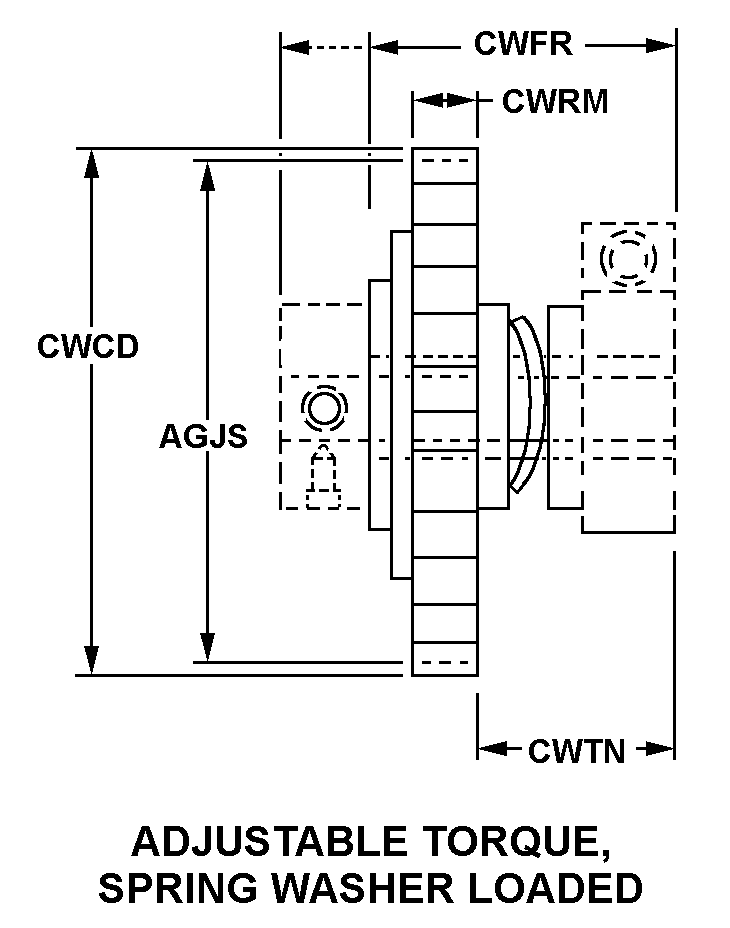

| STYLE DESIGNATOR | 55 ADJUSTABLE TORQUE, SPRING WASHER LOADED |
| PITCH DIAMETER | 0.6666 INCHES NOMINAL |
| NOMINAL OVERALL LENGTH | 1.015 INCHES |
| NOMINAL OUTSIDE DIAMETER | 0.694 INCHES |
| FACE NOMINAL WIDTH | 0.125 INCHES |
| NOMINAL DISTANCE BETWEEN FACE EDGE AND BODY END | 0.578 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.312 INCHES FIRST END |
| BORE STYLE | 1 PLAIN BOTH ENDS |
| BORE NOMINAL DIAMETER | 0.187 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 5 PINNED FIRST END |
| HUB NOMINAL DIAMETER | 0.375 INCHES FIRST END |
| SPECIAL FEATURES | GEAR BUSHING IS SINTERED BRONZE |
Restrictions/Controls & Freight Information | NSN 3020-01-370-0374
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121870 | GEAR/SPEED INCREASING/REDUCING MACH |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-370-0374
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
