Product Details | SPUR GEAR

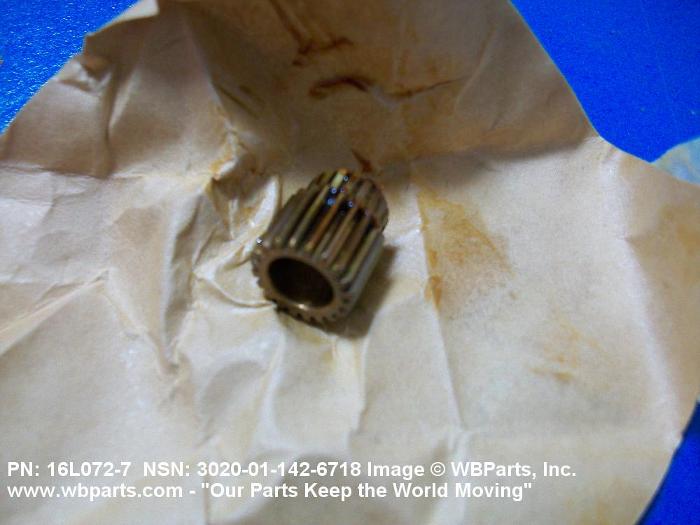

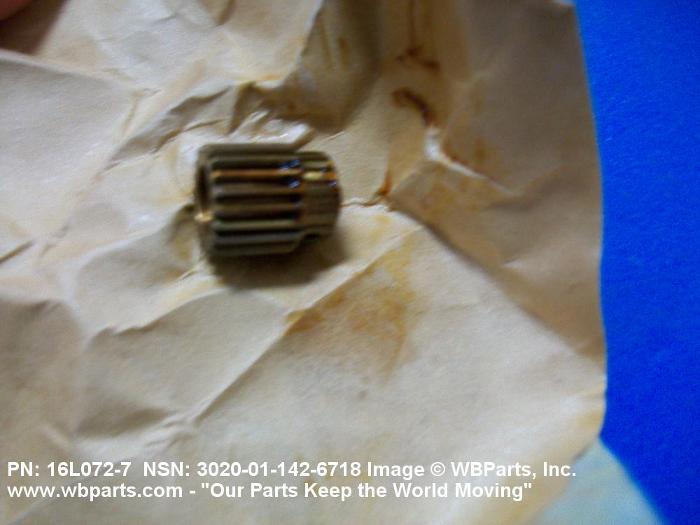

3020-01-142-6718 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 16L0727, 16L072-7, 3020-01-142-6718, 01-142-6718, 3020011426718, 011426718
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 18 NOV 1982 | 01-142-6718 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-01-142-6718
Demand History | NSN 3020-01-142-6718
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 16L0727 | 2012-11-334 | 36 | us |
| 3020-01-142-6718 | 2011-07-200 | 57 | United States |
| 3020-01-142-6718 | 2011-07-200 | 4 | United States |
| 3020-01-142-6718 | 2011-06-171 | 61 | DIBBS |
| 3020-01-142-6718 | 2011-02-46 | 8 | DIBBS |
| 3020-01-142-6718 | 2009-05-125 | 1 | DIBBS |
| 3020-01-142-6718 | 2009-02-36 | 15 | DIBBS |
| 3020-01-142-6718 | 2008-09-246 | 6 | DIBBS |
| 3020-01-142-6718 | 2008-05-133 | 9 | DIBBS |
| 3020-01-142-6718 | 2007-08-233 | 11 | DIBBS |
