NSN 3020-01-139-3496 8035001048, 803-5001048, 803-5001048 REV A PIECE 56
Product Details | INTERNAL GEAR
3020-01-139-3496 A gear with teeth formed on the inner surface of a cylinder or cone.
Part Alternates: 8035001048, 803-5001048, 803-5001048 REV A PIECE 56, 8035001048REVAPIECE56, 3020-01-139-3496, 01-139-3496, 3020011393496, 011393496
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 29 SEP 1982 | 01-139-3496 | 05465 ( GEAR, INTERNAL ) |

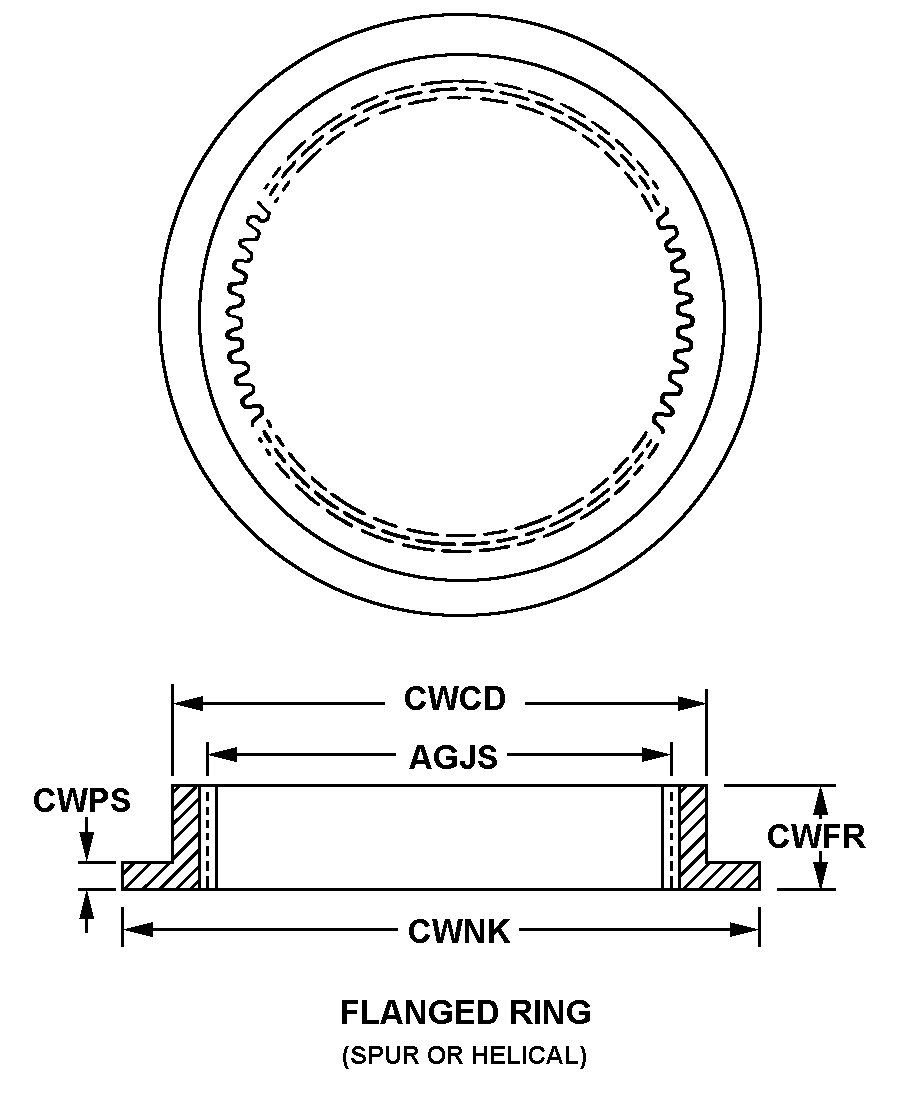

Drawings & Photos | NSN 3020-01-139-3496
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-139-3496
Related Products | NSN 3020-01-139-3496
Technical Data | NSN 3020-01-139-3496
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE AND AISI/SAE 4340 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| TEETH QUANTITY | 42 |
| TEETH TYPE | SPUR |
| TOOTH FORM | STUB |
| TOOTH DIRECTION | RIGHT |
| PRESSURE ANGLE | 20.0000 DEGREES |
| HELIX ANGLE | 45.0000 DEGREES |
| PITCH ANGLE | 45.2499 DEGREES |
| BACKLASH DESIGNATION | GRADE E |
| STYLE DESIGNATOR | 44 FLANGED RING |
| PITCH DIAMETER | 4.2000 INCHES NOMINAL |
| FLANGE NOMINAL DIAMETER | 5.344 INCHES |
| NOMINAL OUTSIDE DIAMETER | 4.5156 INCHES |
| FLANGE NOMINAL THICKNESS | 0.156 INCHES |
| FACE NOMINAL WIDTH | 3.938 INCHES |
| BODY STYLE | 1 PLAIN, SOLID |
