Product Details | INTERNAL GEAR

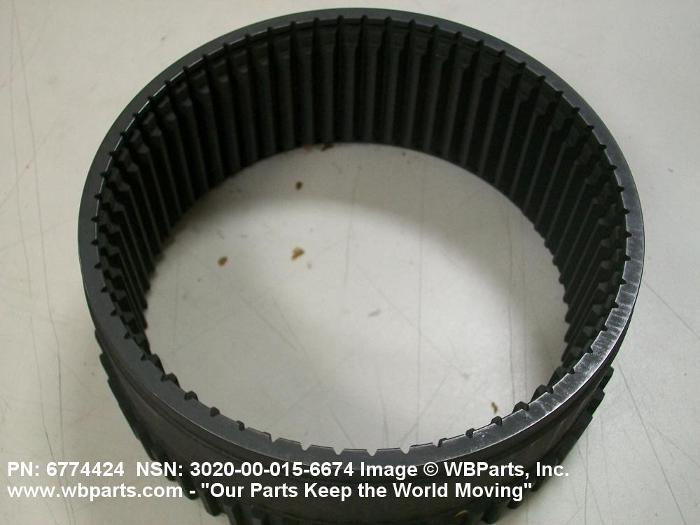

3020-00-015-6674 A gear with teeth formed on the inner surface of a cylinder or cone.

Part Alternates: 6774423, 6774424, 3020-00-015-6674, 00-015-6674, 2520000156675, 3020000156674 , 000156674

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG) NSN Assign. NIIN
30 01 JAN 1961 00-015-6674

Drawings & Photos | NSN 3020-00-015-6674


Demand History | NSN 3020-00-015-6674

Part Number Request Date QTY Origin
3020-00-015-6674 2015-04-119 21 United States
3020-00-015-6674 2013-12-350 10 DIBBS
3020-00-015-6674 2013-12-335 10 DIBBS
3020-00-015-6674 2011-08-215 0 United States
3020-00-015-6674 2011-05-146 18 DIBBS
3020-00-015-6674 2009-08-240 10 Belgium
3020-00-015-6674 2009-08-225 5 Netherlands

Cross Reference | NSN 3020-00-015-6674

Part Number Cage Code Manufacturer
3020000156674 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6774424 24617 GENERAL MOTORS CORP
6774424 6H244 W. W. WILLIAMS MIDWEST, INC. DBA WILLIAMS DISTRIBUTION
6774424 73342 ALLISON TRANSMISSION, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3020-00-015-6674

Technical Data | NSN 3020-00-015-6674

Characteristic Specifications
MATERIAL STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD SINGLE MATERIAL RESPONSE AND AISI/SAE 4140 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
TEETH QUANTITY 59
TEETH TYPE SPUR
TOOTH FORM STANDARD
TOOTH DIRECTION LEFT
PRESSURE ANGLE 25.0000 DEGREES
STYLE DESIGNATOR 45 RECESSED RING
PITCH DIAMETER 5.9000 INCHES NOMINAL
NOMINAL OVERALL LENGTH 2.660 INCHES
NOMINAL OUTSIDE DIAMETER 6.9000 INCHES
FACE NOMINAL WIDTH 1.875 INCHES
BODY RECESS NOMINAL DEPTH 2.131 INCHES BOTH ENDS
BODY RECESS NOMINAL DIAMETER 5.920 INCHES BOTH ENDS
BORE STYLE 1 PLAIN BOTH ENDS
BORE NOMINAL DIAMETER 5.705 INCHES BOTH ENDS
BODY STYLE 1 PLAIN, SOLID
