Product Details | SPUR GEAR
3020-01-050-0894 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 2090400353, 209-040-035-3, 3020-01-050-0894, 01-050-0894, 3020010500894, 010500894
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 31 OCT 1977 | 01-050-0894 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-01-050-0894
Demand History | NSN 3020-01-050-0894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-050-0894 | 2016-01-11 | 1 | DIBBS |
| 3020-01-050-0894 | 2015-11-328 | 5 | DIBBS |
| 3020-01-050-0894 | 2009-08-215 | 2 | DIBBS |
| 3020-01-050-0894 | 2009-06-157 | 16 | DIBBS |
| 3020-01-050-0894 | 2005-12-341 | 4 | DIBBS |
Cross Reference | NSN 3020-01-050-0894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 209-040-035-3 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-050-0894
Related Products | NSN 3020-01-050-0894
Technical Data | NSN 3020-01-050-0894
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL UNS K44315 OVERALL |
| HARDNESS RATING | 52.0 ROCKWELL C MINIMUM AND 55.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 35 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| PRECISION CLASSIFICATION | QUALITY NUMBER 12 |

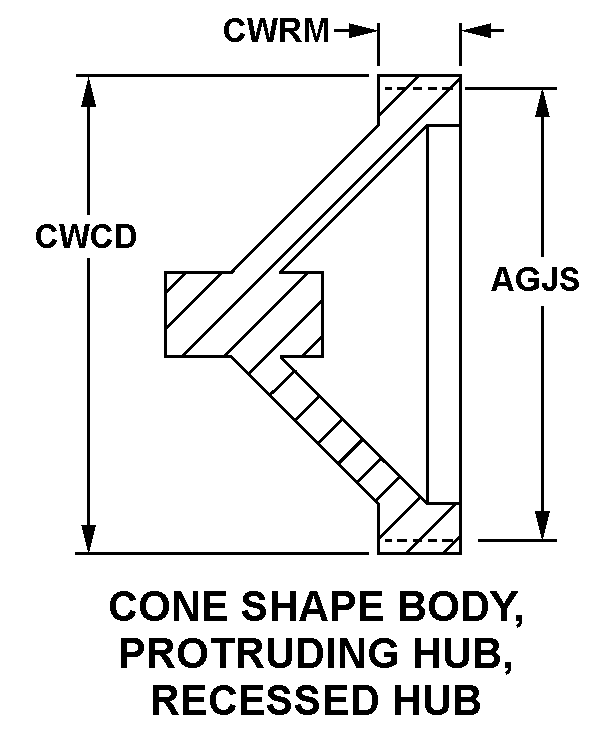

| STYLE DESIGNATOR | 16 CONE SHAPE BODY, PROTRUDING HUB, RECESSED HUB |
| FACE NOMINAL WIDTH | 0.190 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.670 INCHES SECOND END |
| NOMINAL DISTANCE BETWEEN BODY FACE AND RECESSED HUB END | 0.235 INCHES FIRST END |
| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.501 INCHES BOTH ENDS |
| SPLINE QUANTITY | 23 BOTH ENDS |
| SPLINE PITCH DIAMETER | 1.4375 INCHES NOMINAL BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN FIRST END |
| HUB NOMINAL DIAMETER | 1.850 INCHES BOTH ENDS |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
| SPECIAL FEATURES | FIRST END COUNTERBORE,1.630 IN. NOMINAL DIA,0.125 IN. NOMINAL DEPTH |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 209-040-035-3 |
