Product Details | SPROCKET WHEEL

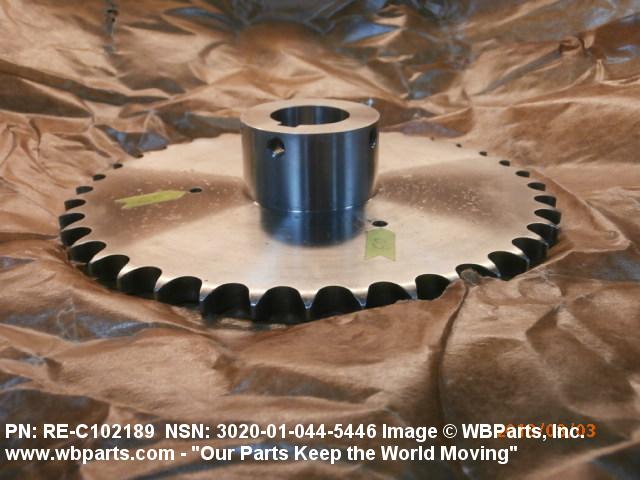

3020-01-044-5446 A toothed wheel whose teeth or sprockets are designed to be engaged with the links of a pitch chain, track, or the like. It is usually used for transmitting power.
Part Alternates: ASC1542382, REC102189, RE-C-102189, 3020-01-044-5446, 01-044-5446, 3020010445446, 010445446
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 15 JUL 1977 | 01-044-5446 | 04456 ( SPROCKET WHEEL ) |

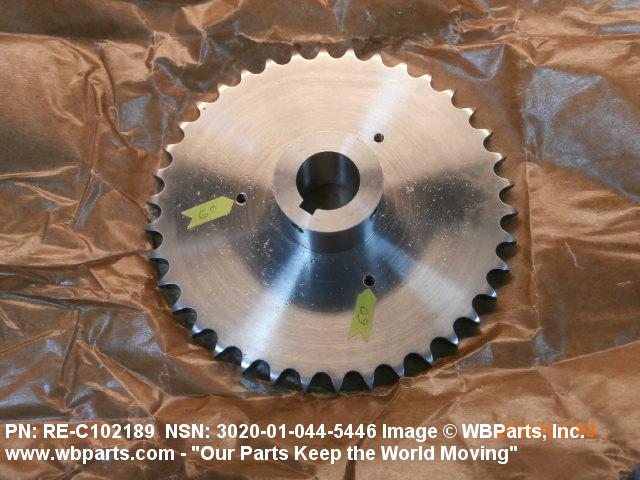

Drawings & Photos | NSN 3020-01-044-5446
Demand History | NSN 3020-01-044-5446
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-01-044-5446 | 2018-07-183 | 1 | United States |
| 3020-01-044-5446 | 2017-02-58 | 9 | DIBBS |
| 3020-01-044-5446 | 2017-02-46 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-044-5446
Related Products | NSN 3020-01-044-5446
Technical Data | NSN 3020-01-044-5446

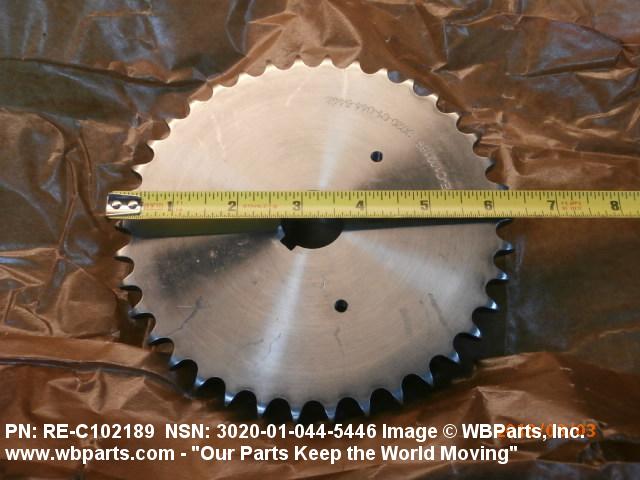

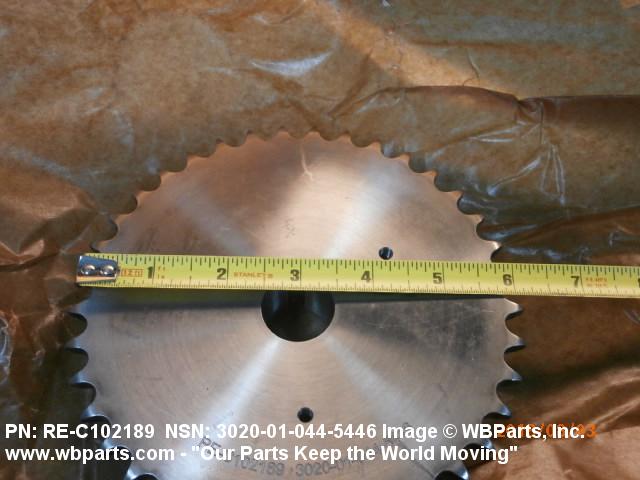

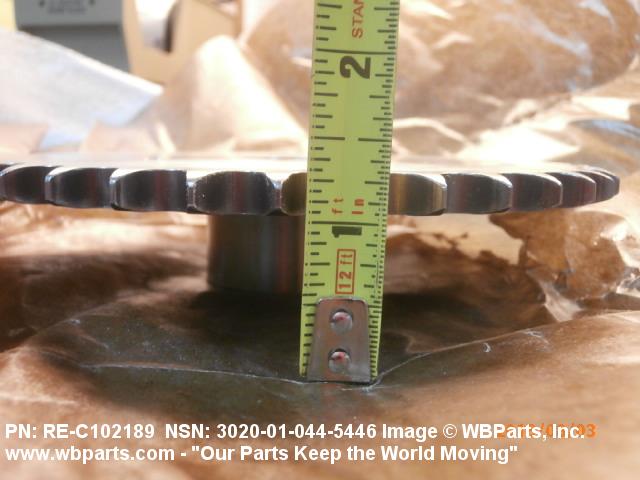

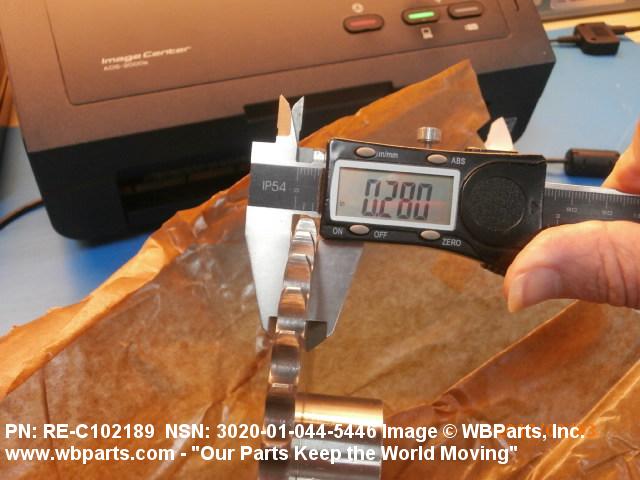

| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 PLAIN |
| OUTSIDE DIAMETER | 6.331 INCHES MINIMUM AND 6.337 INCHES MAXIMUM |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| PITCH DIAMETER | 6.003 INCHES MINIMUM AND 6.005 INCHES MAXIMUM |
| FACE WIDTH | 0.279 INCHES NOMINAL |

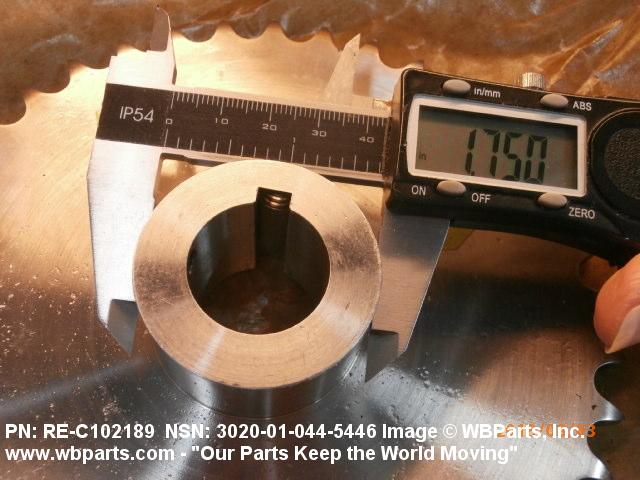

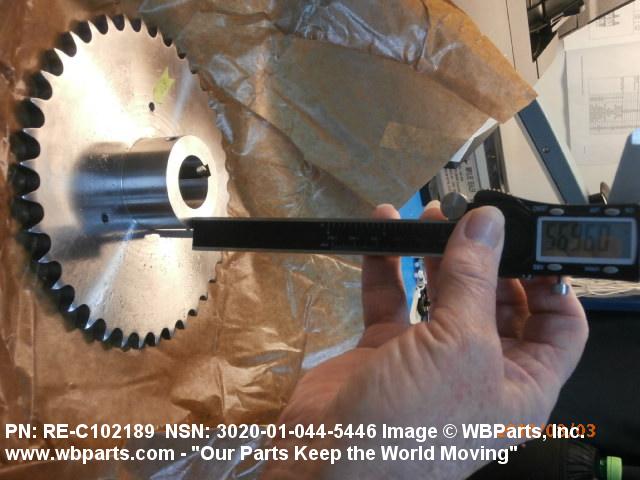

| HUB END OUTSIDE DIAMETER AND LOCATION | 1.750 INCHES NOMINAL AA END |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.971 INCHES NOMINAL AA END |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | NOT INCLUDED |
| BELT/CHAIN/FILM SIZE FOR WHICH DESIGNED | ROLLER CHAIN |
| ROLLER CHAIN PITCH TYPE FOR WHICH DESIGNED | SINGLE PITCH |
| TEETH ROW QUANTITY | 1 |
| TEETH QUANTITY PER ROW | 38 |
| TOOTH PITCH | 0.500 INCHES NOMINAL |
| ASA STANDARD CHAIN NUMBER | 40 |
| MATERIAL | STEEL,QQ-S-763,CLASS 302,COND A |
| HARDNESS RATING TEST METHOD | NOT RATED |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |

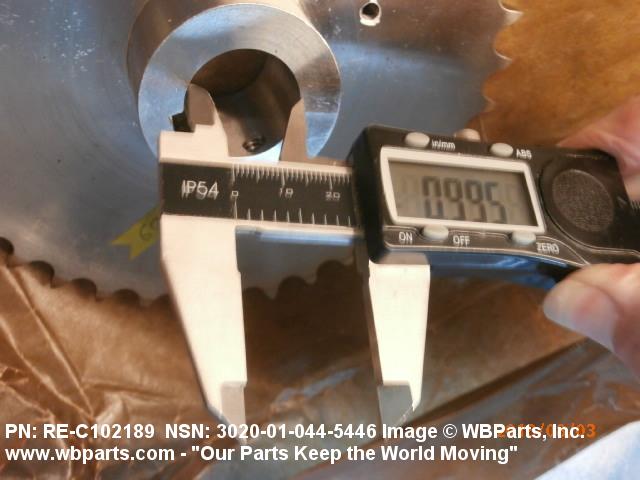

| BORE DIAMETER | 1.001 INCHES NOMINAL |
| BORE LENGTH | 1.250 INCHES NOMINAL |
| KEYING FACILITY | INCLUDED |
| KEYING FACILITY TYPE | KEYWAY |
| QUANTITY | 1 |

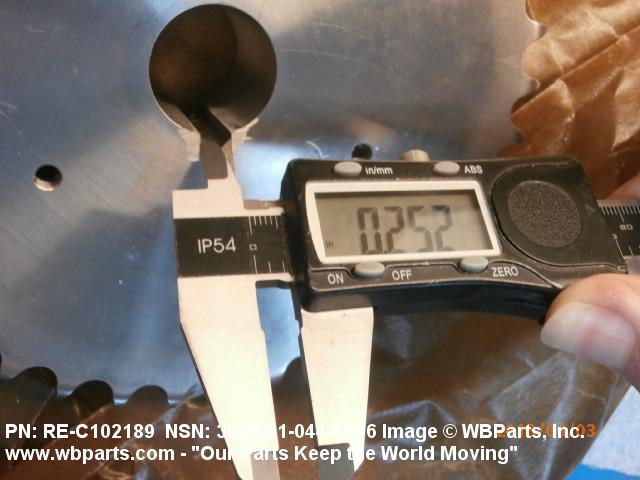

| KEYWAY WIDTH | 0.251 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |

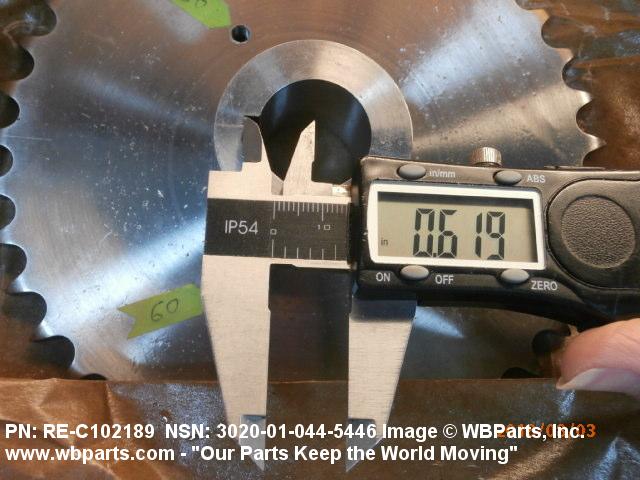

| DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.619 INCHES NOMINAL |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| HUB EXTERNAL KEYWAY | NOT INCLUDED |
| SECURING METHOD | THREADED HOLE |
| SECURING LOCATION | AA END |
| SECURING HOLE QUANTITY | 2 |

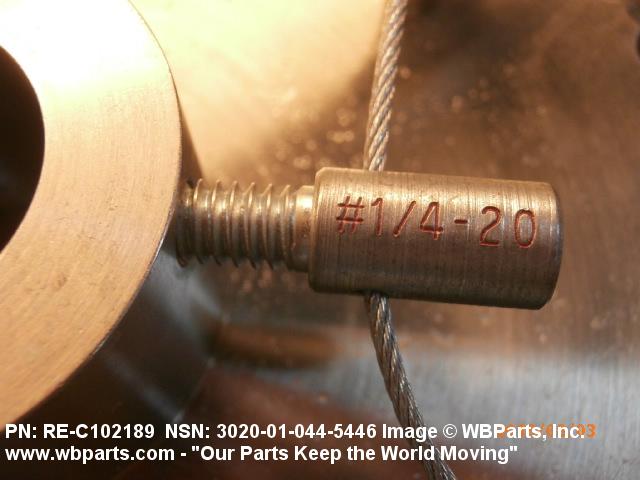

| THREAD SIZE | 0.250-20 |
| HOLE LOCATION | 2 HOLES 0.188 IN.FROM END OF HUB 90 DEG APART |
