NSN 3020-01-042-9770 1122F41, 1122F41H01, 617F204PC2
Product Details | SPUR GEAR
3020-01-042-9770 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 1122F41, 1122F41H01, 617F204PC2, 3020-01-042-9770, 01-042-9770, 3020010429770, 010429770
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 17 JUN 1977 | 01-042-9770 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-01-042-9770
Demand History | NSN 3020-01-042-9770
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1122F41 | 2024-08-227 | 1 | DIBBS |
| 1122F41H01 | 2024-08-227 | 1 | DIBBS |
| 617F204PC2 | 2024-08-227 | 1 | DIBBS |
| 1122F41 | 2024-08-219 | 1 | DIBBS |
| 1122F41H01 | 2024-08-219 | 1 | DIBBS |
| 617F204PC2 | 2024-08-219 | 1 | DIBBS |
| 1122F41 | 2024-05-151 | 1 | DIBBS |
| 1122F41H01 | 2024-05-151 | 1 | DIBBS |
| 617F204PC2 | 2024-05-151 | 1 | DIBBS |
| 1122F41 | 2024-05-143 | 1 | DIBBS |
| 1122F41H01 | 2024-05-143 | 1 | DIBBS |
| 617F204PC2 | 2024-05-143 | 1 | DIBBS |
| 1122F41 | 2023-05-143 | 1 | DIBBS |
| 1122F41H01 | 2023-05-143 | 1 | DIBBS |
| 617F204PC2 | 2023-05-143 | 1 | DIBBS |
| 1122F41 | 2020-12-348 | 3 | DIBBS |
| 1122F41H01 | 2020-12-348 | 3 | DIBBS |
| 617F204PC2 | 2020-12-348 | 3 | DIBBS |
| 3020-01-042-9770 | 2014-09-252 | 2 | DIBBS |
| 3020-01-042-9770 | 2014-07-212 | 2 | DIBBS |
Cross Reference | NSN 3020-01-042-9770
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1122F41 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 1122F41H01 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 617F204PC2 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-01-042-9770
Related Products | NSN 3020-01-042-9770
Technical Data | NSN 3020-01-042-9770
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| TEETH QUANTITY | 525 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 8.2035 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 8.2348 INCHES |
| FACE NOMINAL WIDTH | 1.000 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 3.1875 INCHES FIRST END 0.9375 INCHES SECOND END |

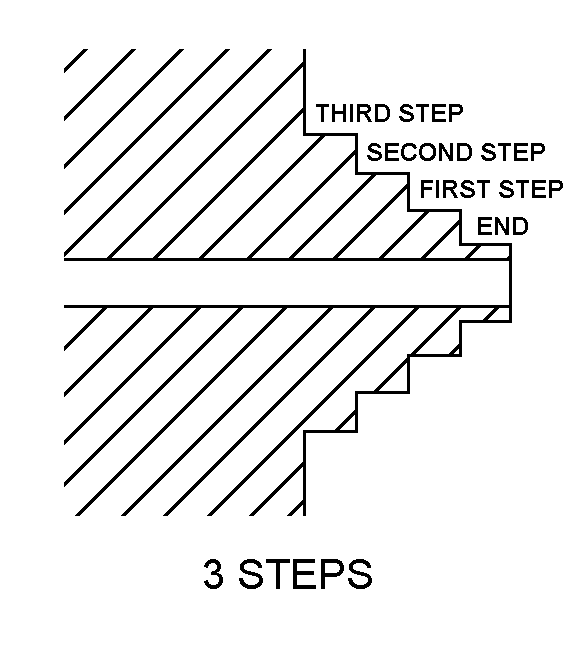

| HUB STYLE DESIGNATOR | 4C 3 STEPS FIRST END 4A 1 STEP SECOND END |
| END NOMINAL LENGTH | 1.0625 INCHES FIRST END 0.6875 INCHES SECOND END |
| END NOMINAL DIAMETER | 0.7190 INCHES FIRST END 1.3770 INCHES SECOND END |
| FIRST STEP NOMINAL LENGTH | 1.2500 INCHES BOTH ENDS |
| FIRST STEP NOMINAL DIAMETER | 1.127 INCHES FIRST END 1.5500 INCHES SECOND END |
| SECOND STEP NOMINAL LENGTH | 0.625 INCHES FIRST END |
| SECOND STEP NOMINAL DIAMETER | 1.3770 INCHES FIRST END |
| THIRD STEP NOMINAL LENGTH | 0.250 INCHES FIRST END |
| THIRD STEP NOMINAL DIAMETER | 1.542 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| FEATURES PROVIDED | CASEHARDENED |
Restrictions/Controls & Freight Information | NSN 3020-01-042-9770
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-01-042-9770
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
