NSN 3020-01-042-9370 695217, 695217 ITEM1 REV A1, 6952171
Product Details | ROLLER CHAIN
3020-01-042-9370 A flexible mechanical device consisting of one or more rows of links used for conveying or power transmission. The link side plates are flat or offset and are spaced apart by rollers, bushings and/or pins. The chain mates with a sprocket with an articulating action. The non-rotating bushing type chain is limited to that designated by the American National Standards Institute as "roller chain". Excludes CHAIN, BLOCK.
Part Alternates: 695217, 695217 ITEM1 REV A1, 6952171, 695217-1, 695217ITEM1REVA1, 3020-01-042-9370, 01-042-9370, 3020010429370, 010429370
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 17 JUN 1977 | 01-042-9370 | 04457 ( CHAIN, ROLLER ) |

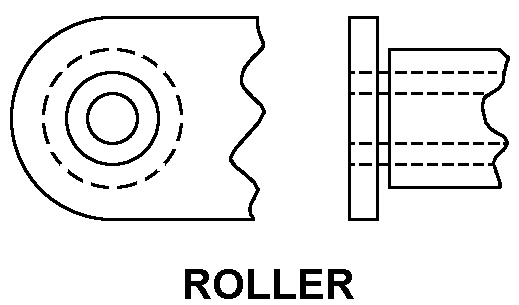

Drawings & Photos | NSN 3020-01-042-9370
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-01-042-9370
Technical Data | NSN 3020-01-042-9370
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| FIRST CHAIN LINK STYLE | A1 ROLLER |
| FIRST CHAIN LINK PLATE NOMINAL THICKNESS | 0.0150 INCHES |
| FIRST CHAIN LINK ROLLER NOMINAL DIAMETER | 0.0900 INCHES |
| FIRST CHAIN LINK NOMINAL WIDTH BETWEEN PLATES | 0.0720 INCHES |
| FIRST CHAIN LINK PLATE WIDTH | 0.138 INCHES NOMINAL |
| SECOND CHAIN LINK STYLE | A2 PIN |
| SECOND CHAIN LINK PLATE NOMINAL THICKNESS | 0.0150 INCHES |
| SECOND CHAIN LINK PIN NOMINAL DIAMETER | 0.0620 INCHES |
| SECOND CHAIN LINK NOMINAL WIDTH BETWEEN PLATES | 0.1020 INCHES |
| SECOND CHAIN LINK PLATE WIDTH | 0.138 INCHES NOMINAL |
| LINK ROW QUANTITY | 1 |
| END CONNECTION STYLE | 1 ROLLER |
| BUSHING HOLE DIAMETER | 0.0630 INCHES NOMINAL |
| PIN FASTENING METHOD | SPRING CLIP |
| PIN OVERALL LENGTH | 0.1820 INCHES NOMINAL |
| EFFECTIVE LENGTH | 0.6391 FEET NOMINAL |
| FEATURES PROVIDED | CHAIN W/UNJOINED ENDS |
| SPECIAL FEATURES | FURNISHED W/CONNECTING LINK |
