NSN 3020-00-898-2731 5461623002, 546-1623-002, 00-898-2731
Product Details | SPUR GEAR
3020-00-898-2731 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 5461623002, 546-1623-002, 3020-00-898-2731, 00-898-2731, 3020008982731, 008982731
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-898-2731 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-898-2731
Cross Reference | NSN 3020-00-898-2731
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 546-1623-002 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-898-2731
Technical Data | NSN 3020-00-898-2731
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | COLLINS RADIO CO 580-0103-00 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 185.0 BRINELL STANDARD MINIMUM AND 200.0 BRINELL STANDARD MAXIMUM OVERALL |
| TEETH QUANTITY | 21 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 2 PROTRUDING HUB |
| PITCH DIAMETER | 0.2625 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 0.2875 INCHES |
| FACE NOMINAL WIDTH | 0.125 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 1.516 INCHES FIRST END |

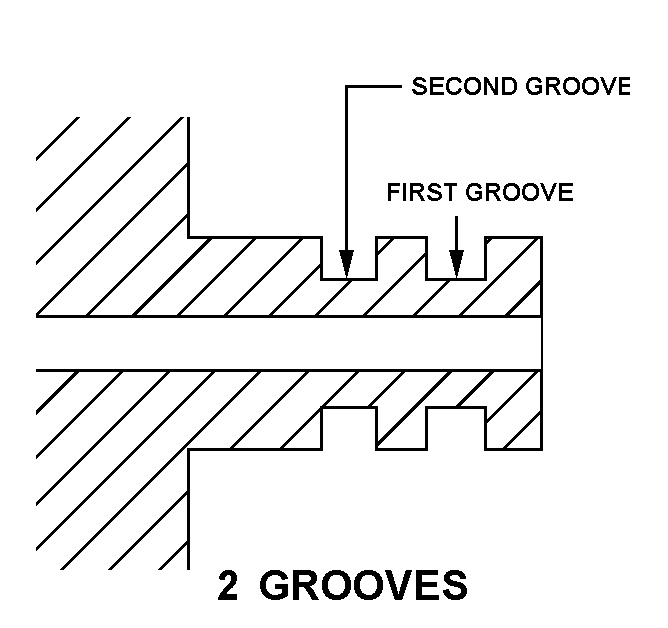

| HUB STYLE DESIGNATOR | 6B 2 GROOVES FIRST END |
| HUB NOMINAL DIAMETER | 0.124 INCHES FIRST END |
| FIRST GROOVE NOMINAL WIDTH | 0.017 INCHES FIRST END |
| FIRST GROOVE NOMINAL DIAMETER | 0.105 INCHES FIRST END |
| NOMINAL DISTANCE FROM END TO FIRST GROOVE | 0.078 INCHES FIRST END |
| SECOND GROOVE NOMINAL WIDTH | 0.017 INCHES FIRST END |
| SECOND GROOVE NOMINAL DIAMETER | 0.105 INCHES FIRST END |
| NOMINAL DISTANCE FROM END TO SECOND GROOVE | 1.299 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
Restrictions/Controls & Freight Information | NSN 3020-00-898-2731
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
