Product Details | SILENT CHAIN

3020-00-838-8233 A flexible mechanical device consisting of inverted tooth links, with or without guide links, and used for power transmission. The links are joined by pins and mate with the sprocket teeth with a sliding action. Excludes flexible mechanical devices specifically designed for use with COUPLING, SHAFT, FLEXIBLE.

Part Alternates: 5324, 3020-00-838-8233, 00-838-8233, 3020008388233, 008388233

Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain

Supply Group (FSG) NSN Assign. NIIN
30 01 JAN 1962 00-838-8233

Drawings & Photos | NSN 3020-00-838-8233


Cross Reference | NSN 3020-00-838-8233

Part Number Cage Code Manufacturer
5324 36384 FMC CORP LINK-BELT DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3020-00-838-8233

Technical Data | NSN 3020-00-838-8233

Characteristic Specifications
MATERIAL STEEL

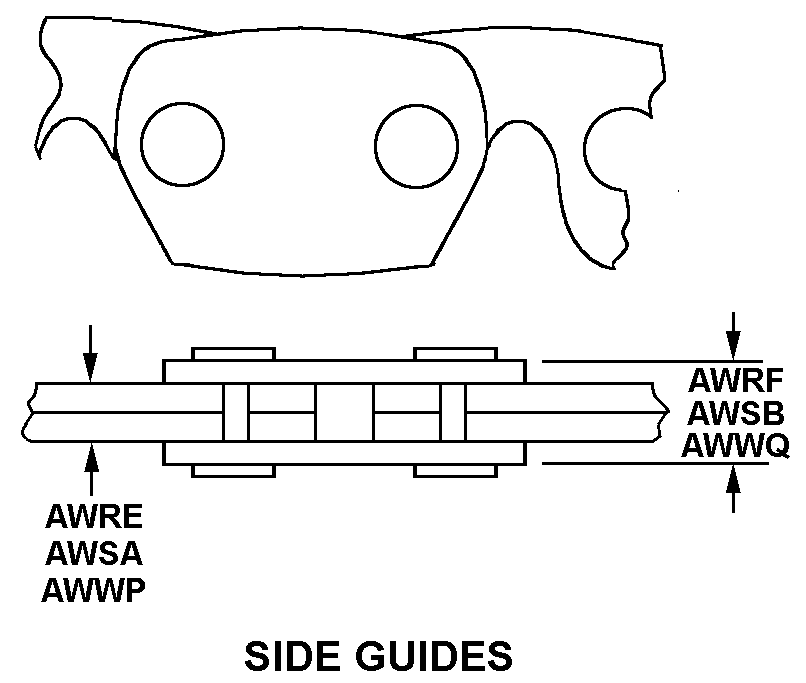

LINK STYLE D2 SIDE GUIDES
LINK NOMINAL WIDTH 1.5000 INCHES
MINIMUM TENSILE STRENGTH 7500 POUNDS PER SQUARE INCH
SPECIAL FEATURES LINK QTY 24; LINK CROSS-SEC THK 0.060; SHROUD

Restrictions/Controls & Freight Information | NSN 3020-00-838-8233

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
