NSN 3020-00-741-4256 M307539, K23134, KC2781
Product Details | SPUR GEAR
3020-00-741-4256 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: M307539, K23134, KC2781, 7414256, 7414261, 3020-00-741-4256, 00-741-4256, 3020007414256, 007414256
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1961 | 00-741-4256 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-741-4256
Demand History | NSN 3020-00-741-4256
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-741-4256 | 2007-03-60 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-741-4256
Related Products | NSN 3020-00-741-4256
Technical Data | NSN 3020-00-741-4256
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE AND AISI/SAE 8620H ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 58.0 ROCKWELL C MINIMUM AND 63.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 20 |
| TOOTH FORM | STUB |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 4.0000 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 4.285 INCHES |
| FACE NOMINAL WIDTH | 1.240 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.813 INCHES FIRST END 0.125 INCHES SECOND END |

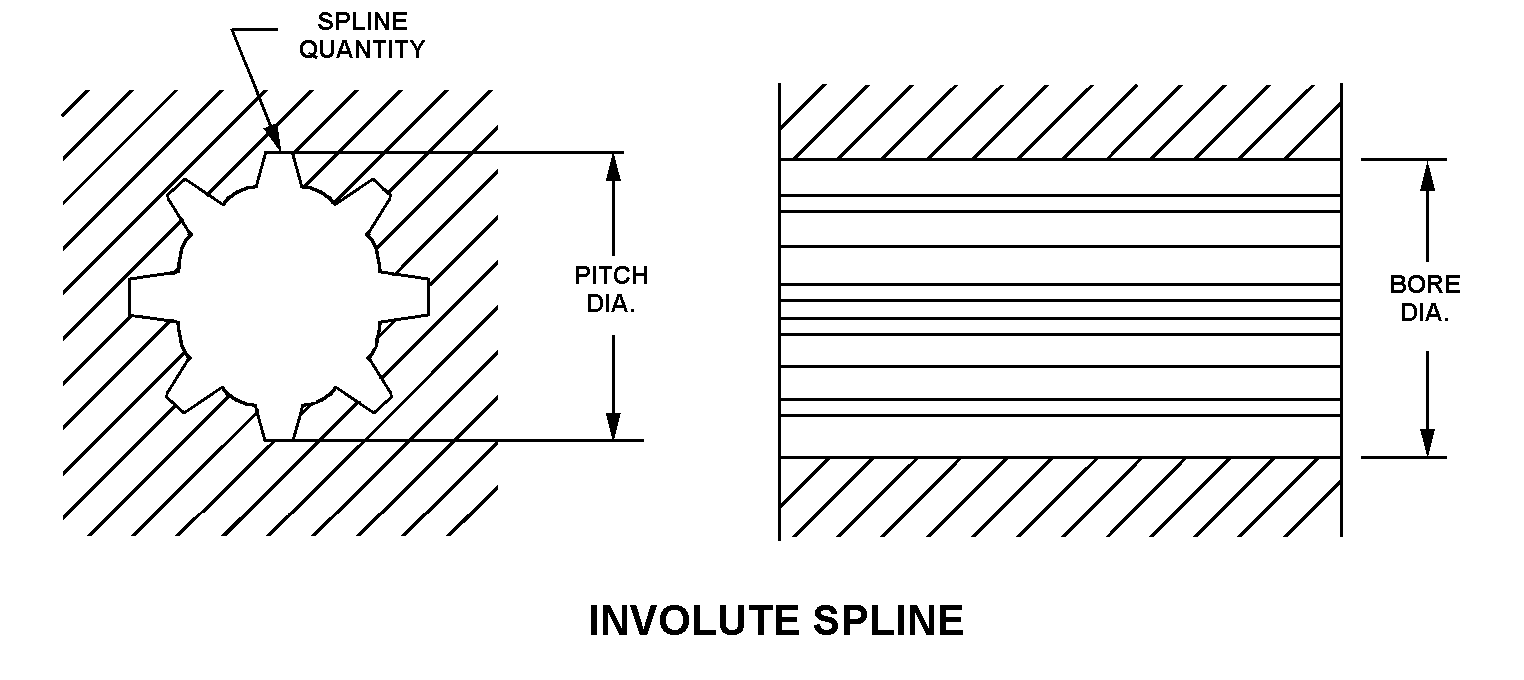

| BORE STYLE | 6 INVOLUTE SPLINE BOTH ENDS |
| BORE NOMINAL DIAMETER | 1.873 INCHES BOTH ENDS |
| SPLINE QUANTITY | 14 BOTH ENDS |
| SPLINE PITCH DIAMETER | 1.7500 INCHES NOMINAL BOTH ENDS |

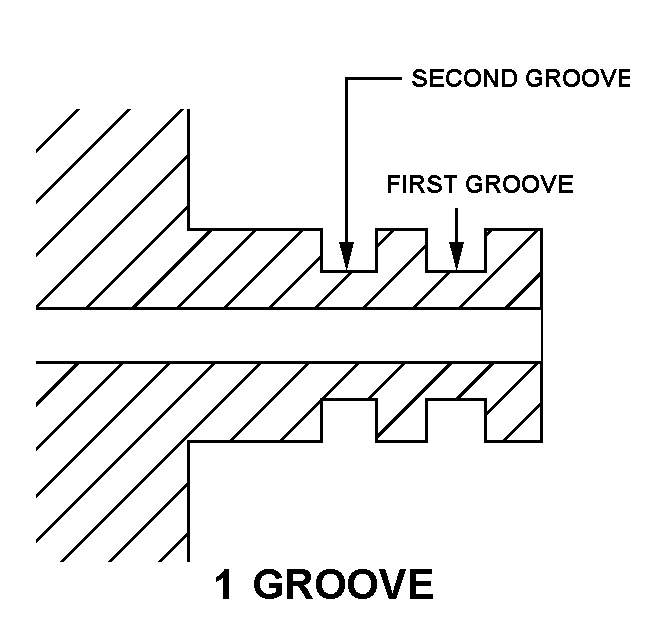

| HUB STYLE DESIGNATOR | 6A 1 GROOVE FIRST END 1 PLAIN SECOND END |
| HUB NOMINAL DIAMETER | 2.812 INCHES FIRST END 2.312 INCHES SECOND END |
| FIRST GROOVE NOMINAL WIDTH | 0.377 INCHES FIRST END |
| FIRST GROOVE NOMINAL DIAMETER | 2.312 INCHES SECOND END |
| NOMINAL DISTANCE FROM END TO FIRST GROOVE | 0.250 INCHES FIRST END |
| BODY STYLE | 1 PLAIN, SOLID |
| MANUFACTURERS CODE | 61465 |
| DESIGN CONTROL REFERENCE | M307539 |
