Product Details | SPUR GEAR

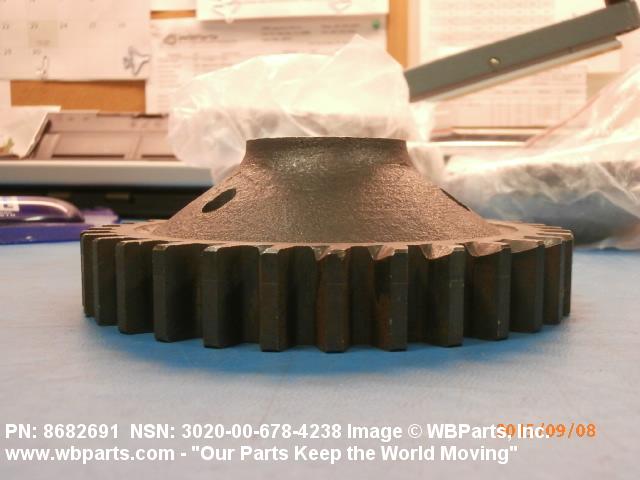

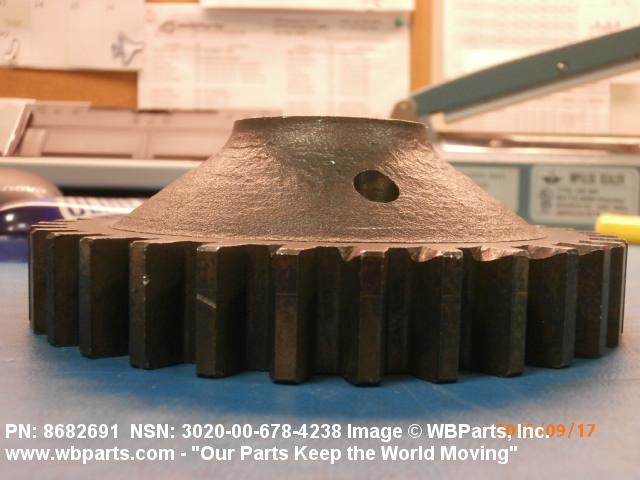

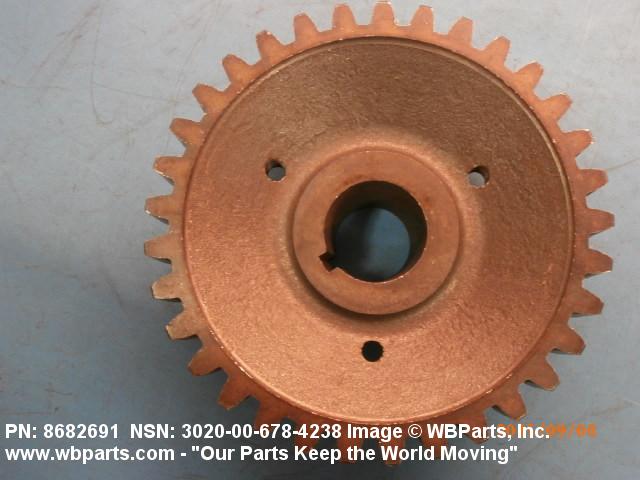

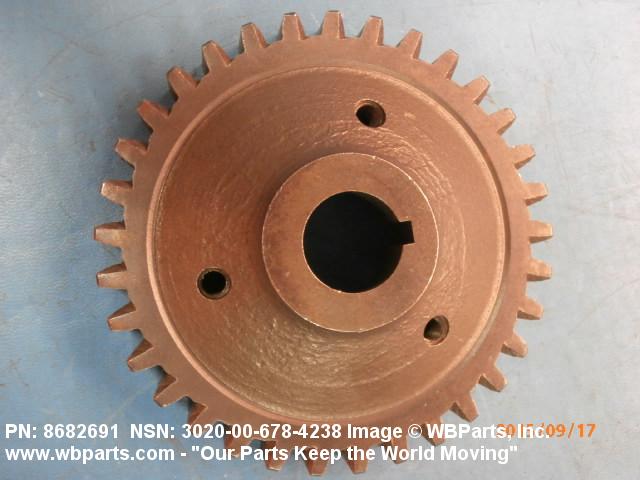

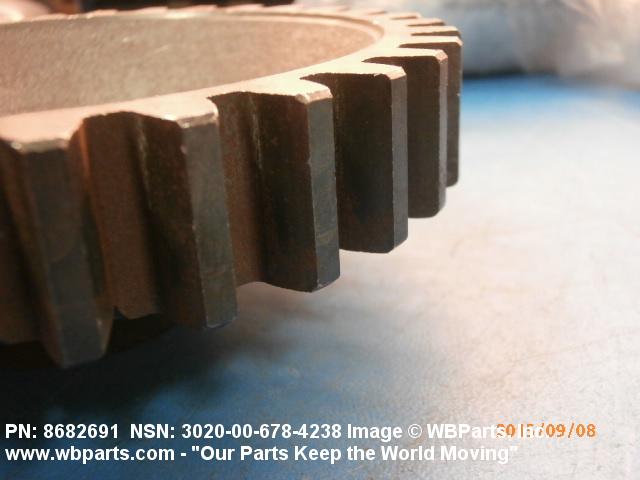

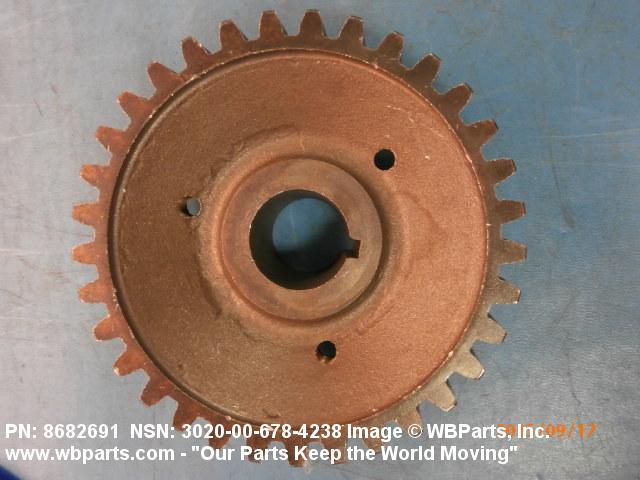

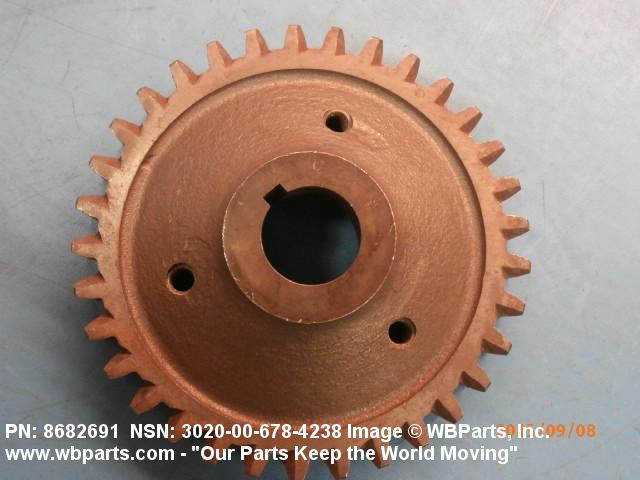

3020-00-678-4238 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 8682691, 3020-00-678-4238, 00-678-4238, 3020006784238, 006784238
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-678-4238 | 05466 ( GEAR, SPUR ) |
Drawings & Photos | NSN 3020-00-678-4238
Demand History | NSN 3020-00-678-4238
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-678-4238 | 2020-04-103 | 149 | DIBBS |
| 3020-00-678-4238 | 2019-10-301 | 36 | DIBBS |
| 3020-00-678-4238 | 2019-10-290 | 36 | DIBBS |
| 3020-00-678-4238 | 2019-04-119 | 146 | DIBBS |
| 3020-00-678-4238 | 2019-04-108 | 146 | DIBBS |
| 3020-00-678-4238 | 2019-01-17 | 92 | DIBBS |
| 3020-00-678-4238 | 2018-11-322 | 147 | DIBBS |
| 3020-00-678-4238 | 2017-02-39 | 8 | TR |
| 3020-00-678-4238 | 2015-08-216 | 178 | DIBBS |
| 3020-00-678-4238 | 2015-07-191 | 20 | United States |
| 3020-00-678-4238 | 2015-07-189 | 20 | us |
| 3020-00-678-4238 | 2015-03-78 | 46 | DIBBS |
| 3020-00-678-4238 | 2013-09-246 | 39 | DIBBS |
| 3020-00-678-4238 | 2013-08-230 | 39 | DIBBS |
| 3020-00-678-4238 | 2013-01-23 | 53 | DIBBS |
| 3020-00-678-4238 | 2012-11-333 | 95 | DIBBS |
| 3020-00-678-4238 | 2012-09-271 | 65 | DIBBS |
| 3020-00-678-4238 | 2012-03-61 | 66 | DIBBS |
| 3020-00-678-4238 | 2012-02-38 | 21 | DIBBS |
| 3020-00-678-4238 | 2011-11-307 | 39 | DIBBS |
| 3020-00-678-4238 | 2010-01-04 | 59 | DIBBS |
| 3020-00-678-4238 | 2009-03-63 | 314 | DIBBS |
| 3020-00-678-4238 | 2008-06-154 | 16 | DIBBS |
| 3020-00-678-4238 | 2007-11-313 | 66 | DIBBS |
Cross Reference | NSN 3020-00-678-4238
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-678-4238
Related Products | NSN 3020-00-678-4238
Technical Data | NSN 3020-00-678-4238
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-13048 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 33 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 20.0000 DEGREES |
| STYLE DESIGNATOR | 9 ONE PROTRUDING HUB, ONE RECESSED HUB |

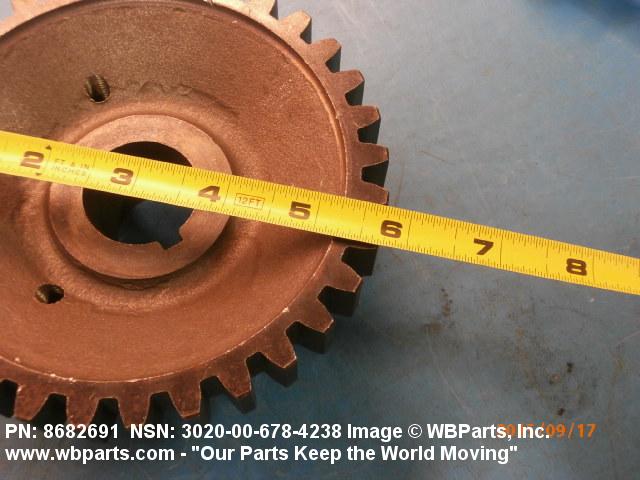

| PITCH DIAMETER | 5.5000 INCHES NOMINAL |

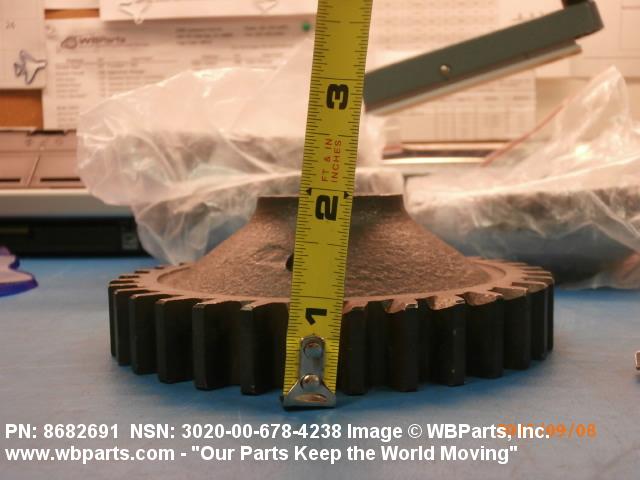

| NOMINAL OVERALL LENGTH | 1.910 INCHES |

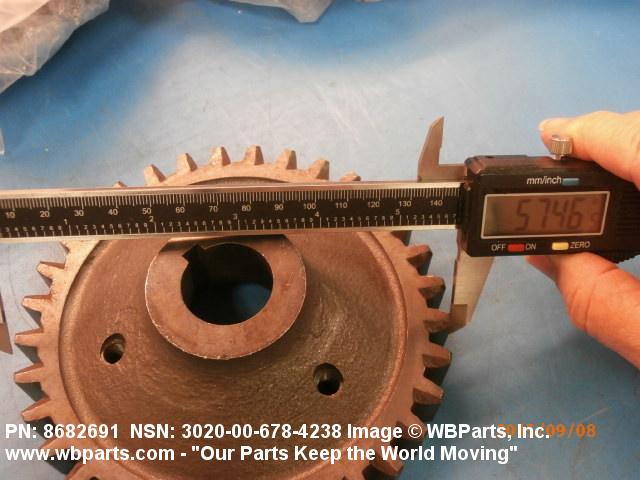

| NOMINAL OUTSIDE DIAMETER | 5.747 INCHES |

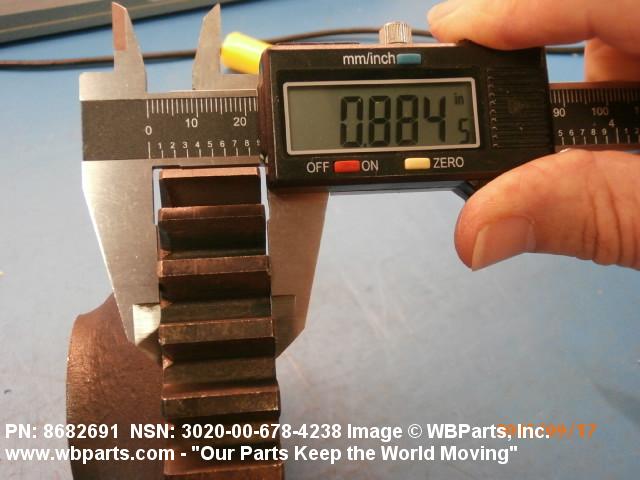

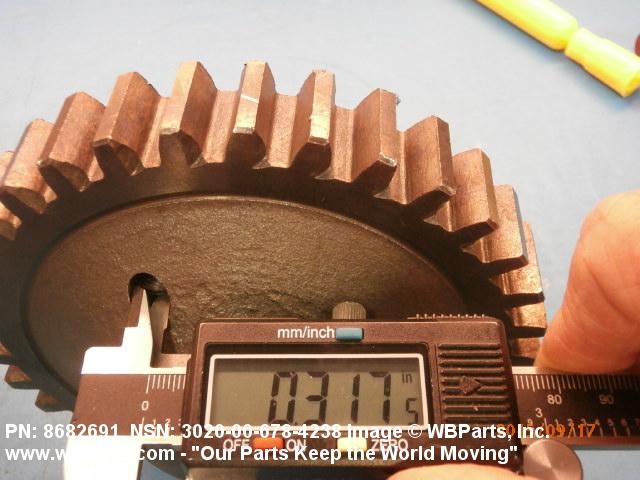

| FACE NOMINAL WIDTH | 0.880 INCHES |

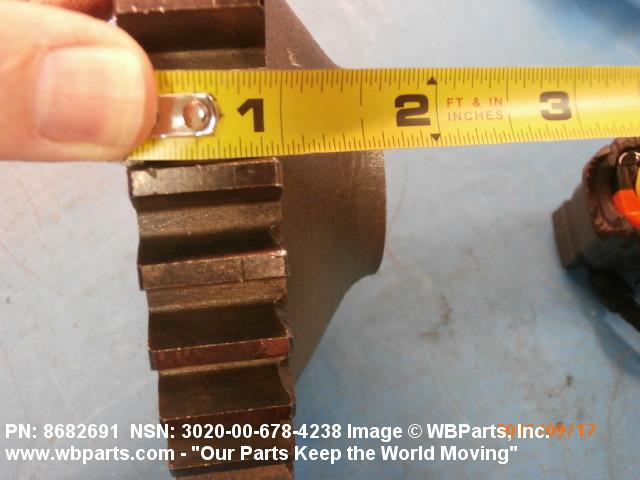

| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 1.030 INCHES FIRST END 0.250 INCHES SECOND END |
| NOMINAL DISTANCE BETWEEN BODY FACE AND RECESSED HUB END | 0.630 INCHES SECOND END |

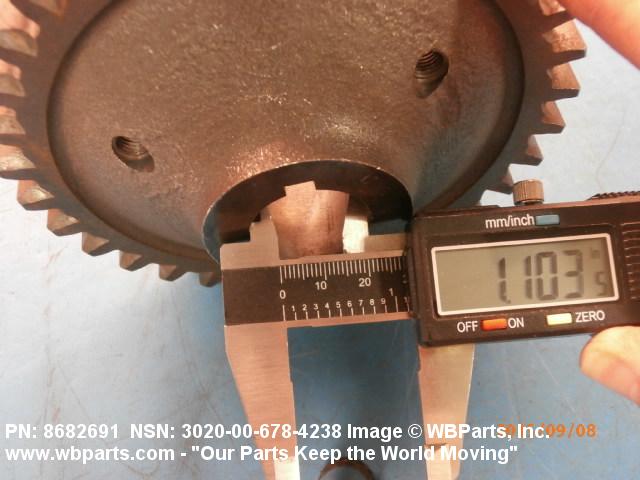

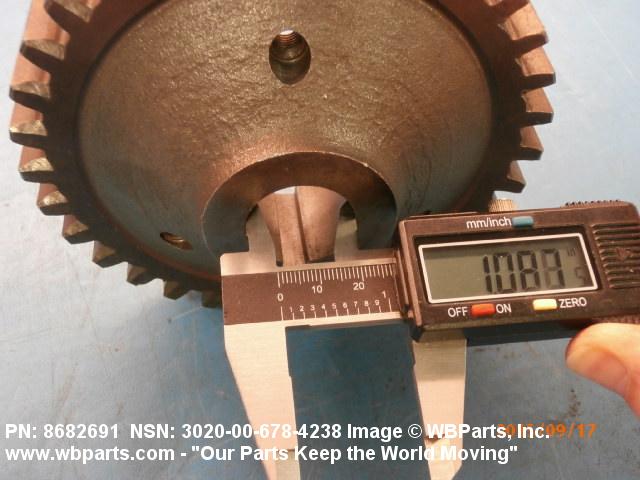

| BORE STYLE | 12 TAPERED W/KEYWAY BOTH ENDS |
| KEYWAY NOMINAL WIDTH | 0.252 INCHES BOTH ENDS |
| NOMINAL DISTANCE FROM BORE CENTER TO KEYWAY BOTTOM | 0.550 INCHES FIRST END 0.679 INCHES SECOND END |
| TAPER MAJOR NOMINAL DIAMETER | 1.358 INCHES SECOND END |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |
| HUB NOMINAL DIAMETER | 1.910 INCHES FIRST END 2.090 INCHES SECOND END |
| BODY STYLE | 3B WEBBED, OFFSET, SOLID |
| ATTACHMENT METHOD | MOUNTING HOLE |
| MOUNTING HOLE TYPE AND QUANTITY | 3 THREADED AXIALLY THROUGH BODY, FIRST END |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNF AXIALLY THROUGH BODY, FIRST END |

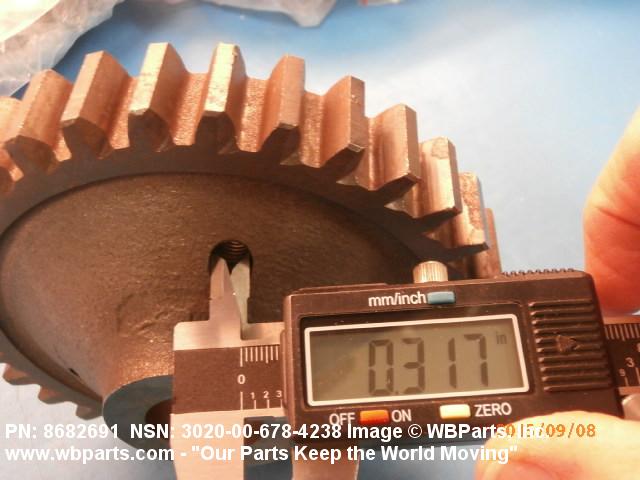

| MOUNTING HOLE NOMINAL THREAD SIZE | 0.312 INCHES TRANSVERSELY THROUGH FACE |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 24 AXIALLY THROUGH BODY, FIRST END |
| BOLT HOLE CIRCLE NOMINAL DIAMETER | 3.120 INCHES AXIALLY THROUGH BODY, FIRST END |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8682691 |
