Product Details | SPUR GEAR

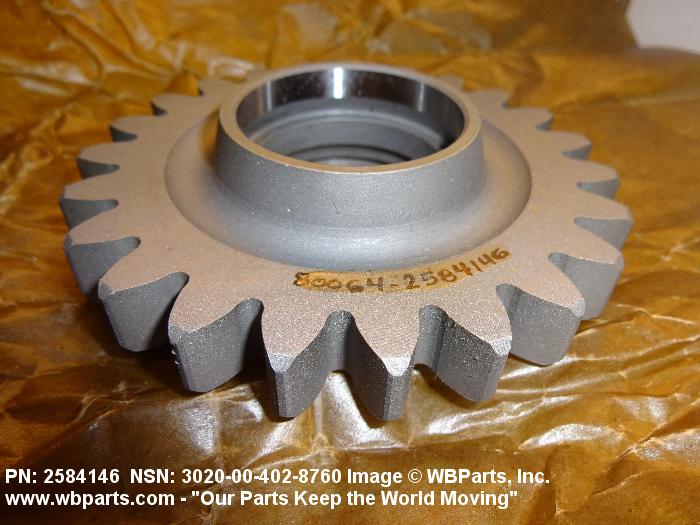

3020-00-402-8760 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 2584146, 3020-00-402-8760, 00-402-8760, 3020004028760, 004028760
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 08 JUN 1970 | 00-402-8760 | 05466 ( GEAR, SPUR ) |

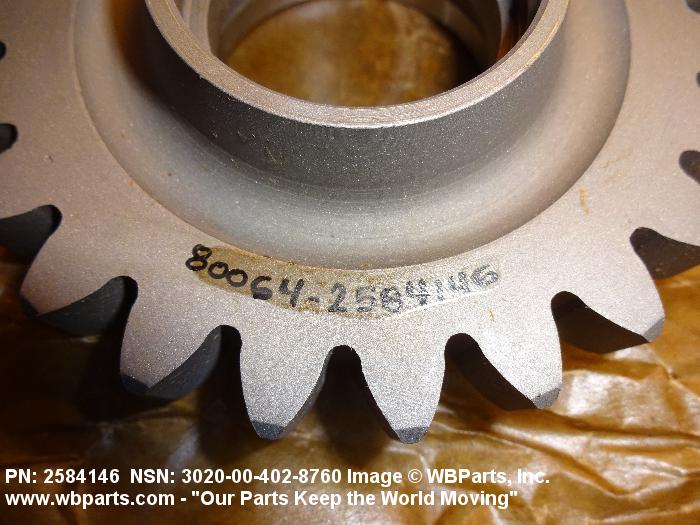

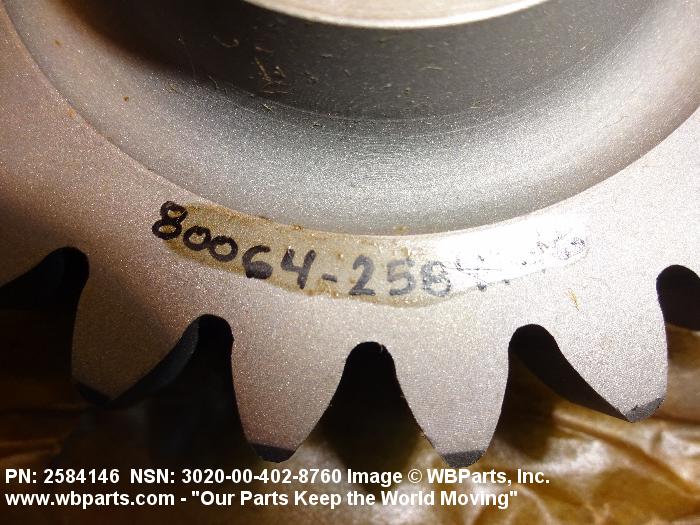

Drawings & Photos | NSN 3020-00-402-8760
Demand History | NSN 3020-00-402-8760
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3020-00-402-8760 | 2022-11-317 | 25 | DIBBS |
| 3020-00-402-8760 | 2022-10-279 | 30 | DIBBS |
| 3020-00-402-8760 | 2022-04-100 | 15 | DIBBS |
| 3020-00-402-8760 | 2022-03-83 | 5 | DIBBS |
| 3020-00-402-8760 | 2022-01-03 | 5 | DIBBS |
| 3020-00-402-8760 | 2021-09-245 | 8 | DIBBS |
| 3020-00-402-8760 | 2021-05-126 | 4 | DIBBS |
| 3020-00-402-8760 | 2021-02-49 | 3 | DIBBS |
| 3020-00-402-8760 | 2020-12-352 | 3 | DIBBS |
| 3020-00-402-8760 | 2020-11-327 | 5 | DIBBS |
| 3020-00-402-8760 | 2017-08-235 | 21 | DIBBS |
| 3020-00-402-8760 | 2017-06-173 | 4 | DIBBS |
| 3020-00-402-8760 | 2017-05-144 | 5 | DIBBS |
| 3020-00-402-8760 | 2017-05-142 | 3 | United States |
| 3020-00-402-8760 | 2016-10-301 | 4 | DIBBS |
| 3020-00-402-8760 | 2014-03-86 | 23 | DIBBS |
| 3020-00-402-8760 | 2010-12-354 | 5 | DIBBS |
| 3020-00-402-8760 | 2009-03-77 | 10 | DIBBS |
| 3020-00-402-8760 | 2008-03-79 | 25 | DIBBS |
| 3020-00-402-8760 | 2006-04-103 | 10 | DIBBS |
| 3020-00-402-8760 | 2006-02-38 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-402-8760
Related Products | NSN 3020-00-402-8760
Technical Data | NSN 3020-00-402-8760
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-13048,3310H,8822H,9310H,862 0H,4815H MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 28.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM HUB 58.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM TEETH |
| TEETH QUANTITY | 23 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 25.0000 DEGREES |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 3.8333 INCHES NOMINAL |

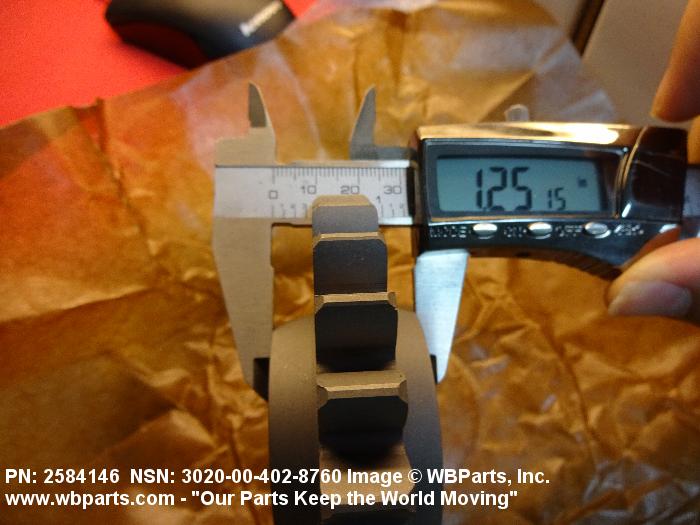

| NOMINAL OVERALL LENGTH | 1.250 INCHES |

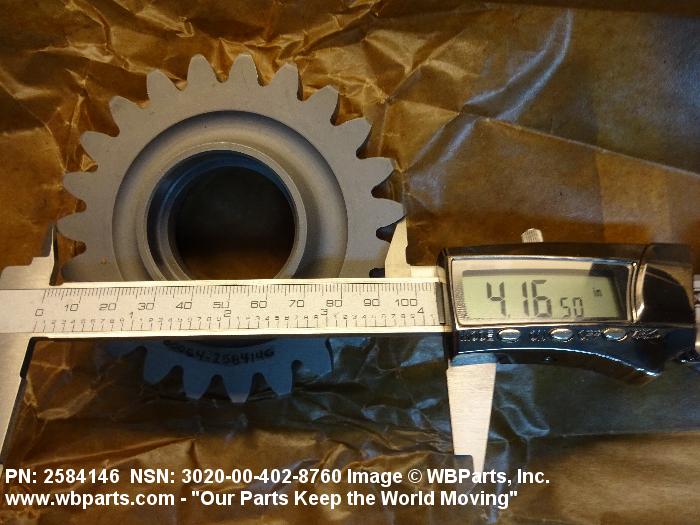

| NOMINAL OUTSIDE DIAMETER | 4.161 INCHES |
| FACE NOMINAL WIDTH | 0.500 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.375 INCHES BOTH ENDS |

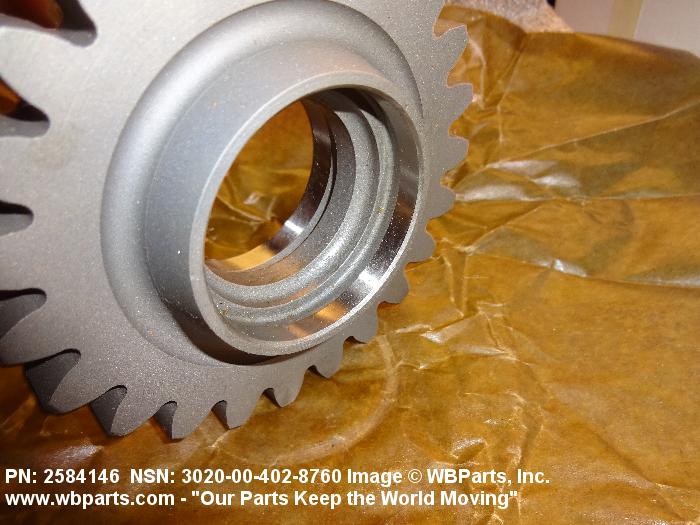

| BORE STYLE | 15 W/STEPPED COUNTERBORE COUNTERBORE, FIRST END 14 W/COUNTERBORE COUNTER BORE, SECOND END |
| BORE NOMINAL DIAMETER | 1.500 INCHES BOTH ENDS |
| COUNTERBORE NOMINAL DEPTH | 0.374 INCHES FIRST COUNTERBORE, FIRST END 0.562 INCHES SECOND COUNTERBORE, FIRST END 0.438 INCHES COUNTER BORE, SECOND END |
| COUNTERBORE NOMINAL DIAMETER | 1.851 INCHES FIRST COUNTERBORE, FIRST END 1.168 INCHES SECOND COUNTERBORE, FIRST END 1.654 INCHES COUNTER BORE, SECOND END |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |

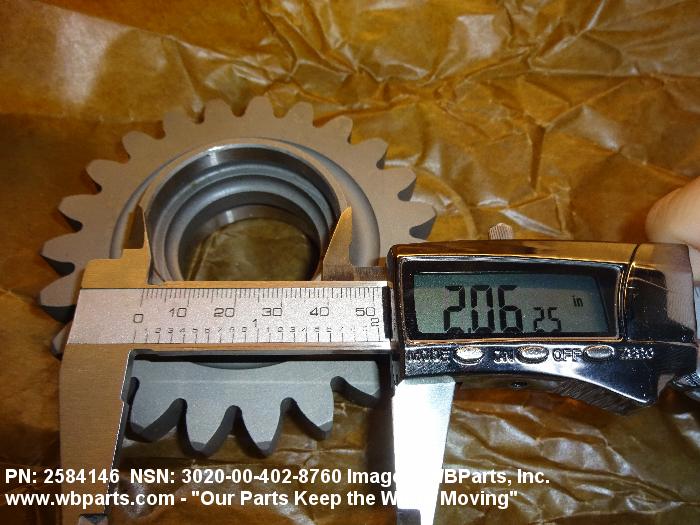

| HUB NOMINAL DIAMETER | 2.062 INCHES FIRST END 1.875 INCHES SECOND END |
| BODY STYLE | 3A WEBBED, SOLID |
