NSN 3020-00-334-9742 4013075, 4047887, 00-334-9742
Product Details | SPUR GEAR
3020-00-334-9742 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Part Alternates: 4013075, 4047887, 3020-00-334-9742, 00-334-9742, 3020003349742, 003349742
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 24 DEC 1973 | 00-334-9742 | 05466 ( GEAR, SPUR ) |

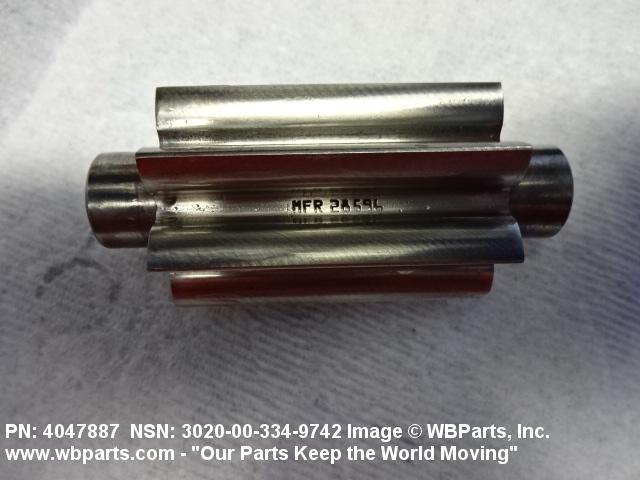

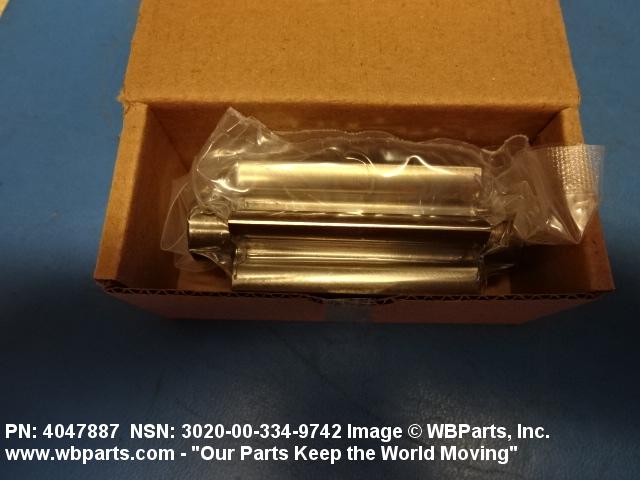

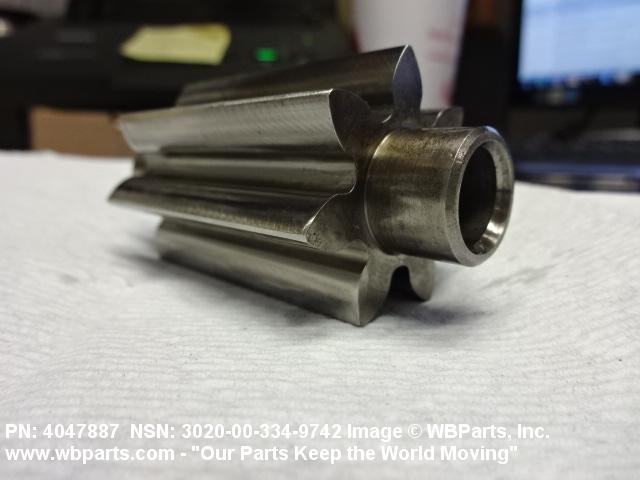

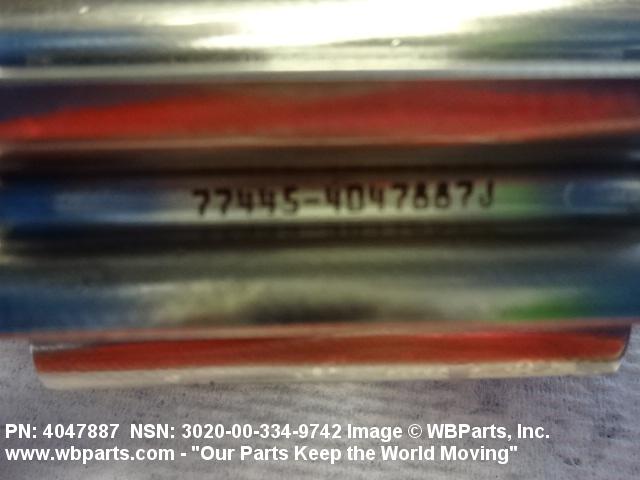

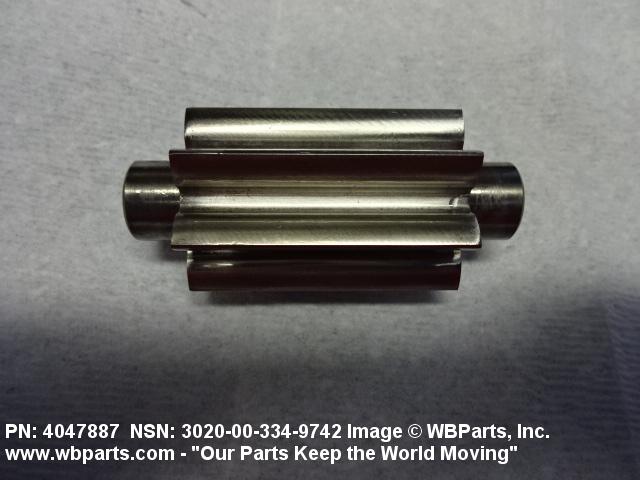

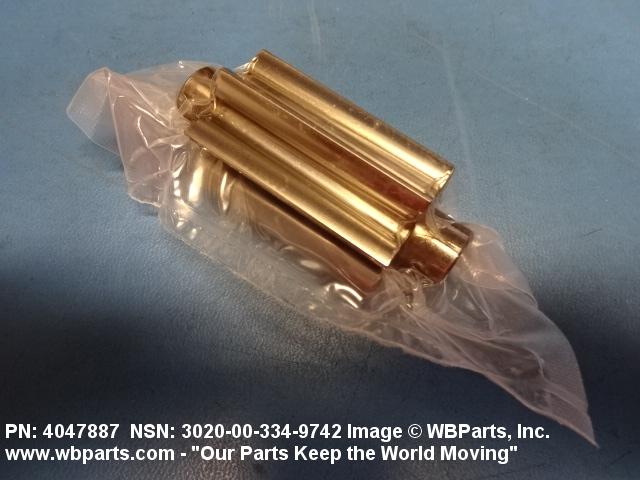

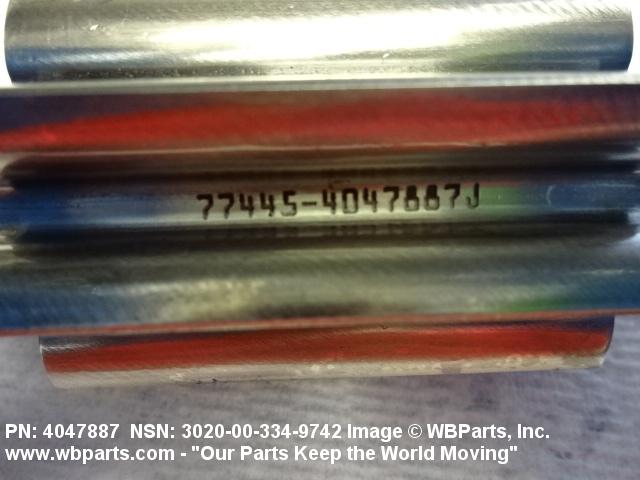

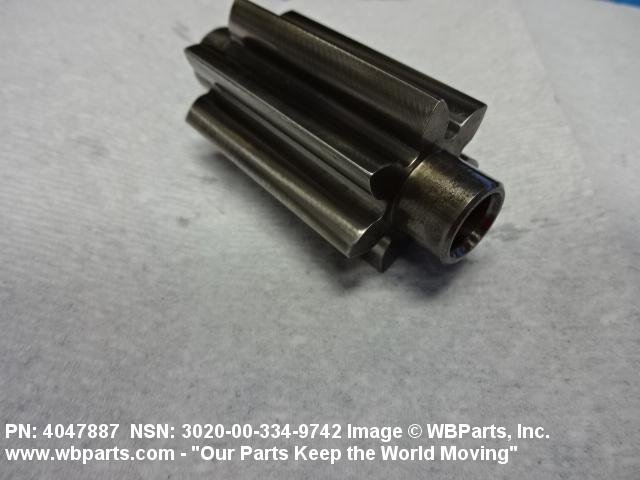

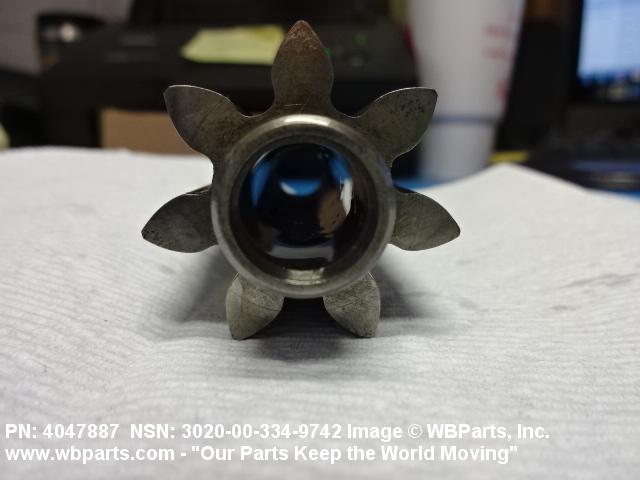

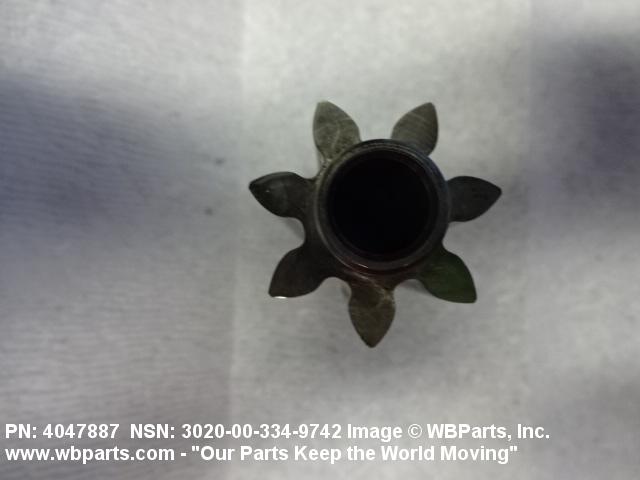

Drawings & Photos | NSN 3020-00-334-9742
Demand History | NSN 3020-00-334-9742
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4047887 | 2019-12-352 | 57 | DIBBS |
| 4047887 | 2019-10-301 | 9 | DIBBS |
| 4047887 | 2019-09-273 | 24 | DIBBS |
| 3020-00-334-9742 | 2017-07-209 | 36 | United States |
| 3020-00-334-9742 | 2017-06-180 | 62 | DIBBS |
| 3020-00-334-9742 | 2017-04-100 | 140 | DIBBS |
| 3020-00-334-9742 | 2017-03-61 | 138 | DIBBS |
| 3020-00-334-9742 | 2017-02-37 | 133 | DIBBS |
| 3020-00-334-9742 | 2016-12-340 | 124 | DIBBS |
| 3020-00-334-9742 | 2016-07-193 | 45 | DIBBS |
| 3020-00-334-9742 | 2016-04-102 | 28 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3020-00-334-9742
Related Products | NSN 3020-00-334-9742
Technical Data | NSN 3020-00-334-9742
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E9310 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6260 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| TEETH QUANTITY | 7 |
| TOOTH FORM | STANDARD |
| PRESSURE ANGLE | 28.0000 DEGREES |
| STYLE DESIGNATOR | 4 PROTRUDING HUBS |
| PITCH DIAMETER | 1.1667 INCHES NOMINAL |

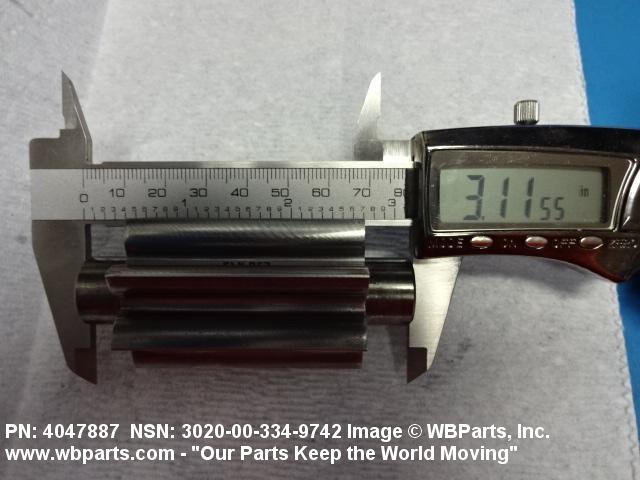

| NOMINAL OVERALL LENGTH | 3.120 INCHES |

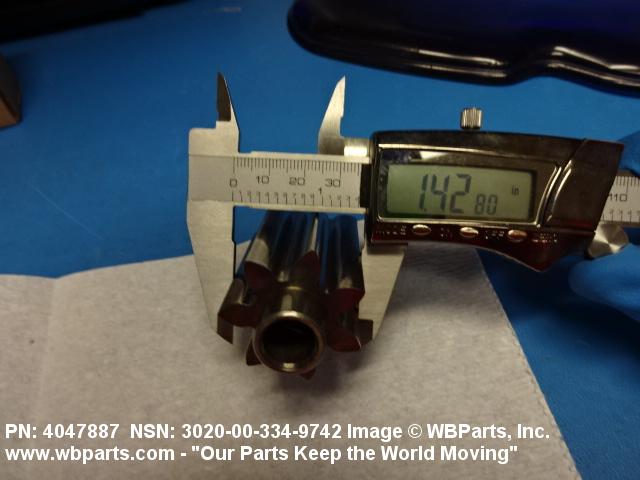

| NOMINAL OUTSIDE DIAMETER | 1.498 INCHES |
| FACE NOMINAL WIDTH | 2.180 INCHES |
| NOMINAL DISTANCE BETWEEN BODY FACE AND PROTRUDING HUB END | 0.470 INCHES BOTH ENDS |
| BORE STYLE | 1 PLAIN BOTH ENDS |

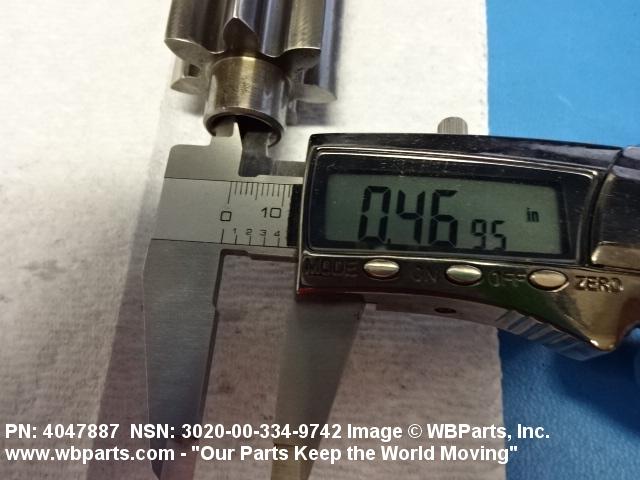

| BORE NOMINAL DIAMETER | 0.470 INCHES BOTH ENDS |
| HUB STYLE DESIGNATOR | 1 PLAIN BOTH ENDS |

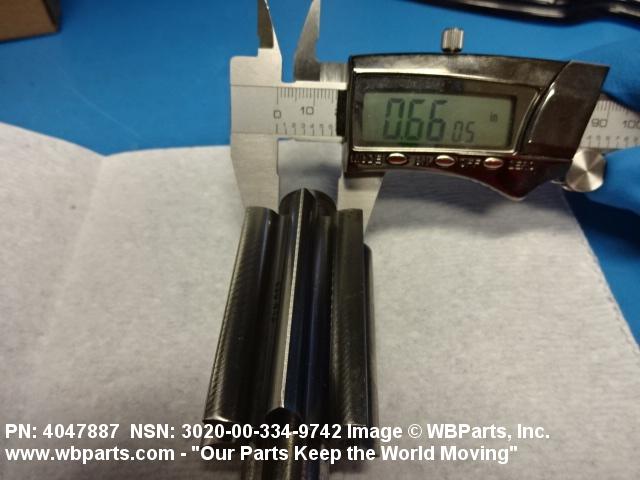

| HUB NOMINAL DIAMETER | 0.660 INCHES BOTH ENDS |
| BODY STYLE | 1 PLAIN, SOLID |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 4047887 |
Restrictions/Controls & Freight Information | NSN 3020-00-334-9742
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3020-00-334-9742
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
