NSN 3020-00-244-1098 923161, 92316-1, 00-244-1098
Product Details | FLAT PULLEY
3020-00-244-1098 A pulley with a straight or crowned face. The item may include belt aligning flange(s). Excludes PULLEY, CONE. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Part Alternates: 923161, 92316-1, 3020-00-244-1098, 00-244-1098, 3020002441098, 002441098
Mechanical Power Transmission Equipment | Gears, Pulleys, Sprockets, and Transmission Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-244-1098 | 08111 ( PULLEY, FLAT ) |
Drawings & Photos | NSN 3020-00-244-1098
Cross Reference | NSN 3020-00-244-1098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92316-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3020-00-244-1098
Technical Data | NSN 3020-00-244-1098
| Characteristic | Specifications |
|---|---|

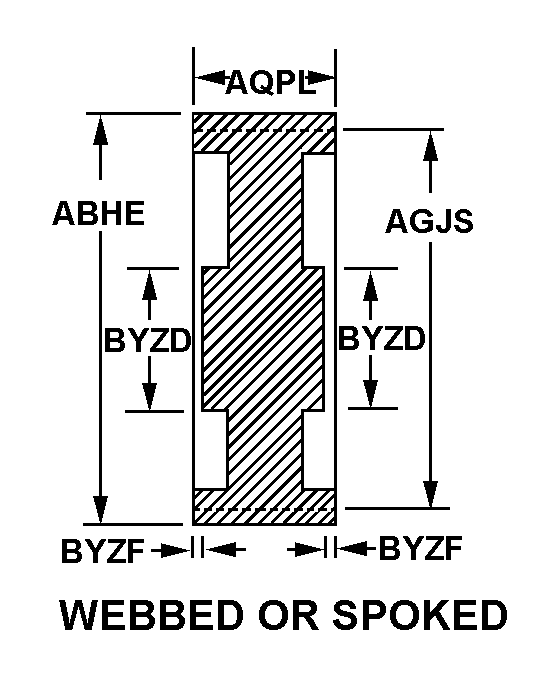

| STYLE DESIGNATOR | A5 WEBBED OR SPOKED |
| OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| FACE WIDTH | 1.000 INCHES NOMINAL |
| HUB END OUTSIDE DIAMETER AND LOCATION | 1.000 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.250 INCHES NOMINAL BOTH ENDS |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| CROWN FACE | NOT INCLUDED |
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| RIM TYPE | SOLID |
| FLANGE QUANTITY | 2 |
| FLANGE LOCATION | OUTSIDE |
| OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| FLANGE WIDTH | 0.156 INCHES NOMINAL |
| BORE FEATURE | INCLUDED |
| BEARINGS | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.312 INCHES NOMINAL |
| BORE LENGTH | 0.500 INCHES NOMINAL |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| III FSC APPLICATION DATA | SURFACE CONTROL,AIRCRAFT |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 92316-1 |
